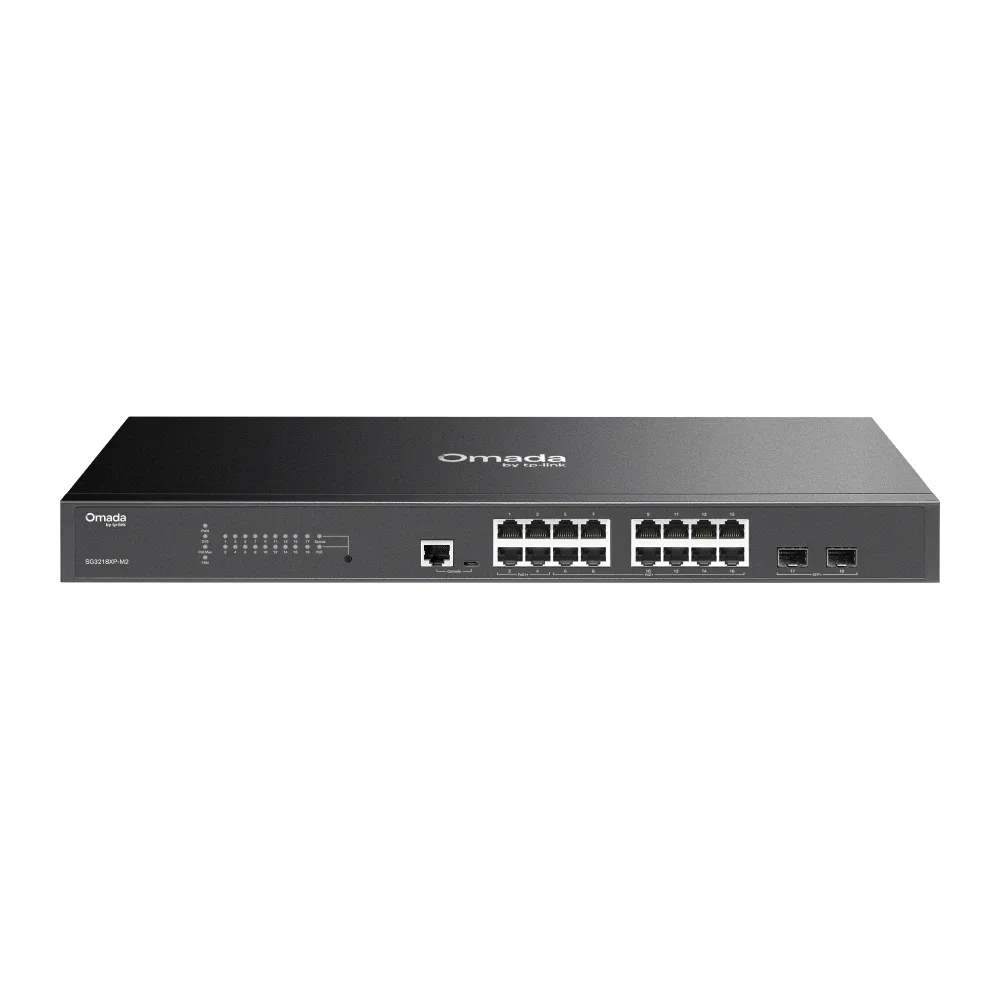

TP-Link Omada SG3218XP-M2 V1.6 - Switch - L2+ - Managed - 8 x 2.5GBase-T + 8 x 100/1000/2.5G (PoE+) + 2 x 10Gb Ethernet SFP+ (uplink) - rack-mountable - PoE+ (240 W)

Description

Manufacturer Code: SG3218XP-M2

Overview

TP-Link Omada SG3218XP-M2 V1.6 - Switch - L2+ - Managed - 8 x 2.5GBase-T + 8 x 100/1000/2.5G (PoE+) + 2 x 10Gb Ethernet SFP+ (uplink) - rack-mountable - PoE+ (240 W) is available through DCS Components. It sits within the Managed Switches category.

Key product details

• Switch
• L2+
• Managed
• 8 x 2.5GBase-T + 8 x 100/1000/2.5G (PoE+) + 2 x 10Gb Ethernet SFP+ (uplink)
• rack-mountable

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 4897098689752

Specifications

Management features

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
MIB support	MIB II (RFC1213), Interface MIB (RFC2233), Ethernet Interface MIB (RFC1643), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RMON MIB (RFC2819), RMON2 MIB (RFC2021), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIB

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
SFP+ module slots quantity	2
Console port	RJ-45/Micro-USB
Power connector	AC-in jack

Network

Networking standards	IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
10G support	Yes
Port mirroring	Yes
IP routing	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
Head-of-line (HOL) blocking	Yes
Ethernet LAN data rates	100,1000,2500 Mbit/s
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

Data transmission

Switching capacity	120 Gbit/s
Forwarding rate	89.28 Mpps
MAC address table	16000 entries
Static route	Yes
Number of static routes	48
Number of IP interfaces	32
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	12 MB

Security

DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	HTTPS, SSH, SSH-2, SSL/TLS
MAC address filtering	Yes
Static port security	Yes
SSH/SSL support	Yes
Loop protection	Yes
BPDU filtering/protection	Yes
IP-MAC-Port binding	Yes
Authentication	MAC-based authentication, Port-based authentication
Password protection	Yes
Authentication type	AAA, TACACS+
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)

Multicast features

Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Y

Protocols

Management protocols	SNMP v1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)	Yes

Design

Rack mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	Yes
Number of fans	2 fan(s)

Power

Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	299.4 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	240 W

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	1021.64 BTU/h

Weight & dimensions

Width	440 mm
Depth	180 mm
Height	44 mm

Packaging content

Cables included	AC
Quick start guide	Yes

Packaging data

Package type	Box

Sustainability

Sustainability compliance	Yes

Certificates

Compliance certificates	Federal Communications Commission (FCC), RoHS
Certification	CE, FCC, RoHS
