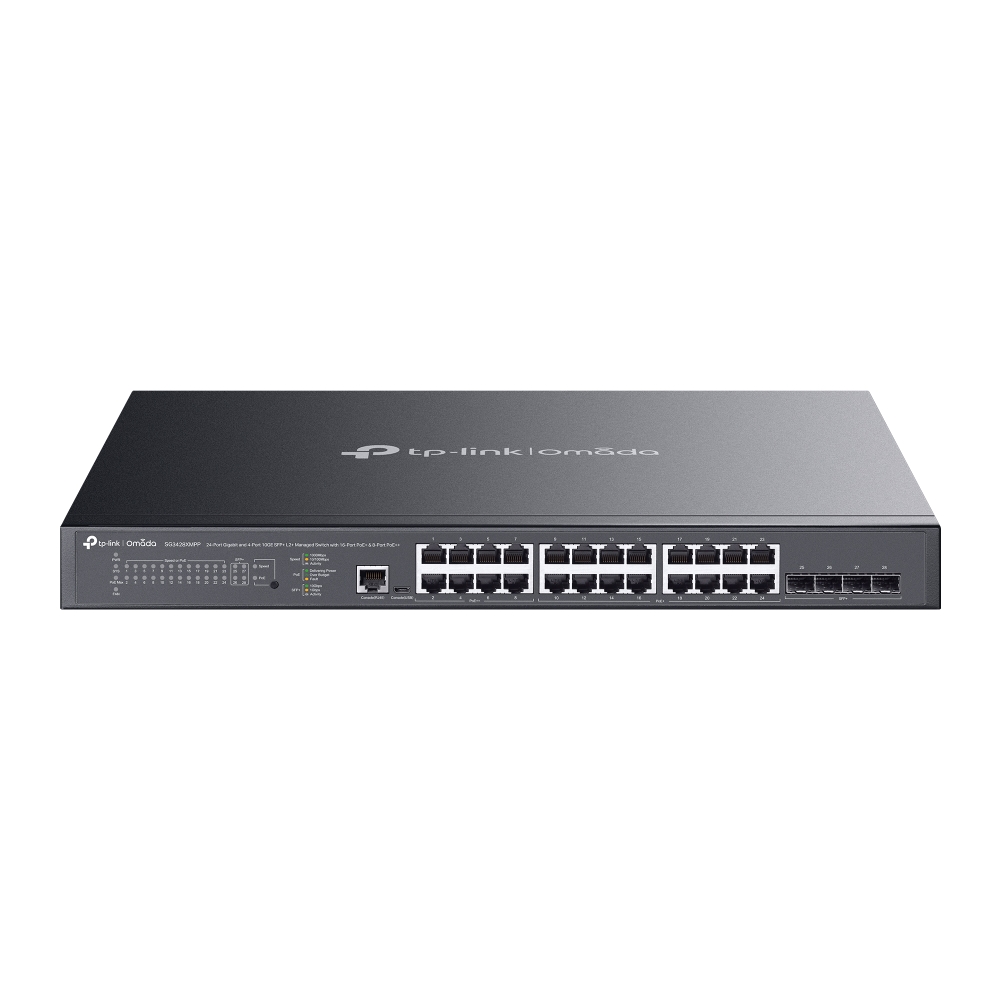

TP-Link Omada SG3428XMPP V1.8 - Switch - L2+ - Managed - 16 x 10/100/1000 (PoE+) + 8 x 10/100/1000 (PoE++) + 4 x 10Gb Ethernet SFP+ - rack-mountable - PoE++ (500 W)

Description

Manufacturer Code: SG3428XMPP

Overview

TP-Link Omada SG3428XMPP V1.8 - Switch - L2+ - Managed - 16 x 10/100/1000 (PoE+) + 8 x 10/100/1000 (PoE++) + 4 x 10Gb Ethernet SFP+ - rack-mountable - PoE++ (500 W) is available through DCS Components. It sits within the Managed Switches category.

Key product details

• Switch
• L2+
• Managed
• 16 x 10/100/1000 (PoE+) + 8 x 10/100/1000 (PoE++) + 4 x 10Gb Ethernet SFP+
• rack-mountable

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 8885020620863

Specifications

Management features

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
Console port	RJ-45/Micro-USB
Power connector	AC-in jack

Network

Networking standards	IEEE 802.3af, IEEE 802.3at
10G support	Yes
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
Head-of-line (HOL) blocking	Yes
VLAN support	Yes

Data transmission

Switching capacity	128 Gbit/s
Forwarding rate	95.23 Mpps
MAC address table	16000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	12 MB

Security

DHCP features	DHCP client, DHCP relay, DHCP server
Access Control List (ACL)	Yes
IGMP snooping	Yes
MAC address filtering	Yes
Static port security	Yes
SSH/SSL support	Yes
BPDU filtering/protection	Yes
IP-MAC-Port binding	Yes
Authentication	Auto VLAN, Guest VLAN

Multicast features

Multicast support	Yes

Design

Rack mounting	Yes
Form factor	1U
Product colour	Black
Reset button	Yes
LED indicators	Yes
Number of fans	3 fan(s)

Power

Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	486.2 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	16
Power over Ethernet 4PPoE (PoE++) ports quantity	8
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	500 W

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	1658.78 BTU/h

Weight & dimensions

Width	440 mm
Depth	330 mm
Height	44 mm

Packaging content

Cables included	AC
Quick start guide	Yes

Certificates

Certification	CE, FCC, RoHS
