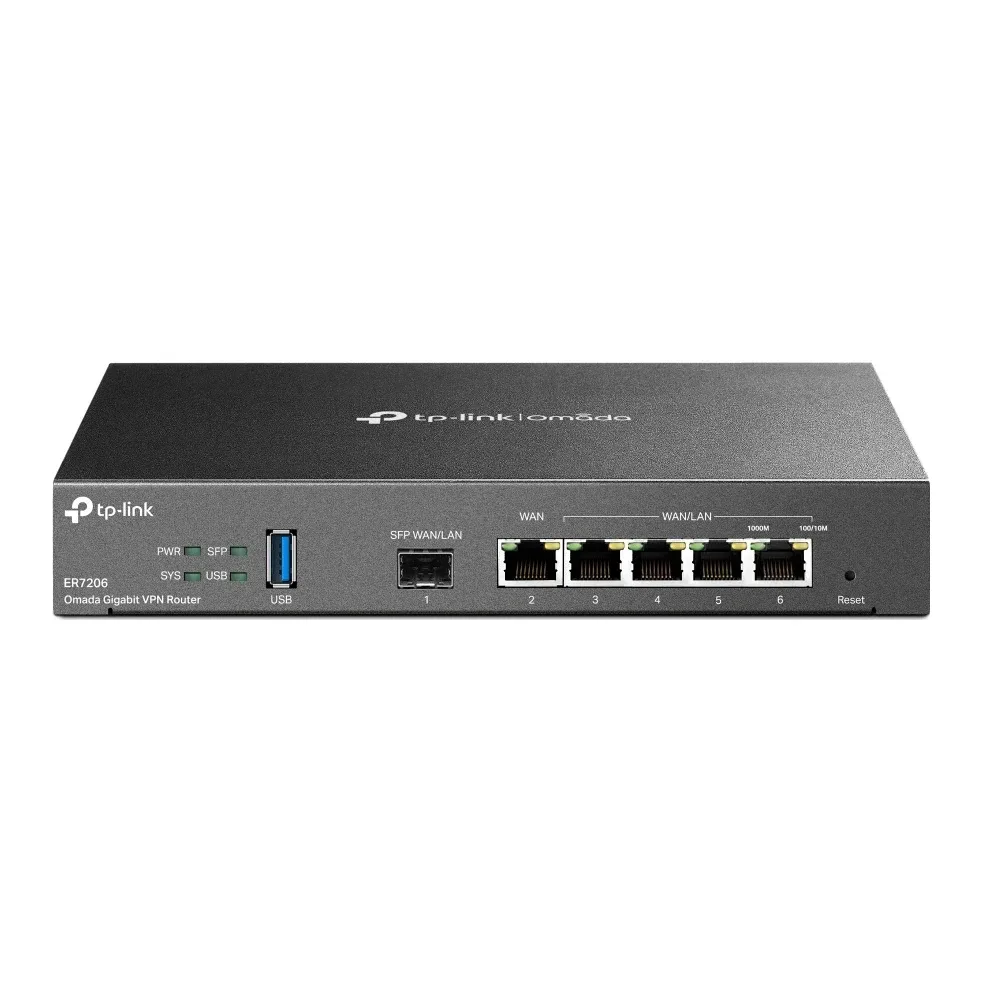

TP-Link Omada TL-ER7206 SafeStream Gigabit Multi-WAN VPN Router

Description

TP-Link TL-ER7206 SafeStream Gigabit Multi-WAN VPN Router

Up to Four WAN Gigabit Ports to Optimize Bandwidth Usage
One gigabit SFP WAN port, one gigabit RJ45 WAN port, and two freely interchangeable WAN/LAN ports allow the router to support up to four WAN ports to satisfy various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.

Highly Secure VPN
TL-ER7206 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. With a powerful hardware design, the router supports and manages up to 100 x LAN-to-LAN IPSec, 50 x OpenVPN, 50 x L2TP, and 50 x PPTP VPN connections. One-click auto IPSec VPN greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications traveling over the internet.

Integrated into Omada SDN
Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management
Cloud access and Omada app for ultra convenience and easy management.

Gigabit Ports
1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.

Up to 4 WAN Ports
1 gigabit SFP WAN port, 1 gigabit RJ45 WAN port, 2 gigabit WAN/LAN ports optimize bandwidth usage.

Highly Secure VPN
Supports up to 100 x LAN-to-LAN IPsec, 50 x OpenVPN, 50 x L2TP, and 50 x PPTP VPN connections.

Abundant Security Features
Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.

Specifications

HARDWARE FEATURES

Standards and Protocols
IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

Interface
1 Fixed Gigabit SFP WAN Port
1 Fixed Gigabit RJ45 WAN Port
2 Fixed Gigabit RJ45 LAN Ports
2 Changeable Gigabit RJ45 WAN/LAN Ports

Network Media
10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100O STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100O STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Button
Reset Button

Power Supply
100–240 V~50/60 Hz

Flash
SPI 4MB + NAND 128MB

DRAM
512MB

LED
PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act)

Dimensions ( W x D x H )
226 mm x 131 mm x 35 mm

PERFORMANCE

Concurrent Session
150,000

IPsec VPN Throughput
291.6 Mbps

BASIC FUNCTIONS

WAN Connection Type
Static/Dynamic IP
PPPoE
PPTP
L2TP

MAC Clone
Modify WAN/LAN MAC Address

DHCP
DHCP Server
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP

IPv6
Developing

VLAN
802.1Q VLAN

IPTV
IGMP v2/v3 Proxy

ADVANCED FUNCTIONS

ACL
IP/Port/Protocol/Domain Name Filtering

Advanced Routing
Static Routing
Policy Routing

Bandwidth Control
IP/Port-based Bandwidth Control
Guarantee & Limited Bandwidth

Load Balance
Intelligent Load Balance
Application Optimized Routing
Link Backup (Timing, Failover)
Online Detection

NAT
One-to-One NAT
Multi-Net NAT
Virtual Server
Port Triggering
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG, UPnP

Security
SPI Firewall
VPN Passthrough
FTP/H.323/PPTP/SIP/IPsec ALG
DoS Defence, Ping of Death
Local Management

Session Limit
IP-based Session Limit

VPN

IPsec VPN
100 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IKEv1/v2
MD5, SHA1 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)

PPTP VPN
PPTP VPN Server
10 PPTP VPN Clients
50 Tunnels
PPTP with MPPE Encryption

L2TP VPN
L2TP VPN Server
10 L2TP VPN Clients
50 Tunnels
L2TP over IPSec

OpenVPN
OpenVPN Server
10 OpenVPN Clients
50 OpenVPN Tunnels

SECURITY

Filtering
WEB Group Filtering
URL Filtering
Web Security

ARP Inspection
Sending GARP Packets
ARP Scanning
IP-MAC Binding

Attack Defense
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN

Access Control
Source/Destination IP Based Access Control

AUTHENTICATION

Web Authentication
No Authentication
Simple Password
Hotspot(Local User / Voucher / SMS / Radius)
External Radius Sever
External Portal Sever
Facebook

MANAGEMENT

Omada App
Yes

Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller

Cloud Access
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Service
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)

Maintenance
Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3
Diagnostics (Ping & Traceroute)
NTP Synchronize
Syslog Support

Management Features
Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration
ZTP (Zero-Touch Provisioning)

OTHERS

CertificationCE, FCC, RoHS

Package Contents
TL-ER7206
Power Cord
Quick Installation Guide

System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

Environment
Operating Temperature: 0–40 (32–104 )
Storage Temperature: -40–70 (-40–158 )
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Key Features

• Type: Router
• Speed: Gigabit
• PoE: Yes
