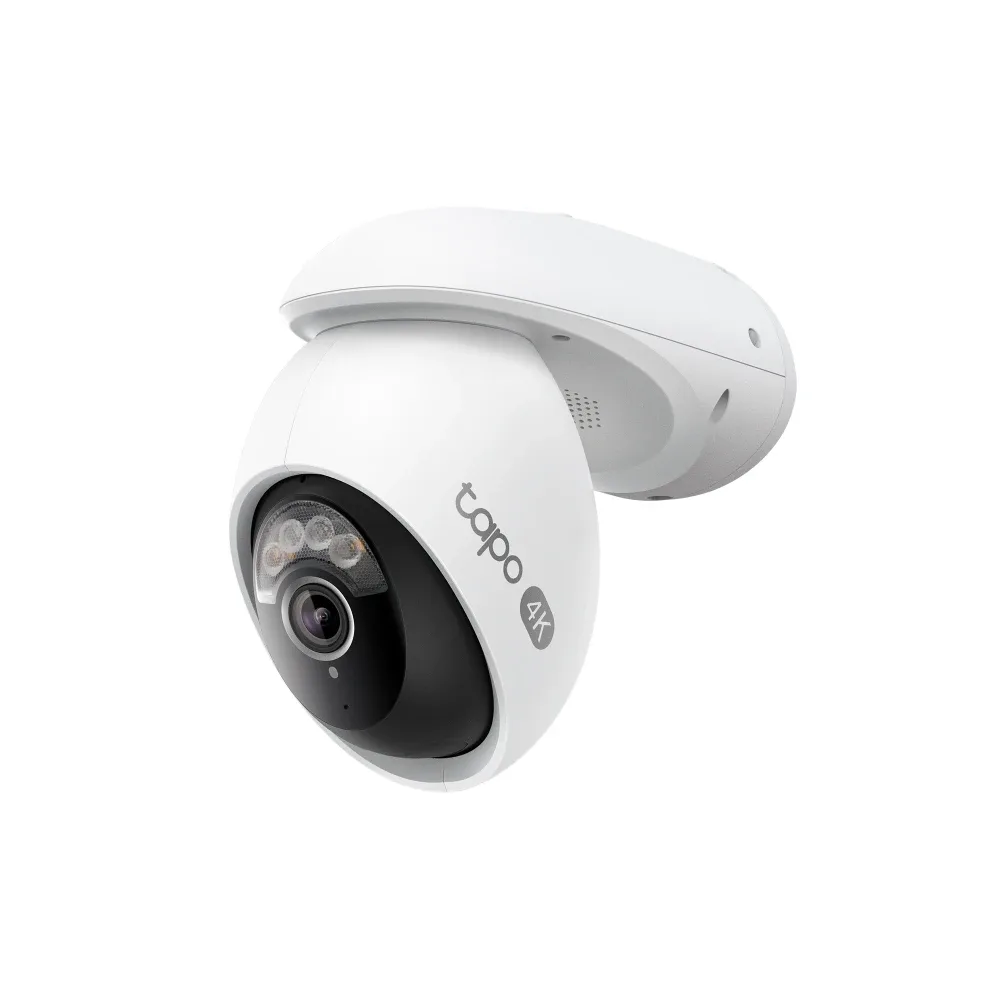

TP-Link Tapo C560WS Outdoor Pan/Tilt Security Wi-Fi Camera

Description

4K Ultimate Clarity
The camera features 4K 8MP resolution for superior clarity with upgraded image sensor, processor and lens

Local Facial Recognition
The camera boasts free and powerful Al that recognizes and tags strangers, family, and friends for easy identification.

Wi-Fi 6 Dual-Band Connection
Connect the camera to a Wi-Fi 6 router and enjoy improved speed, greater stability.

Starlight Color Night Vision
Capture vibrant images in low light. Enhance security with an F1.6 lens, starlight sensor, and spotlights.

Free Person/Pet/Vehicle Detection
Using Al technology, the camera provides alerts as it identifies people, pets, and vehicles, reducing false alerts and unnecessary notifications.

Flexible Storage Options
Choose from local microSD storage up to 512GB or the secure Tapo Care‡ cloud service for additional peace of mind.

IP66 Weatherproof
Offers excellent waterproof and dustproof performance for outdoor scenarios.

4K: Unmatched Clarity, Extended Range
Tapo 4K cameras deliver sharper, more detailed live views, making them perfect for capturing finer details like license plates, human faces and moving objects.

Accurate Facial Recognition, Easy Identification, Local AI Processing
The camera boasts free and powerful Al that recognizes and tags strangers, family, and friends for easy identification, reducing overall notifications to the ones that matter. All facial data is processed locally without cloud uploads, ensuring privacy and security.

Efficient Video Management, Insightful Recognition Report

360° Protection Powered by AI – No Subscription Required

Upgraded Panoramic Patrol Mode
Set a custom schedule for the camera to automatically scan a full 360° and record or define specific viewpoints that it will visit at designated times.

Vibrant & Detailed Night Vision
Capture colorful details even in darkness with spotlights and a starlight sensor. Tapo C560WS also offers a stealthy IR black and white mode and a smart mode that automatically switches to color when a person is detected.

Wi-Fi 6 Dual-Band Connectivity: Faster & More Flexible
Connect the camera to a Wi-Fi 6 router and enjoy improved speed, greater stability, and reduced congestion in heavy bandwidth scenarios.The 5 GHz connection? offers faster speed, while 2.4 GHz provides longer distance. Ethernet networking is also supported.

Solid Defense System with Custom Alarms
Ward off intruders with sound and light alarms you can personalize: record custom audio and set your preferred spotlight brightness.

Specifications

Image Sensor
1/27” Progressive Scan CMOS Starlight Sensor

Lens
Focal Length: 4 mm ± 5%
Aperture: F1.6 ± 5%
Field of View: 105° (Diagonal), 88°(Horizontal), 45°(Vertical)

Night Vision
850 nm IR LED
Starlight Color Night Vision

Lighting
2x Built-in Spotlights

Interface and Button
1x Ethernet Port
1x RESET Button
1x MicroSD Card Slot (Up to 512GB)

Pan/Tilt Range
Pan Mechanical Range: 326° (360° Pan Coverage)
Tilt Mechanical Range: 53° (98° Tilt Coverage)

Maximum Resolution
4K 8MP (3840 x 2160 px)

Frame Rate
25 fps

Digital Zoom
18x

Video Compression
H.264

Live View
Yes

Image Enhancement
3DNR
WDR

Audio Input and Output
Built-in Microphone and Speaker

Audio Communication
Two-Way Audio with Noise Cancellation

Siren Volume
99 dB (Level measured at 4-inch/10-cm distance)

Local Storage
MicroSD Card Slot on Camera (Up to 512 GB)

Cloud Storage
Tapo Care Cloud Storage Services (Subscription required)

AI Detection
Motion Detection
Person Detection
Pet Detection
Vehicle Detection

Activity Zones
Yes

Output Notification
System Notification
System Notification with Snapshot (Tapo Care Services)

Network Connectivity
Connect via Wi-Fi or Ethernet

Wireless Connectivity
IEEE 802.11a/b/g/n/ac/ax, 2.4 GHz /5 GHz

Ethernet Port
Yes

RTSP
Yes

ONVIF
Yes

Security
SSL/TLS,AES

Power Source
12V DC Power Adapter

Input Voltage
100-240 V, 50/60 Hz

Output Voltage
12 V, 1 A (DC Power)

Smart Integration
Google Assistant, Amazon Alexa

Weather Resistance
IP66

System Requirements
Tapo App: iOS 12.0+ and Android 5.0+ operating systems.

Mounting Options
Ceiling-Mounted
Wall-Mounted
Pole-Mounted (Pole-Mounting loops required but not included)

Dimensions ( W x D x H )
147.4 x 74.7 x 165.4mm(Mounting Bracket Included)
147.4 x 74.7 x 157.4mm(Mounting Bracket Excluded)

Package Content
Tapo C560WS Camera x 1
DC Power Adapter x 1
Mounting Template Sticker x 1
Mounting Bracket x 1
Mounting Anchors and Screws
Bracket Screws x 2
Waterproof Seal x 1
Waterproof Cable Attachments x 1
Quick Start Guide

Key Features

• Bullet/Dome: Dome
• SD Card Slot: Yes
• Resolution: 8mp
• Lens Size: 4mm

Category: Networking

Manufacturer Code: Tapo C560WS

EAN: 1210002602686

Weight (KG): 0.9

VAT Rate: 20%
