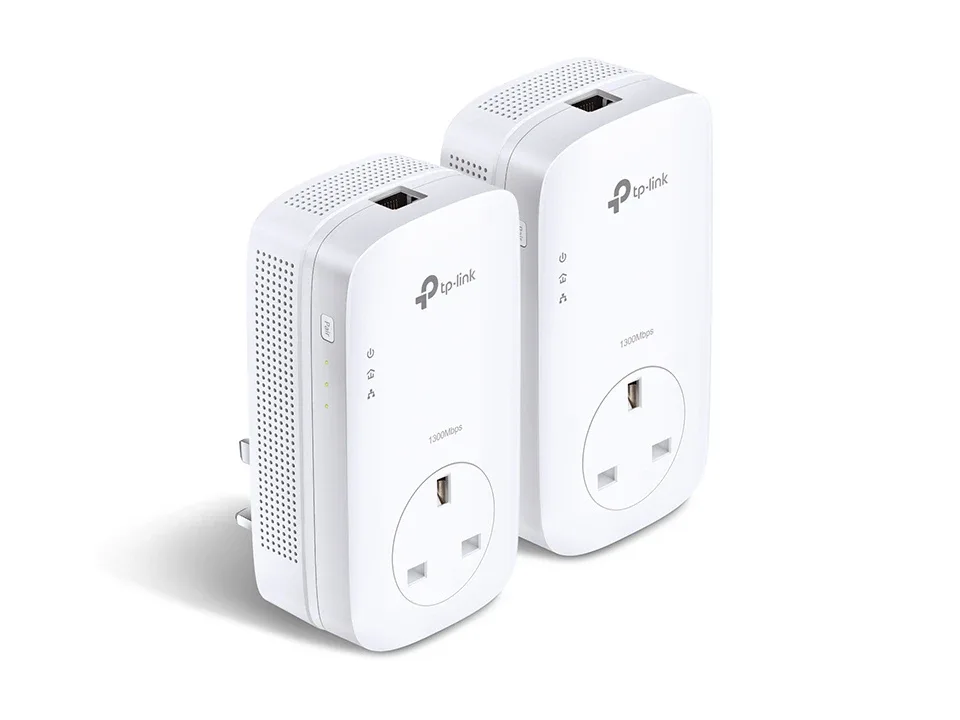

TP-Link TL-PA8010P KIT AV1300 Passthrough Powerline Kit

Description

HomePlug AV2 standard compliant, high-speed data transfer rates of up to 1300Mbps, supports all your online needs
Line-Neutral/Line-Ground 2x2 MIMO with Beamforming ensures larger range, higher transmission capacity and more stable connections
Gigabit port provides secure wired networks for desktops, smart TVs or games consoles
Integrated power socket ensures no power outlet goes to waste
Plug and play, no configuration required
Patented Power-Saving Mode automatically reduces power consumption by up to 85%

Upgraded 1300Mbps!
Perfect for Bandwidth
Demanding Activities
Advanced HomePlug AV2 technology means the TL-PA8010P KIT supports 2x2 MIMO* with beamforming, so users benefit from ultra-fast data transfer speeds of up to 1300Mbps. Perfect for bandwidth demanding activities like streaming Ultra HD video to multiple devices simultaneously, online gaming and large file transfers.

Line-Neutral / Line-Ground
Larger Range
MIMO Technology with Beamforming maximizes the performance on the independent streams, which improves coverage throughout the home, particularly for previously hard to reach outlets.

Gigabit Port for Ultra-fast Data Transfer Speed
With one Gigabit Ethernet port, TL-PA8010P KIT allows users to connect a bandwidth intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming. This makes the TL-PA8010P KIT the perfect home entertainment companion.

Plug and Play, No Configuration Required
Connect a powerline adapter to the router; plug another powerline adapter into a wall socket in another room, and connect it to your Internet enabled device via Ethernet - and you’re done!

Extra Power Socket for Additional Devices
The integrated power socket, with power output of up to 13A, means the powerline can be used like a traditional electrical socket. Simply plug in your device or extension lead as though it were a normal wall socket. The built-in noise filter also helps to prevent electrical signal noise from affecting Powerline performance.

Power Save by Up to 85%
TL-PA8010P KIT is a new-generation of Powerline adapter. Its sophisticated Power-Saving mode automatically switches from its regular “Working” mode to “Power-Saving” mode reducing energy consumption by up to 85%.

Specifications

Standards and Protocols
HomePlug AV2, HomePlug AV, IEEE1901, IEEE802.3, IEEE802.3u, IEEE802.3ab

Interface
1 x Gigabit Ethernet Port, Power Socket

Button
Pair Button

Max. Power Consumption
Maximum: 6W (220V/50Hz)
Typical: 6W (220V/50Hz)
Standby: 0.5W (220V/50Hz)

LED
PWR, PLC, ETH

Dimensions (W x D x H)
5.2 x 2.8 x 1.7 in. (131 x 72 x 42 mm)

Range
300 Meters over electrical circuit

Power Output to Integrated Socket
13A

Modulation Technology
OFDM (PLC)

Encryption
Powerline Security:
128-bit AES

Certification
CE, RoHS

System Requirements
Windows 2000/XP/2003/Vista, Windows 7/8/8.1, Mac, Linux

Package Content
Powerline Ethernet Adapter
6.5 ft. (2 m) Ethernet cable (RJ45)
Quick Installation Guide

Key Features

• Pack Size: Twin Pack
• Speed: 1300Mbps
• Pass-Through: Yes

Category: Networking

Manufacturer Code: TL-PA8010P KIT

EAN: 1210002614443

Weight (KG): 0.65

VAT Rate: 20%
