Manufacturer Code: SM321A
Overview

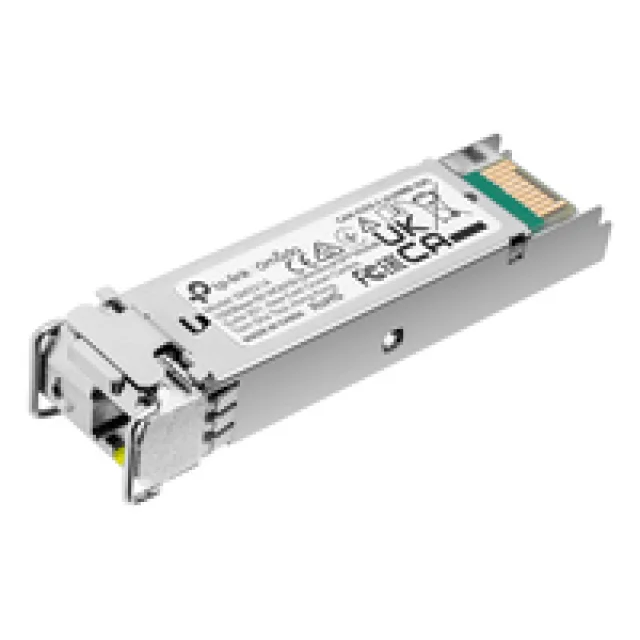

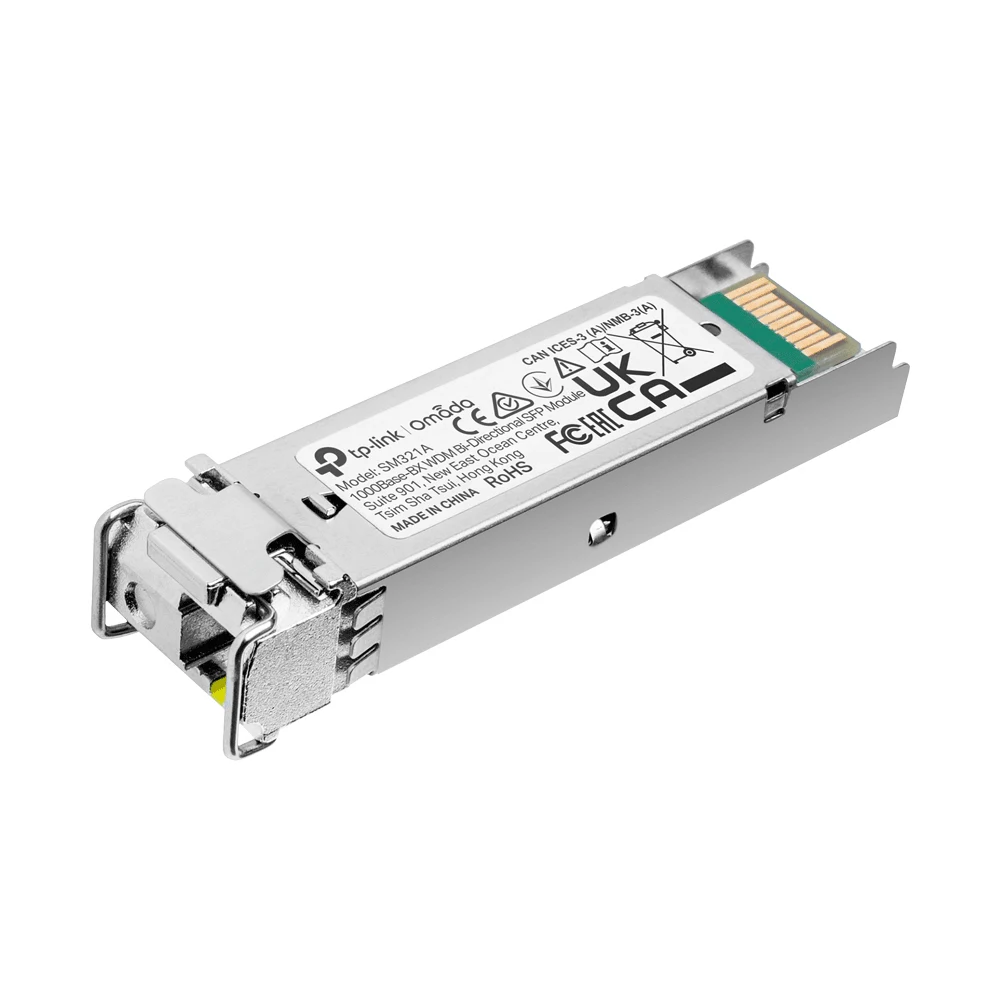

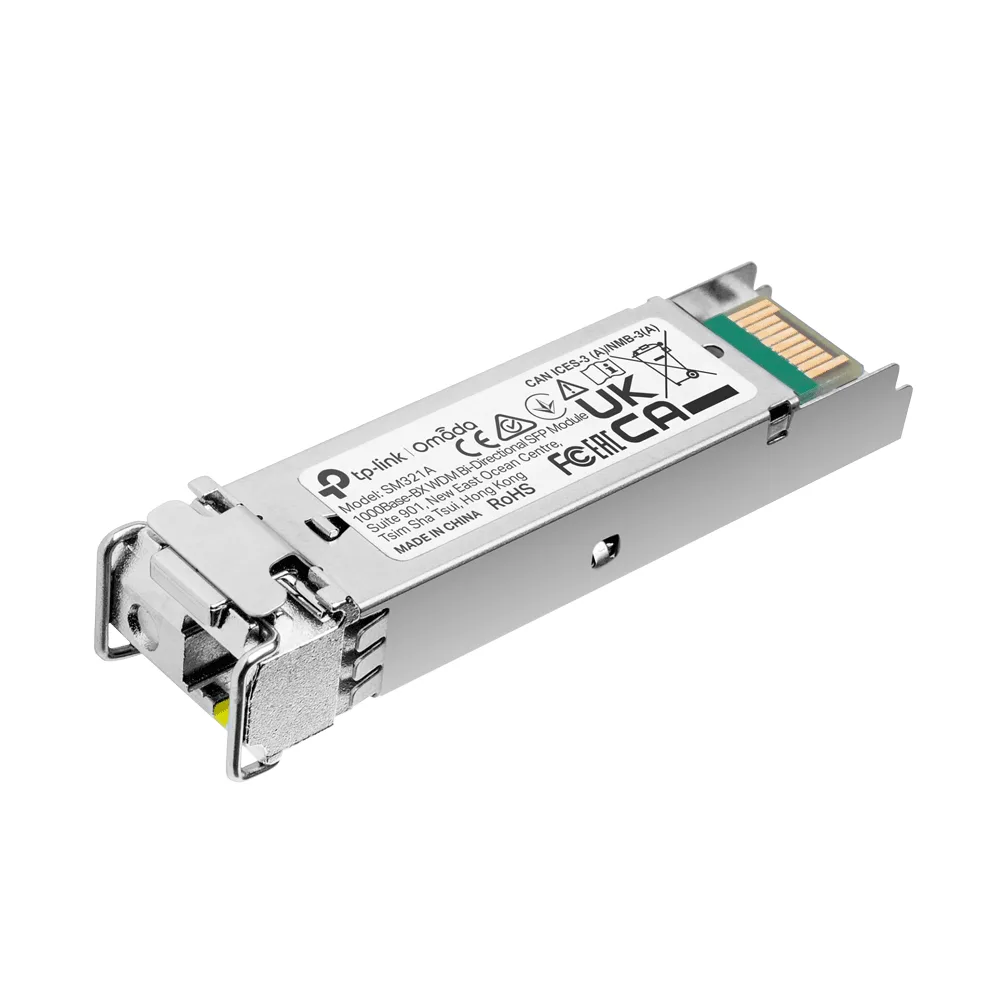

TP-Link TL-SM321A V3 - SFP (mini-GBIC) transceiver module - 1GbE - 1000Base-BX - LC/UPC single-mode - up to 20 km - 1310 (RX) / 1550 (TX) nm is available through DCS Components. It sits within the Switch Transceivers (GBIC/SFP) category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 1210002619264
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 20000 m |
| Tx wavelength (max) | 1550 nm |
| Rx wavelength (max) | 1310 nm |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Product colour | Silver |
|---|---|
| Hot-swap | Yes |
| Input voltage | 3.3 V |
|---|
| Certification | FCC, CE |
|---|
| Minimum operating temperature | 0 °C |
|---|---|
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 55.4 mm |
|---|---|
| Depth | 14.6 mm |
| Height | 12.9 mm |
| Quantity per pack | 1 pc(s) |
|---|
| User guide | Yes |
|---|---|
| Package width | 38 mm |
| Package depth | 207 mm |
| Package height | 38 mm |
| Package weight | 110 g |
