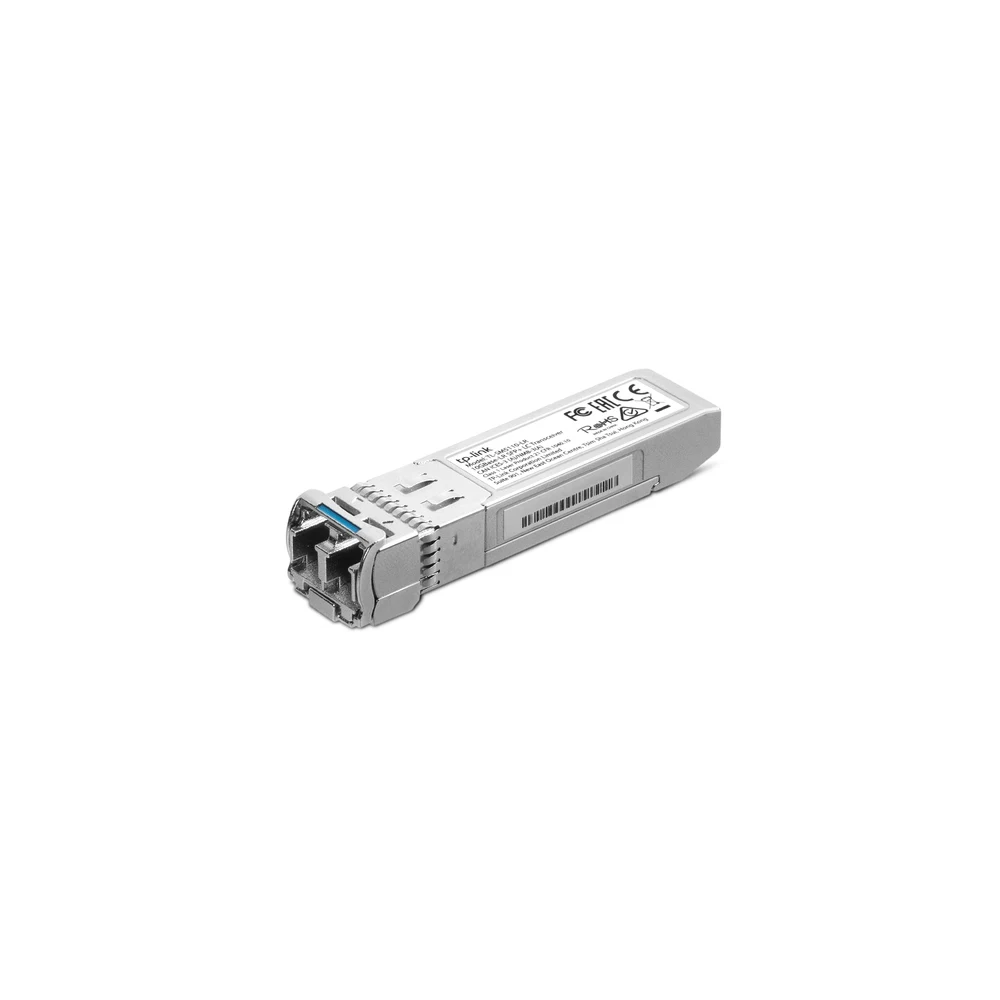

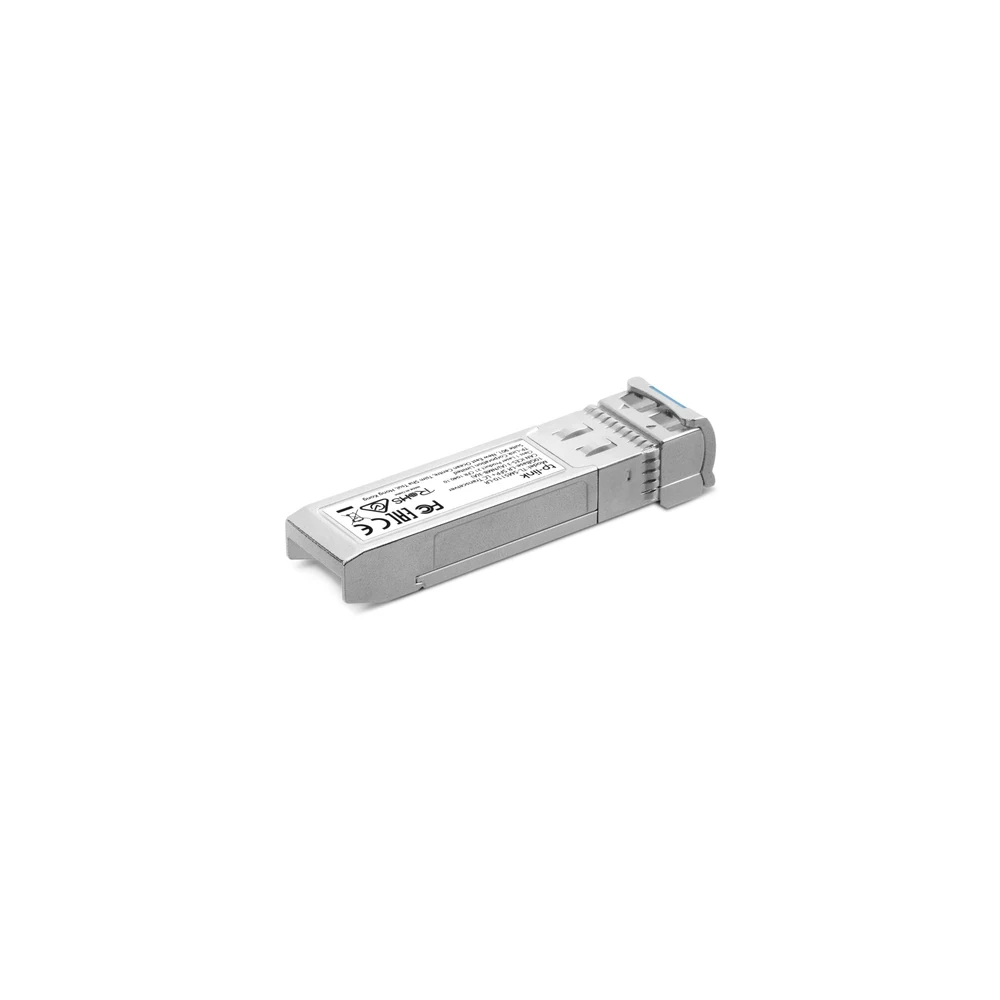

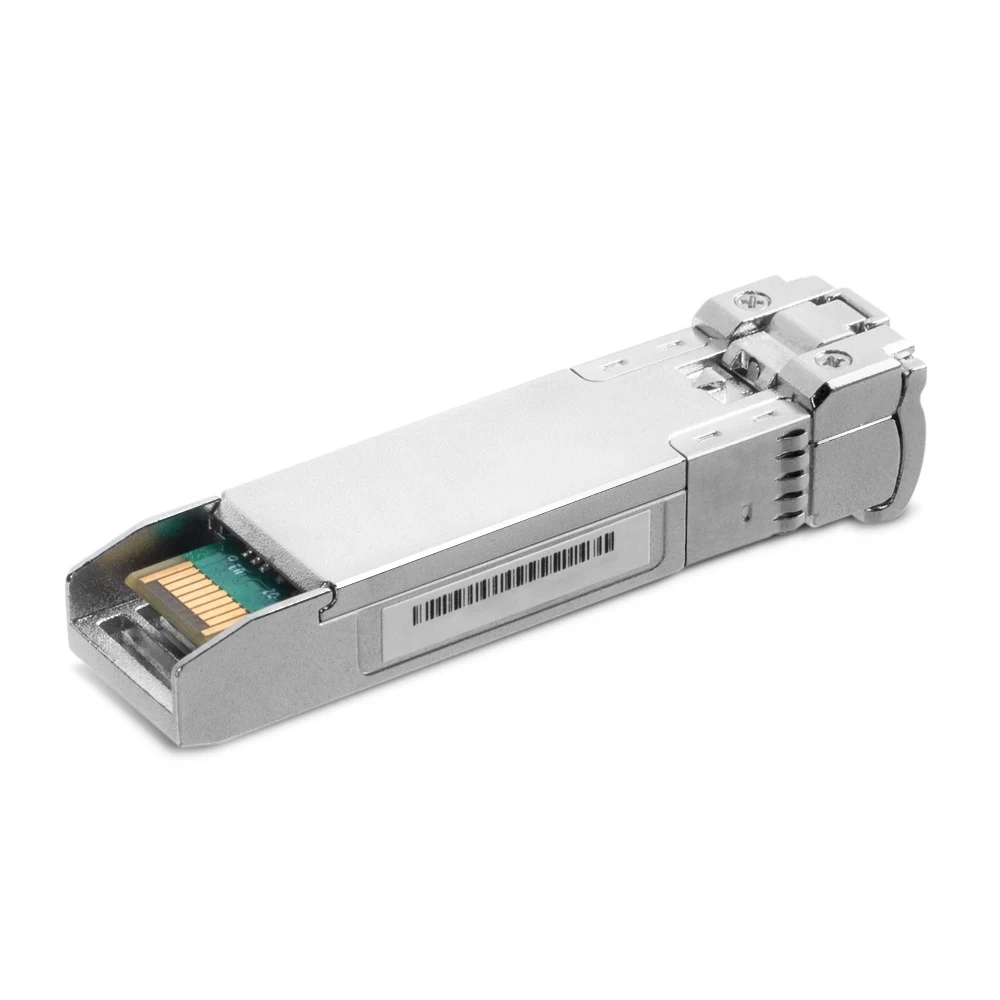

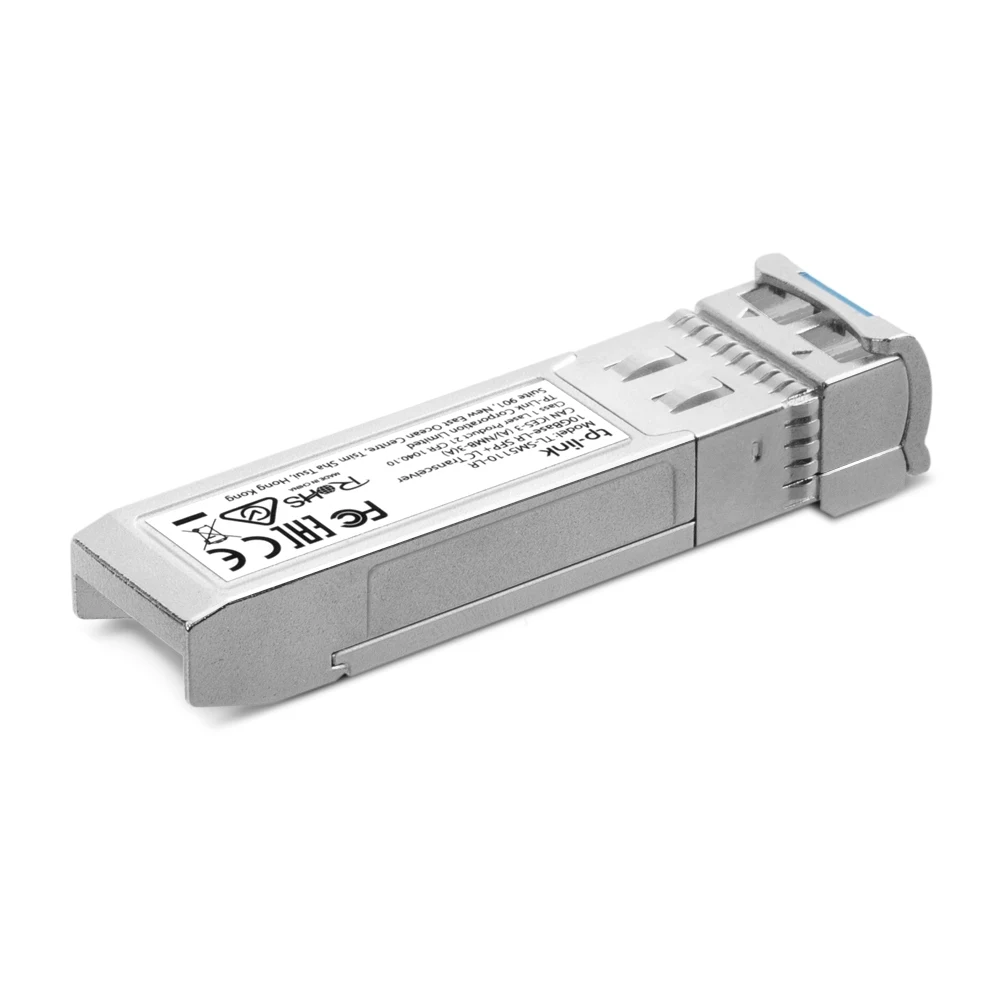

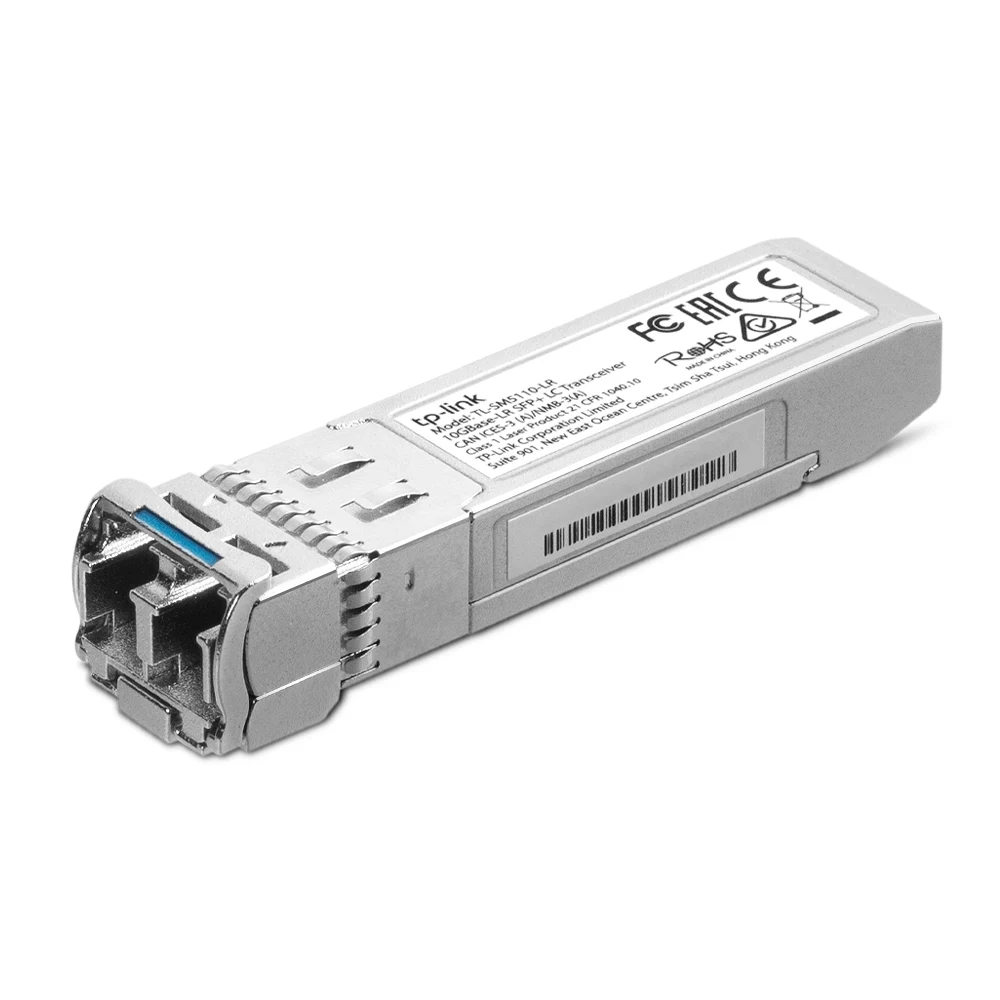

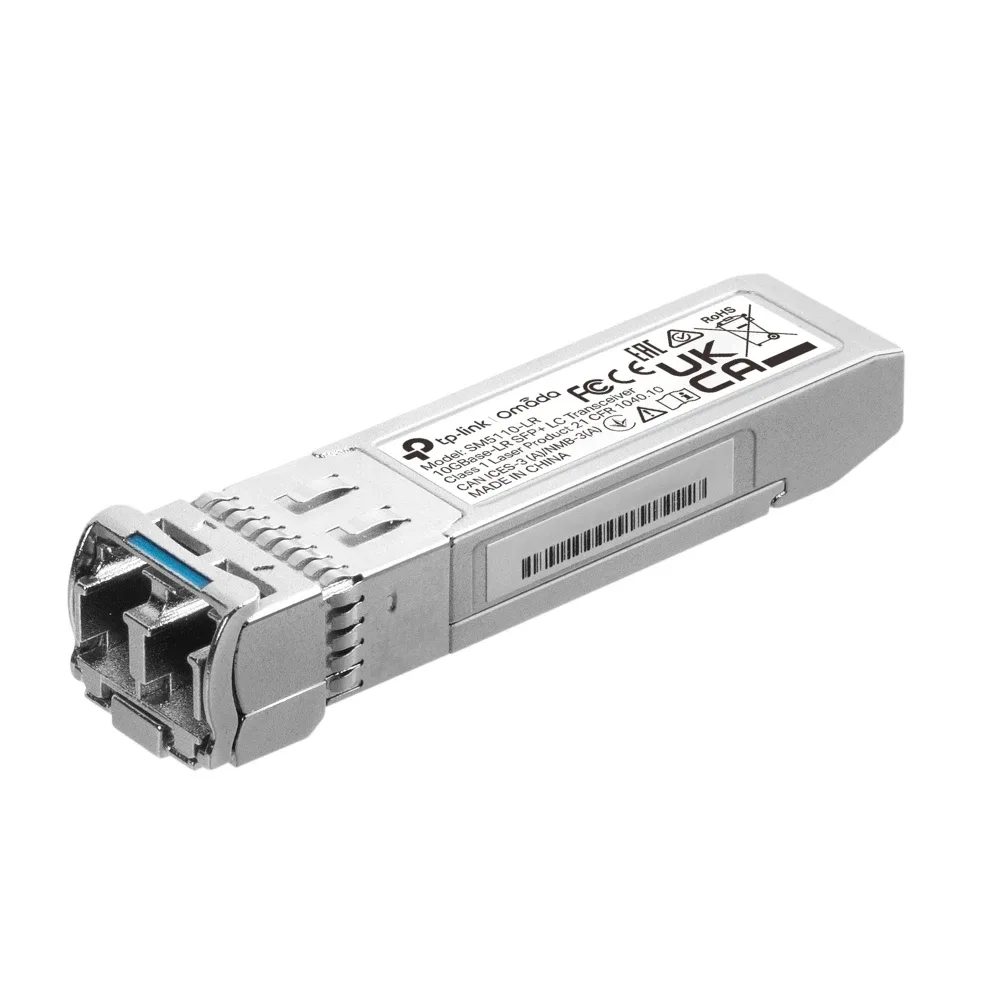

TP-Link TL-SM5110-LR V1 - SFP+ transceiver module - 10GbE - 10GBase-LR - LC single-mode - up to 10 km - 1310 nm - for JetStream TL-SG3428X, TL-SG3428XMP, TL-SG3452XP V1

Specifications

Performance

SFP transceiver type	Fiber optic
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Single-mode fiber (SMF) supported	Yes
Multi-mode fiber (MMF) supported	No
Fiber optic connector	LC
Fiber cable diameters supported (core/cladding)	9/125 µm
SFP transceiver standard	LR
Maximum transfer distance	10000 m
Wavelength	1310 nm
Networking standards	IEEE 802.3ae
Duplex system	Full
Digital Diagnostics Monitoring (DDM)	Yes

Features

Hot-Plug support	Yes
Hot-swap	Yes
Brand compatibility	TP-Link
Compatible products	Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.

Power

Input voltage	3.3 V

Certificates

Certification	FCC, CE

Operational conditions

Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Width	56.7 mm
Depth	13.9 mm
Height	10.3 mm

Packaging content

Quantity per pack	1 pc(s)

Packaging data

Package width	81.5 mm
Package depth	122.5 mm
Package height	38.5 mm
Package weight	60 g

Logistics data

Harmonized System (HS) code	85369010
