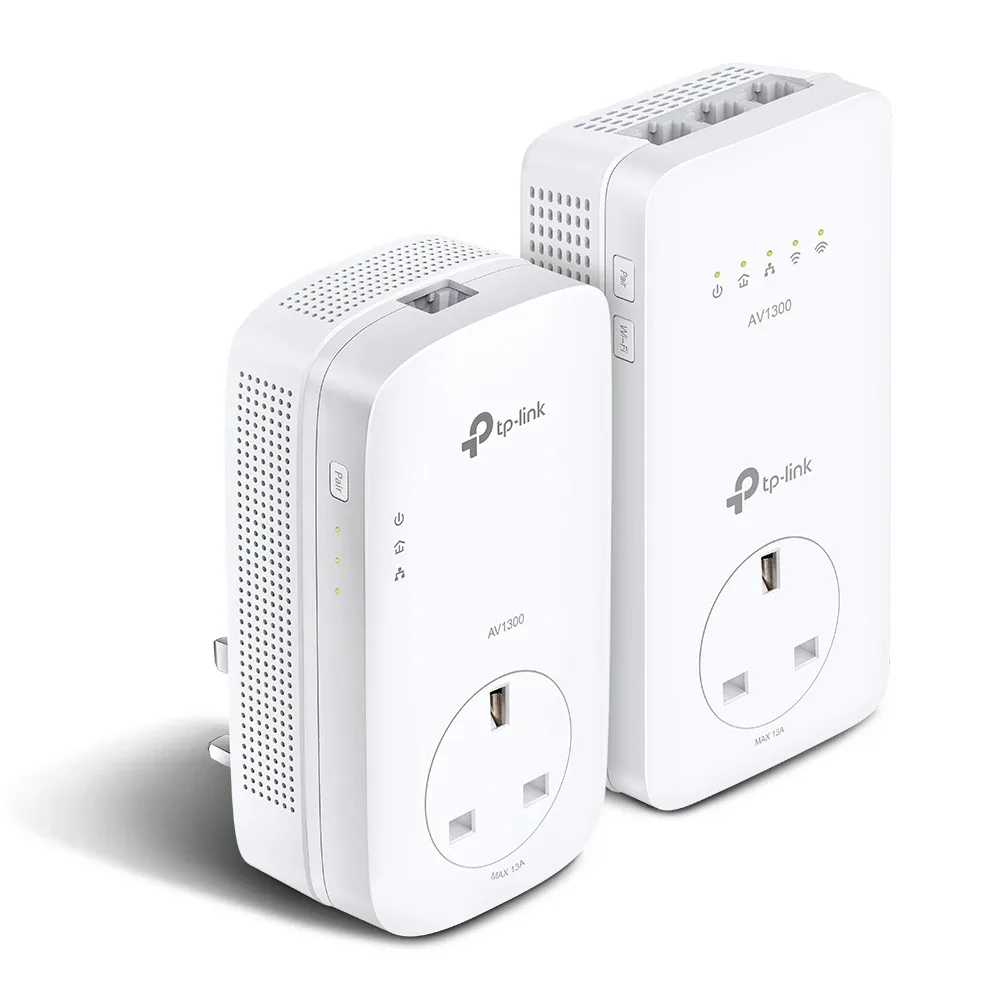

TP-Link TL-WPA8631P KIT AV1300 Gigabit Passthrough Powerline ac Wi-Fi Kit

Description

HomePlug AV2 Standard - Provides ultra-fast powerline transfer speeds of up to 1300 Mbps
AC1200 Dual-Band Wi-Fi - Extends ultra-fast dual-band Wi-Fi with speeds of up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz
EasyMesh-Compatible - Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage
2 x 2 MIMO - Establishes multiple simultaneous connections for you to enjoy higher powerline speeds and greater stability
One-Touch Wi-Fi Configuration - One press of the Wi-Fi button copies the network name and password from your router. Any setting changes will be automatically applied to the entire Powerline network
Wi-Fi Auto-Sync - Add additional extenders to your powerline network by pair button, uniformly sync settings such as SSID, password, Wi-Fi Schedule and LED Schedule for all network devices
Plug and Play - Set up your powerline network and start enjoying fast, seamless wired/wireless connections in minutes
Extra Power Socket - Get power from the outlet for your other devices with the integrated power socket
3 x Gigabit Ports - Provide secure wired networks for desktops, smart TVs or games consoles

Flexibly Create Whole Home Mesh WiFi
If you have any dead zones at home, just add another EasyMesh-compatible device to further form your whole home mesh WiFi. No more searching for a stable connection.

2x2 MIMO Technology for Efficient Transmissions
More Stable Connections
2x2 MIMO is like adding extra lanes to a highway. It establishes multiple simultaneous connections for you to enjoy higher speeds and greater stability.

Enhanced Long-Distance Performance
2x2 MIMO with Beamforming technology also offers the benefit of improved coverage throughout the home, particularly for previously hard-to-reach outlets.

Plug and Play in Seconds!
Plug TL-PA8010P in the wall and connect it to the router. Then plug TL-WPA8631P into any desired power socket.
That’s it. You’re done!

Don’t Lose an Outlet
The passthrough powerline kit can be used like a traditional electrical socket, ensuring no power socket goes to waste. The built-in noise filter helps prevent electrical signal noise from affecting powerline performance.

More Gigabit Ethernet Ports, More Devices
Equipped with 3x gigabit Ethernet ports, the kit provides wired connections for 4K video and IPTV streaming, lag-free gaming, and more.

Powerline Management on Your Smartphone
Manage your powerline WiFi through tpPLC app from your smartphone (Android, iOS), or download new tpPLC Utility on PCs to manage the powerline network.

View real-time powerline speed
LED control (also controlled by LED On/Off button)
Guest network

Specification

Transmission Speeds
Powerline: up to 1300 Mbps
Ethernet: 10/100/1000 Mbps

Transmission Distance
Up to 300 meters/1000 feet over existing electrical wiring

Standards and Protocols
HomePlug AV2, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b/g/n (2.4 GHz), IEEE 802.11a/n/ac (5 GHz)

Compatibility
Compatible with all HomePlug AV & HomePlug AV2 standard powerline adapters

Interface
3 Gigabit Ethernet Ports, 1 Power Socket

Button
Pair, LED On/O?, Wi-Fi, Reset

Max. Power Consumption
TL-WPA8631P: Maximum: 13W, Typical: 11W
TL-PA8010P: Maximum: 4.9W, Typical: 4.6W

LED
Power, Powerline, Ethernet, Wi-Fi (2.4 GHz), Wi-Fi (5 GHz)

Dimensions (W x D x H)
TL-WPA8631P: 3.0 x 1.7 x 6.0 in. (75 x 42 x 152 mm)
TL-PA8010P: 2.8 x 1.7 x 5.2 in. (72 x 42 x 131 mm)

Range
Up to 300 meters/1000 feet over existing electrical wiring

Wireless Standards
TL-WPA8631P: IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz
TL-PA8010P: N/A

Frequency
TL-WPA8631P: 2.4 GHz and 5 GHz
TL-PA8010P: N/A

Signal Rate
TL-WPA8631P: 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
TL-PA8010P: N/A

Mesh Technology
EasyMesh-Compatible
Without replacing your existing devices or buying a whole new WiFi ecosystem, EasyMesh helps you create a more flexible network that covers your entire home with EasyMesh-compatible products.

Quality of Service
ToS
Supports up to 4-level type QoS
Support up to 8-level VLAN priority field

Security
Wireless: WPA-PSK/WPA2-PSK, WEP Encryptions,
Powerline: 128-bit AES Encryption

Management Features
TP-Link tpPLC App, or download new tpPLC Utility on PCs: www.tp-link.com/support/download

Modulation Technology
OFDM

IGMP
IGMP v1/v2/v3

OneMesh
OneMesh Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.

Certification
CE, RoHS

System Requirements
Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux
System Requirements for tpPLC Utility:
Windows 10/8.1/8/7/Vista/XP and Mac OS X (10.7 or later)

Package Content
AV1300 Gigabit Passthrough Powerline ac Wi-Fi KIT:
1x TL-WPA8631P, 1x TL-PA8010P;
2x Ethernet Cables;
1x Quick Installation Guide

Key Features

• Pack Size: Twin Pack
• Speed: 1300Mbps
• Pass-Through: Yes
