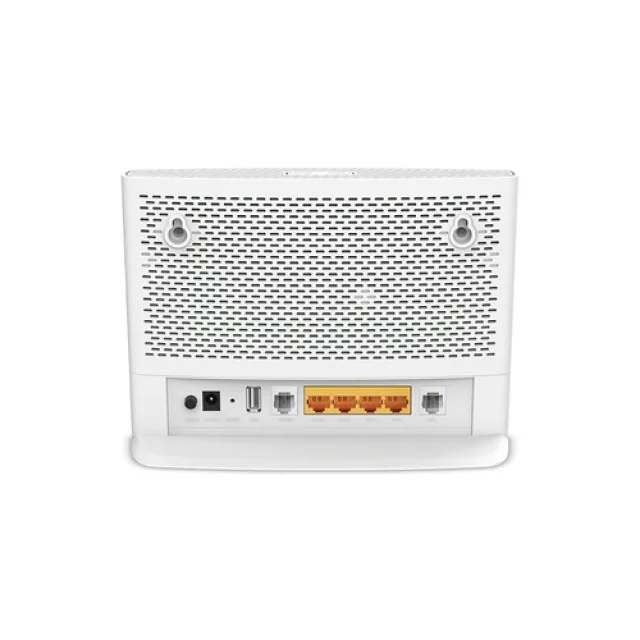

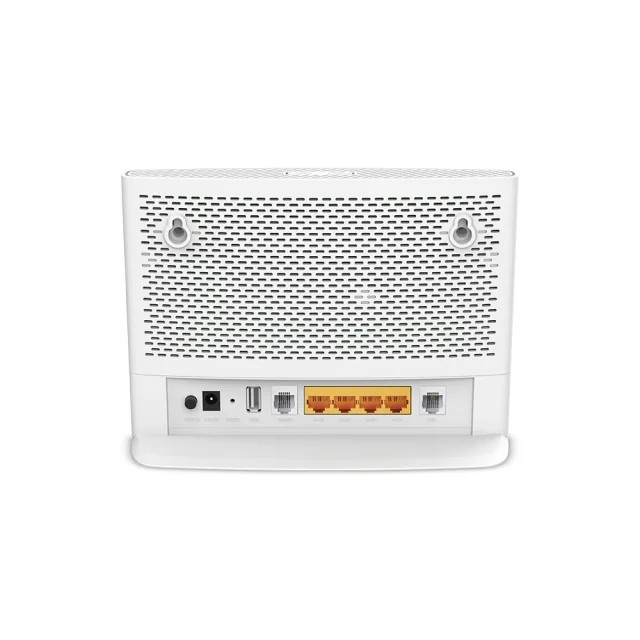

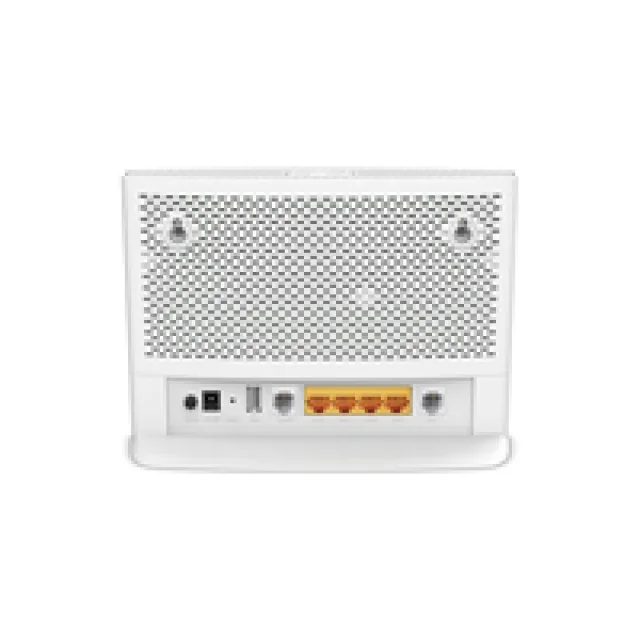

TP-Link VX230v V1 - Wireless router - DSL modem 3-port switch - 1GbE, PPP - Wi-Fi 6 - Dual Band

Description

Manufacturer Code: VX230V

Overview

TP-Link VX230v V1 - Wireless router - DSL modem 3-port switch - 1GbE, PPP - Wi-Fi 6 - Dual Band is available through DCS Components. It sits within the Routers category.

Key product details

• Wireless router
• DSL modem 3-port switch
• 1GbE, PPP
• Wi-Fi 6
• Dual Band

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 4897098685259

Specifications

WAN connection

Ethernet WAN	Yes
DSL WAN	Yes
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-11, RJ-45

Wireless LAN features

Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	1201 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	1201 Mbit/s
Modulation	1024-QAM

Network

Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Port forwarding	Yes
Port triggering	Yes
Dynamic DNS (DDNS)	Yes
Wireless radio	Yes
VPN tunnels quantity	16
VPN support	OpenVPN, PPTP VPN, IPSec VPN

DSL features

ADSL	Yes
ADSL2	Yes
ADSL2+	Yes
VDSL2	Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	1
RJ-11 ports quantity	2
DC-in jack	Yes

Management features

Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes
MU-MIMO technology	Yes

Security

NAT functionality	NAT Forwarding

Protocols

DHCP client	Yes
DHCP server	Yes
Supported network protocols	IPv4, IPv6

Design

Product colour	White
Wall mountable	Yes
Indication light	Yes
On/off switch	Yes
Product type	Tabletop router

Packaging content

Cables included	LAN (RJ-45), Phone (RJ-11)
AC adapter included	Yes
Quick installation guide	Yes

Antenna

Antenna design	Internal

Power

Power source type	DC
Output voltage	12 V
Output current	2 A
External power adapter	Yes

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

System requirements

Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Mac compatibility	Yes

Weight & dimensions

Width	199.7 mm
Depth	148.6 mm
Height	67.5 mm

Packaging data

Number of products included	1 pc(s)
