Description

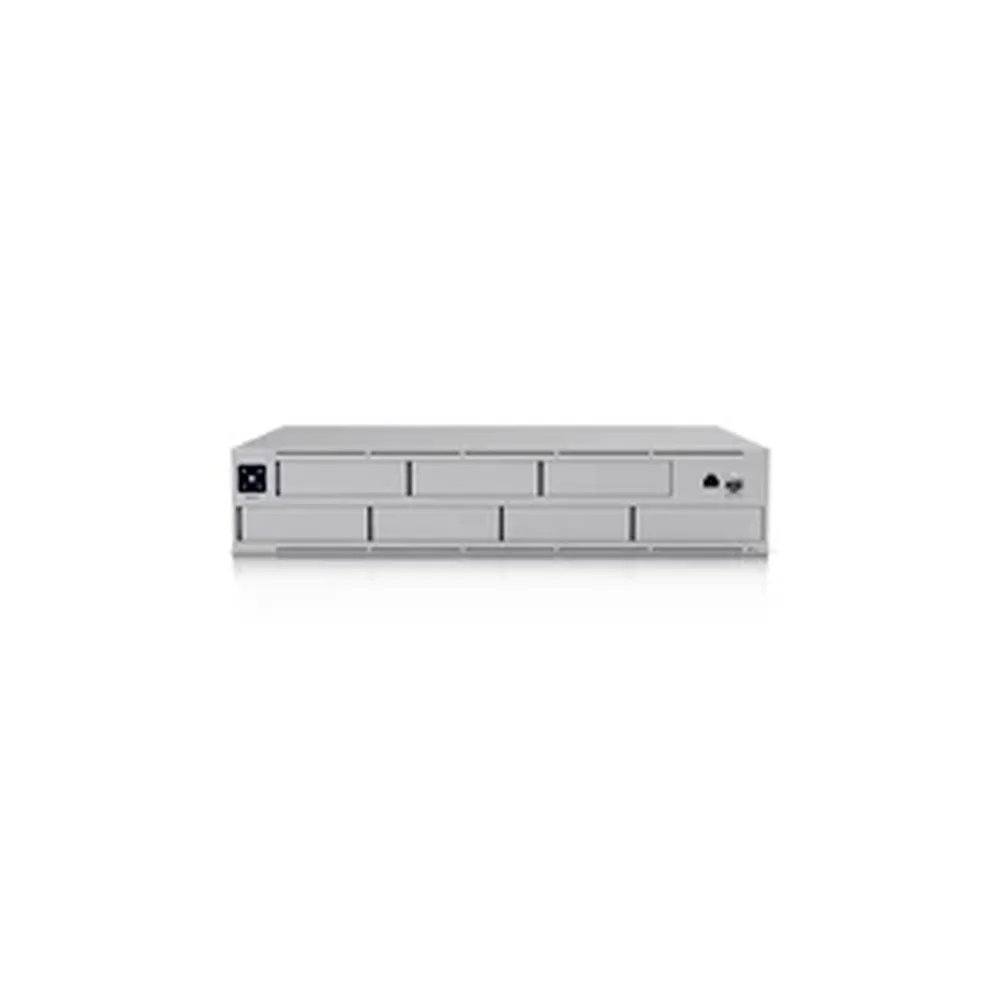

2U rack-mount NAS with (7) 2.5/3.5" drive bays and 10 Gbps performance designed for large-scale file storage and sharing.
(7) 2.5/3.5" HDD / SSD support
(1) 10G SFP+ uplink and (1) GbE RJ45 port
Data protection with RAID storage technology
UniFi Power Backup ready
1.3" touchscreen for management
Dimensions442 x 325 x 87 mm (17.4 x 12.8 x 3.4")
WeightWithout mounting brackets: 9.2 kg (20.3 lb)
With mounting brackets: 9.5 kg (20.8 lb)
EnclosureSGCC steel
MountingSGCC steel
ProcessorQuad-Core ARM Cortex-A57 at 1.7 GHz
System Memory8GB
Management InterfaceEthernet In-Band
Networking Interface(1) GbE RJ45 port
(1) 1/10 GbE SFP+ port
RF InterfaceBluetooth 4.1
Power Method(1) Universal AC input, 100—240V AC, 3A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 13.91A
Power SupplyAC/DC, internal, 200W
Supported Voltage Range100—240V AC
Max. Power Consumption160W
Max. Power Budget for Drives135W
ESD/EMP ProtectionAir: ± 12kV, contact: ± 8kV
LCM Display(1) 1.3" touchscreen
CertificationsFCC, CE, IC
Key Features
- Product Type: NAS
- POE Capability: No
- Device Support: UniFi
Category: Networking
Manufacturer Code: UNAS-Pro
EAN: 0810010079251
Weight (KG): 9.2
VAT Rate: 20%
