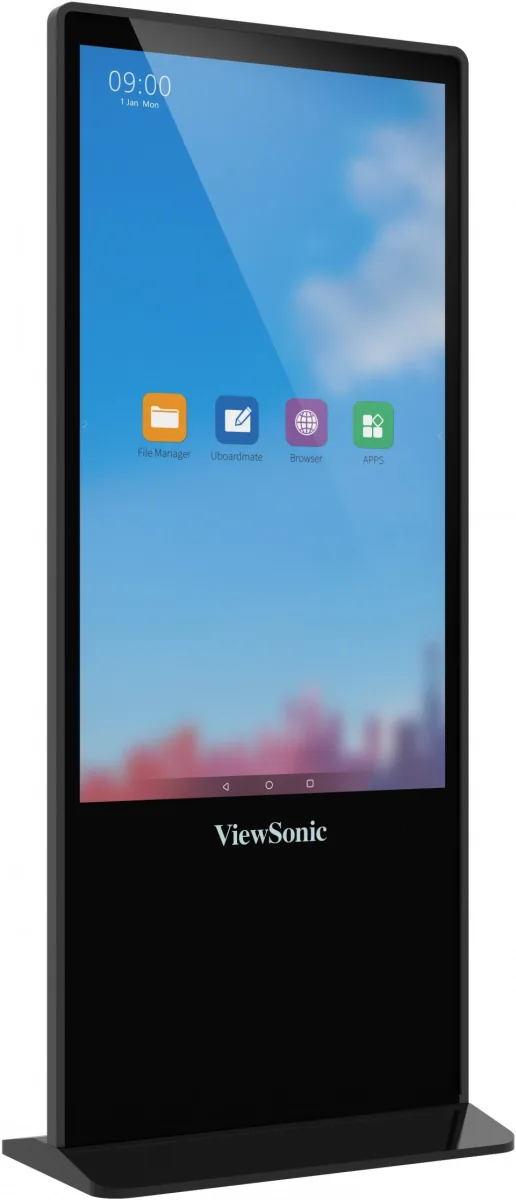

ViewSonic EP5542 - 55" Diagonal Class ePoster Series LED-backlit LCD display - digital signage / kiosk - 4K UHD (2160p) 3840 x 2160 - direct-lit LED

Description

ViewSonic Digital ePoster EP5542 139.7 cm (55"") LCD Digital Signage Display - ARM Cortex A73 - ARM Cortex A53 - 2 GB DDR4 SDRAM - 3840 x 2160 - Direct LED - 400 cd/m² - 2160p - USB - HDMI - Serial - Wireless LAN - Ethernet - Android 8.0 Oreo

Specifications

Display

Panel type	MVA
LED backlighting type	Direct-LED
Display diagonal	139.7 cm (55")
Display resolution	3840 x 2160 pixels
Display brightness	400 cd/m²
HD type	4K Ultra HD
Native aspect ratio	16:9
Response time	9 ms
Contrast ratio (typical)	1300:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.07 billion colours
Rated lifetime	30000 h
Haze rate	2%

Ports & interfaces

HDMI ports quantity	3
HDMI version	2.0
VGA (D-Sub) input ports	1
DisplayPorts quantity	1
USB port	Yes
USB ports quantity	3
Ethernet LAN (RJ-45) ports	1
Audio (L/R) in	1
Audio (L/R) out	1
RS-232 interface	Yes

Audio

Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	10 W

Design

Orientation	Vertical
Anti-glare screen	Yes

Performance

Operating hours (hours/days)	16/7
HDCP	Yes
HDCP version	2.2

Power

Power consumption (typical)	126 W
Power consumption (standby)	0.5 W
Energy efficiency class (SDR)	F
Energy consumption (SDR) per 1000 hours	73 kWh
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G

Computer system

Internal memory	2 GB
Operating system installed	Android 8.0

Weight & dimensions

Display width	768.5 mm
Display depth	400 mm
Display height	1870 mm
Display weight	62.7 kg
Weight	58 kg

Packaging data

Package width	920 mm
Package depth	550 mm
Package height	2000 mm
Package weight	66.7 kg

Packaging content

Remote control included	Yes
Batteries included	Yes
Cables included	AC

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 85%

Logistics data

Products per master (outer) case	1 pc(s)
Pallet gross length	92 cm
Pallet gross width	55 cm
Pallet gross height	2.13 m
Harmonized System (HS) code	8528529100

Network

Ethernet LAN	Yes
