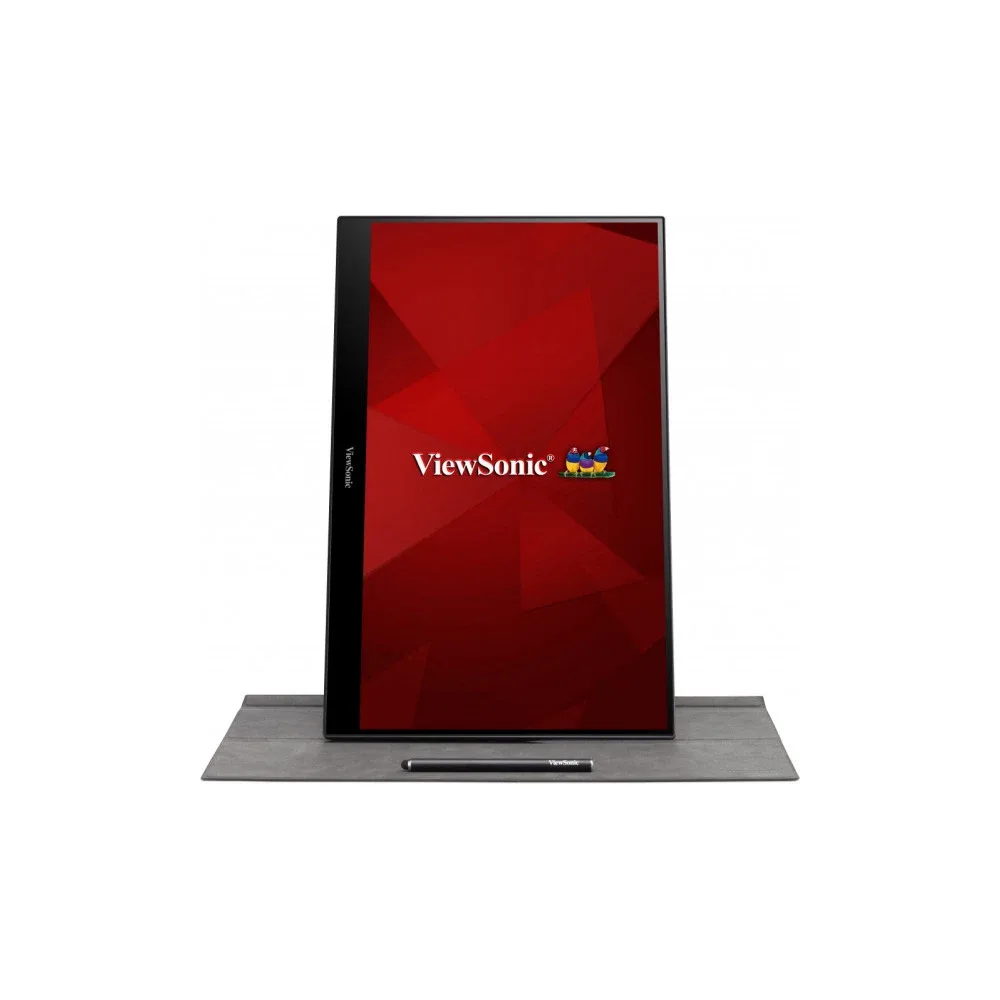

ViewSonic TD1655 - LED monitor - 16" - portable - touchscreen - 1920 x 1080 Full HD (1080p) @ 60 Hz - IPS - 250 cd/m² - 800:1 - 6.5 ms - Mini HDMI, USB-C - speakers

Other offers for this product

Save £46.54 against the highest current offer.

Description

ViewSonic TD1655 16"" Class LCD Touchscreen Monitor - 16:9 - 6.50 ms - 39.6 cm (15.6"") Viewable - Projected Capacitive - Multi-touch Screen - 1920 x 1080 - Full HD - In-plane Switching (IPS) Technology - 262k - 250 cd/m² - LED Backlight - Speakers - HDMI - USB - VGA - USB Type-C - 1 x HDMI In - Black

Overview

Viewsonic TD1655 16IN 16:9 LED MONITOR 1920X1080 HDMA 2 USB TYPE C is listed under manufacturer code TD1655. It sits within the Led Small Format category. DCS Components can help source this item as part of a quote-led procurement request.

Key product details

• Manufacturer code: TD1655
• Category: Led Small Format
• EAN: 0766907007077

Procurement and setup support

DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.

Specifications

Display

Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
HD type	Full HD
Native aspect ratio	16:9
Display technology	LED
Panel type	IPS
Touchscreen	Yes
Touchscreen type	Multi-user
Touchscreen technology	Projected capacitive system
Touch technology	Multi-touch
Number of simultaneous touchpoints	10
Display brightness	250 cd/m²
Response time	6.5 ms
Screen shape	Flat
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 870, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Contrast ratio (typical)	800:1
Contrast ratio (dynamic)	80000000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	262144 colours
Pixel pitch	0.179 x 0.179 mm
Horizontal scan range	15 - 82 kHz
Vertical scan range	50 - 75 Hz
Display diagonal (metric)	39.6 cm

Performance

NVIDIA G-SYNC	No
AMD FreeSync	No
Windows operating systems supported	Windows 10
Mac operating systems supported	Yes

Multimedia

Number of speakers	2
RMS rated power	1.6 W
Built-in speaker(s)	Yes
Built-in microphone	No
Built-in camera	No

Design

Product colour	Black, Silver

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
Built-in USB hub	Yes
USB upstream port type	USB Type-C
Audio output	1

Ergonomics

Wall mountable	No
Tilt adjustment	Yes
Tilt angle range	-20 - 60°

Power

Energy efficiency class (SDR)	C
Energy consumption (SDR) per 1000 hours	8 kWh
Power consumption (typical)	8 W
Power consumption (standby)	0.5 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power supply type	AC

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Width (with stand)	355 mm
Depth (with stand)	16 mm
Height (with stand)	223 mm
Weight (with stand)	1 kg

Packaging data

Package width	440 mm
Package depth	288 mm
Package height	89 mm
Package weight	2.3 kg

Packaging content

Cables included	Mini-HDMI, USB Type-C, USB Type-C to USB Type-A

Sustainability

Sustainability certificates	EPEAT Bronze

Other features

Display viewable area (HxV)	344 x 194 mm
Weight	1 kg
Compliance certificates	CE, REACH, RoHS
Certification	cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, NRCan, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO

Logistics data

Products per master (outer) case	4 pc(s)
Pallet gross width	120 cm
Pallet gross length	100 cm
Pallet gross height	196.8 cm
Harmonized System (HS) code	8528521000
