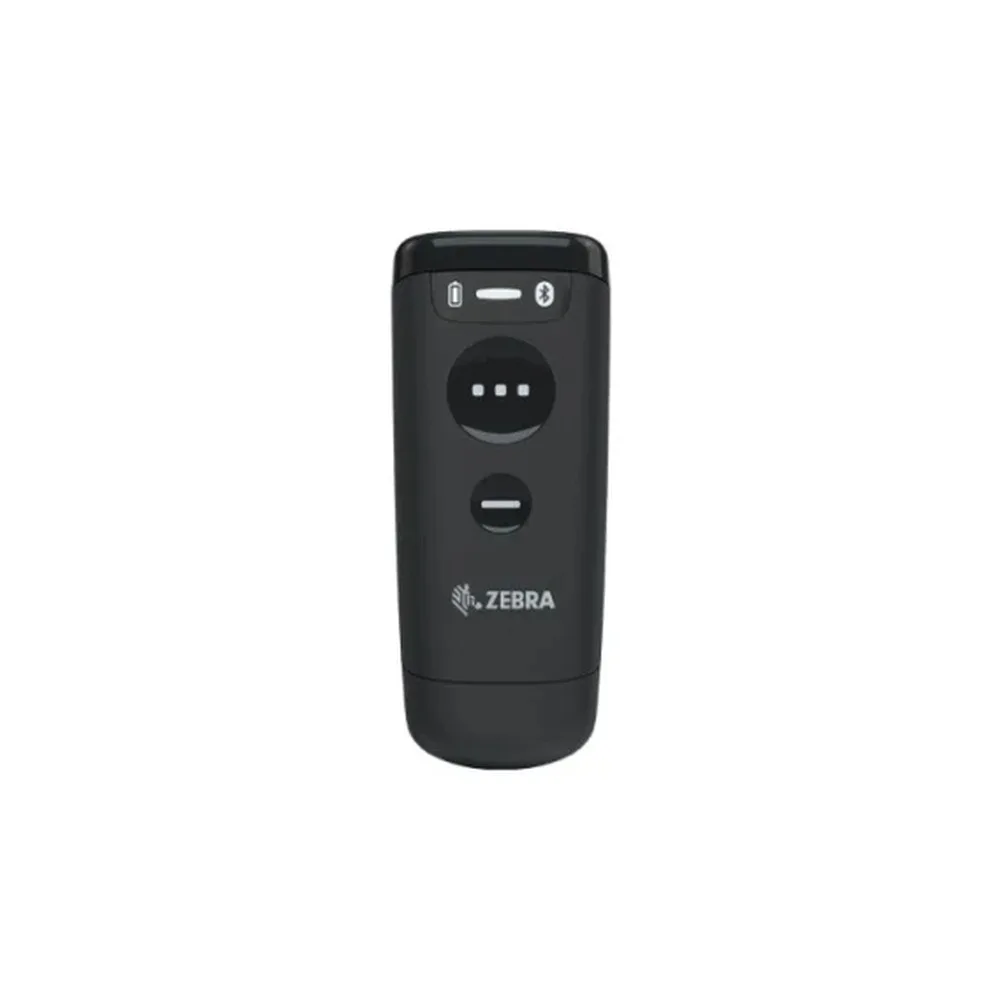

Zebra CS6080-SR40004VZWW CS6080 Cordless Companion Scan Inductive Imager Standard Range Black

Description

Zebra Companion CS6080 Handheld Barcode Scanner - Wireless Connectivity - Midnight Black - Imager - Bluetooth - USB

Specifications

Scanning

Type	Handheld bar code reader
Scanner type	1D/2D
Sensor type	LED
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Optical sensor resolution (W x H)	1280 x 960 pixels
Light levels (direct sunlight)	0 - 108000 lx
Wavelength	525 nm
Tilt reading angle	-60 - 60°
Pitch reading angle	-60 - 60°
Yaw reading angle	0 - 360°

Ports & interfaces

Connectivity technology	Wireless
Standard interfaces	Bluetooth, USB
Wireless range	100 m
Bluetooth version	5.0
Bluetooth Low Energy (BLE)	Yes

Performance

International Protection (IP) code	IP65
LED indicators	Yes
Product colour	Black

Power

Power source type	AC, Battery, DC, USB
Battery technology	Lithium Polymer (LiPo)
Battery type	Built-in battery
Battery capacity	735 mAh
Number of reads per charge	13000
Battery life	18 h
Charging time	6 h
Power consumption	400 mA

Weight & dimensions

Width	46 mm
Depth	109 mm
Height	23 mm
Weight	83 g

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%

Technical details

Compliance certificates	RoHS

Logistics data

Harmonized System (HS) code	84716070
