Manufacturer Code: DS3678-HP2F003VZWW
Overview

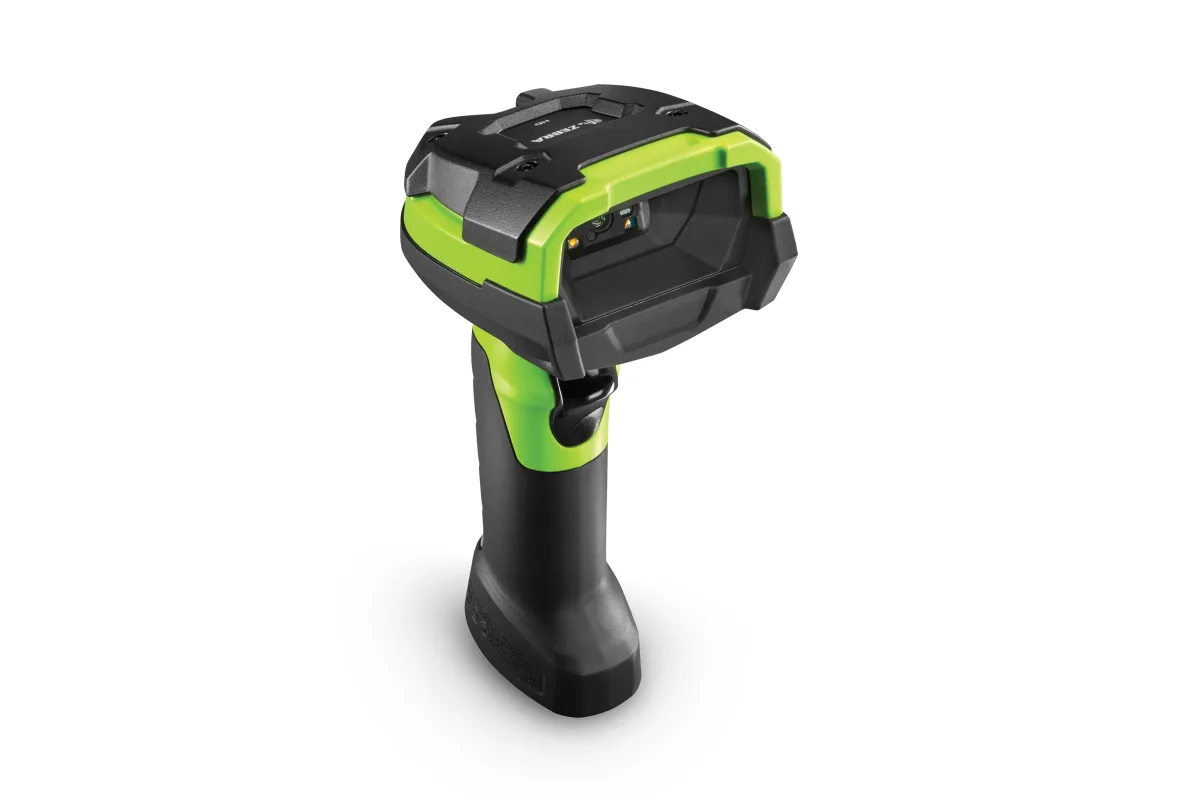

Zebra DS3678 RUGG AREA IMAG HIGH PERF is available through DCS Components. It sits within the Wrls handh bc sc category.
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
Key product details
| Type | Handheld bar code reader |
|---|---|
| Optical sensor resolution | 1280 pixels |
| Scanner type | 1D/2D |
| Sensor type | Laser |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Wavelength | 655 nm |
| Tilt reading angle | -65 - 65° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -45 - 45° |
| Connectivity technology | Wired & Wireless |
|---|---|
| Standard interfaces | RS-232, USB, Keyboard wedge |
| Wireless range | 100 m |
| Bluetooth version | 4.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Ethernet LAN | Yes |
| International Protection (IP) code | IP67 |
|---|---|
| Protection features | Dust resistant, Shock resistant, Water resistant |
| LED indicators | Yes |
| Product colour | Black, Green |
| Programming function | Yes |
| Power source type | Battery |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 3100 mAh |
| Number of reads per charge | 100000 |
| Width | 142 mm |
|---|---|
| Depth | 76 mm |
| Height | 185 mm |
| Weight | 411 g |
| Operating temperature (T-T) | -20 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Compliance certificates | RoHS |
|---|
| Harmonized System (HS) code | 84716070 |
|---|
