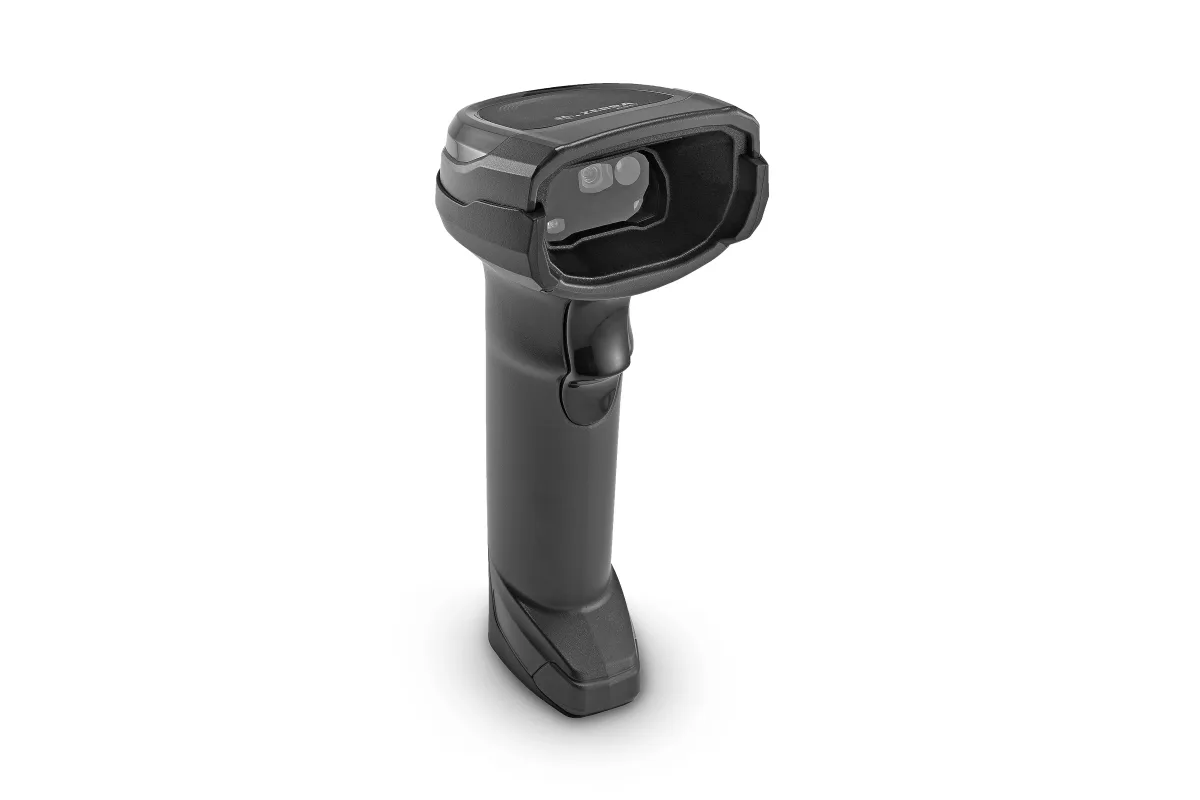

Manufacturer Code: DS8178-SR7U2100PFW
Overview
Zebra DS8178-SR BLK FIPS PRESENTATION is available through DCS Components. It sits within the Wrls handh bc sc category.
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
Key product details
| Type | Handheld bar code reader |
|---|---|
| Optical sensor resolution | 1280 pixels |
| Scanner type | 1D/2D |
| Sensor type | Photo diode |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 128A, Code 128B, Code 128C, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, Small Aztec Code, TLC-39 |
| Working distance | 61 cm |
| Wavelength | 617 nm |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | 0 - 60° |
| Yaw reading angle | 0 - 60° |
| Connectivity technology | Wired & Wireless |
|---|---|
| Standard interfaces | USB, RS-232, Bluetooth |
| Wireless range | 100 m |
| Bluetooth version | 4.0 |
| PC connection | RS-232/USB |
| International Protection (IP) code | IP42 |
|---|---|
| Product colour | Black |
| Power source type | Battery |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 2500 mAh |
| Battery life | 83 h |
| Width | 66 mm |
|---|---|
| Depth | 107 mm |
| Height | 168 mm |
| Weight | 235.3 g |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Harmonized System (HS) code | 84716070 |
|---|
