Manufacturer Code: LI3678-SR0F003VZWW
Overview

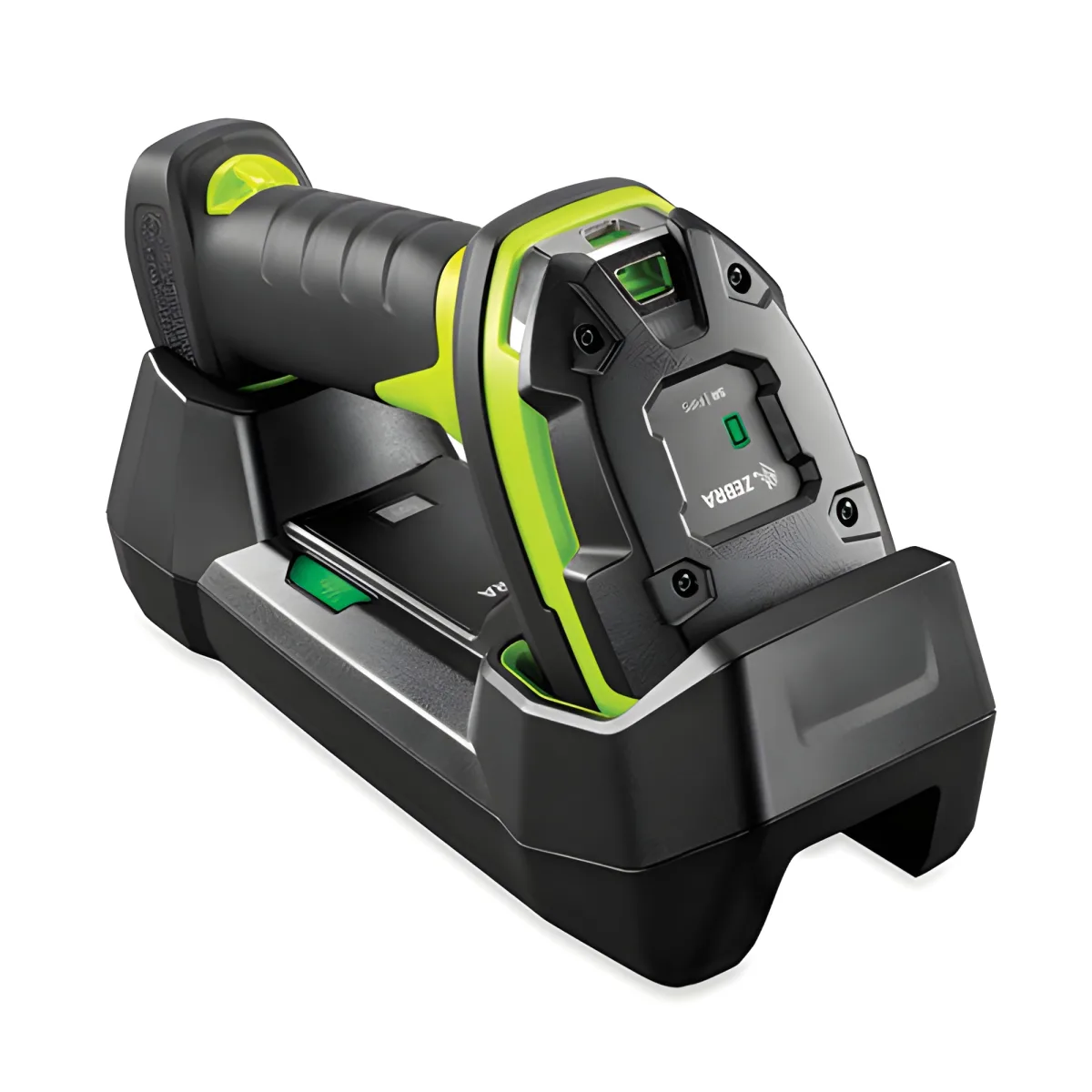

Zebra LI3678 RUGG LIN IMAG STD RANGE is available through DCS Components. It sits within the Wrls handh bc sc category.
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 9999999999999
Key product details
| Type | Handheld bar code reader |
|---|---|
| Optical sensor resolution | 1500 pixels |
| Scanner type | 1D |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Wavelength | 617 nm |
| Tilt reading angle | -65 - 65° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -45 - 45° |
| Connectivity technology | Wired & Wireless |
|---|---|
| Standard interfaces | RS-232, USB, Keyboard wedge |
| Wireless range | 100 m |
| Bluetooth version | 4.0 |
| Bluetooth Low Energy (BLE) | Yes |
| International Protection (IP) code | IP67 |
|---|---|
| Protection features | Dust resistant, Shock resistant, Water resistant |
| LED indicators | Yes |
| Product colour | Black, Green |
| Programming function | Yes |
| Power source type | Battery |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 3100 mAh |
| Number of reads per charge | 70000 |
| Width | 142 mm |
|---|---|
| Depth | 76 mm |
| Height | 185 mm |
| Weight | 385 g |
| Operating temperature (T-T) | -20 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Compliance certificates | RoHS |
|---|
| Harmonized System (HS) code | 84716070 |
|---|
