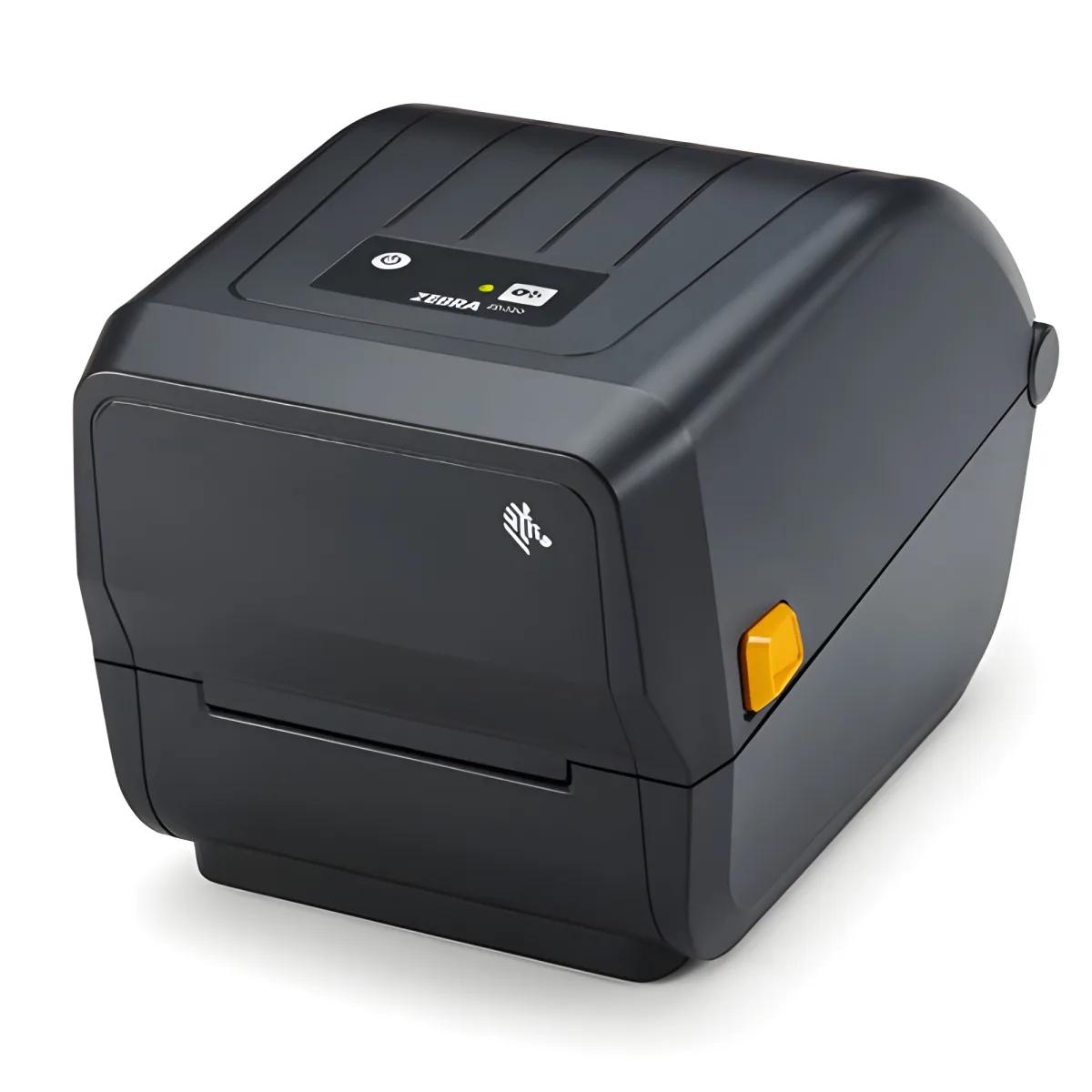

Zebra ZD23042-30EC00EZ ZD230 TT Print 74/300M Standard Ezpl 203 DPI EU/UK USB LAN

Description

Zebra ZD230 Desktop Thermal Transfer Printer - Monochrome - Label/Receipt Print - Ethernet - USB - 104 mm (4.09") Print Width - 152 mm/s Mono - 203 dpi - 112 mm Label Width x 991 mm Label Length

Overview

Zebra ZD230 TT PRINT 74/300M STD EZPL is listed under manufacturer code ZD23042-30EC00EZ. It sits within the Label Printers category. DCS Components can help source this item as part of a quote-led procurement request.

Key product details

• Manufacturer code: ZD23042-30EC00EZ
• Category: Label Printers

Procurement and setup support

DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.

Specifications

Printing

Print technology	Thermal transfer
Colour	No
Maximum resolution	203 x 203 DPI
Print speed	152 mm/sec
Maximum printing width	10.4 cm

Paper handling

Ribbon width	10.9 cm
Ribbon length	300 m
Maximum label width	11.2 cm
Maximum label length	0.991 m
Maximum roll diameter	12.7 cm
Media thickness	0.08 - 0.1905 mm
Supported paper width	25.4 - 112 mm
Core diameter	1.27 cm

Ports & interfaces

Connectivity technology	Wired
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
USB port	Yes
USB 2.0 ports quantity	1

Performance

Page description languages	EZPL, XML, ZPL II
Internal memory	128 MB
Flash memory	256 MB
Built-in barcodes	1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Number of fonts	23
Certification	IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM

Design

Product colour	Black
Built-in display	No
Display	No

Power

AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Operational conditions

Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	4.4 - 41 °C
Storage temperature (T-T)	-40 - 60 °C

Weight & dimensions

Width	197 mm
Depth	267 mm
Height	191 mm
Weight	1.1 kg

Packaging data

Quantity per pack	1 pc(s)

Packaging content

Cables included	AC

Logistics data

Harmonized System (HS) code	84433210

Technical details

Sustainability certificates	ENERGY STAR
