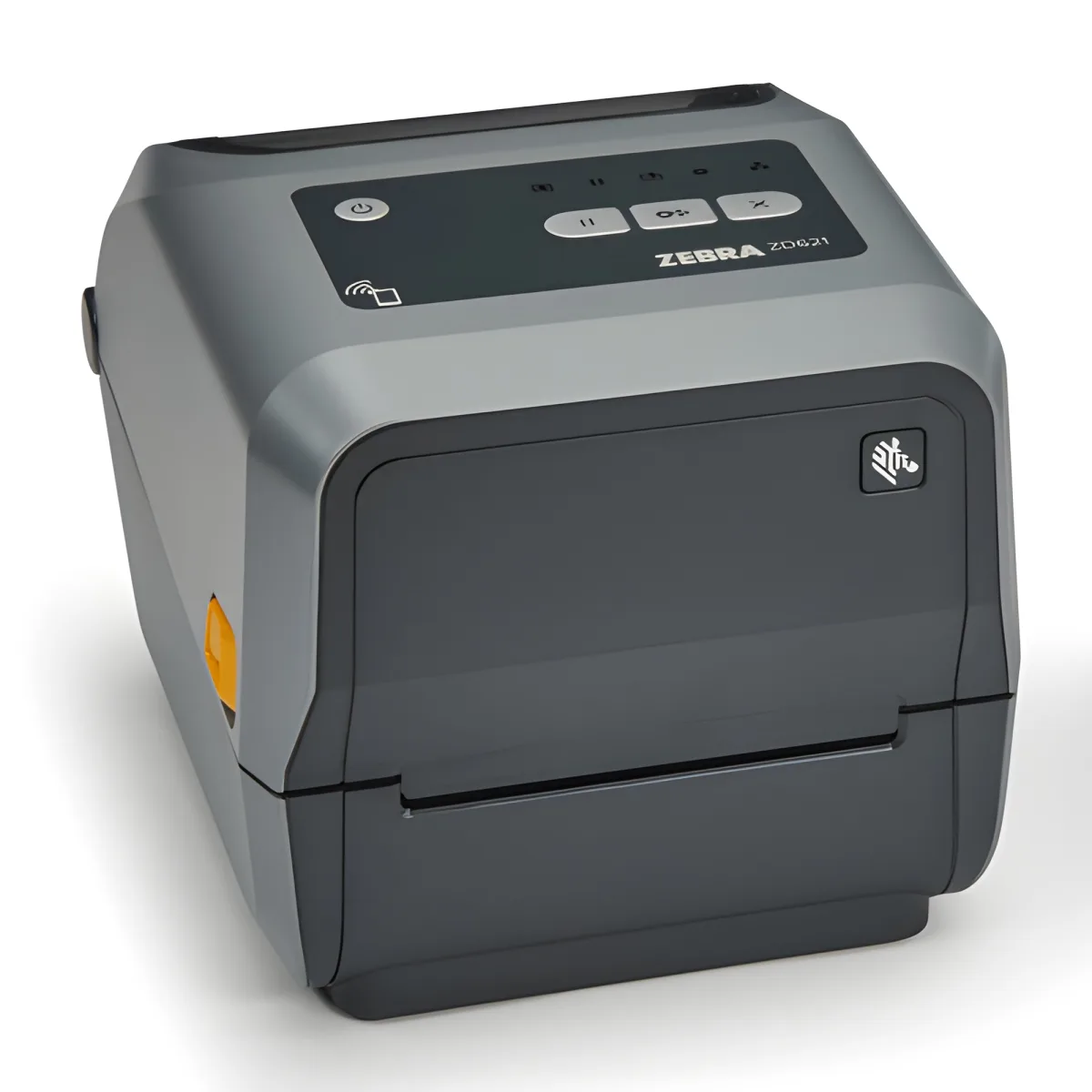

Zebra ZD6A042-30EF00EZ ZD621 TT 203DPI USB Host LAN Serial BTLE5 EU/UK Swiss Font Ezpl

Description

Zebra ZD621t Desktop Thermal Transfer Printer - Monochrome - Label/Receipt Print - USB - USB Host - Serial - Bluetooth - Near Field Communication (NFC) - EU, UK - Grey - Real Time Clock - 104 mm (4.09"") Print Width - 203 mm/s Mono - 203 dpi - 118 mm Label Width x 991 mm Label Length - EZPL, ZPL, EPL, ZPL II, XML Emulation - For iOS, PC, Android

Overview

Zebra ZD621 TT 203DPI USB HOST LAN is listed under manufacturer code ZD6A042-30EF00EZ. It sits within the Label Printers category. DCS Components can help source this item as part of a quote-led procurement request.

Key product details

• Manufacturer code: ZD6A042-30EF00EZ
• Category: Label Printers

Procurement and setup support

DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.

Specifications

Printing

Print technology	Thermal transfer
Maximum resolution	203 x 203 DPI
Print speed	203 mm/sec
Maximum printing width	10.4 cm

Paper handling

Maximum label length	0.991 m
Media thickness	0.08 - 0.19 mm

Ports & interfaces

Connectivity technology	Wired & Wireless
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	5.0
Bluetooth Low Energy (BLE)	Yes
USB port	Yes

Performance

Page description languages	EPL2, XML, ZBI, ZPL II
Internal memory	256 MB
Flash memory	512 MB

Design

Product colour	Grey
Control type	Buttons

Power

AC input voltage	100 - 240 V
AC input frequency	50-60 Hz

Operational conditions

Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	4.4 - 41 °C
Storage temperature (T-T)	-40 - 60 °C

Weight & dimensions

Width	202 mm
Depth	267 mm
Height	192 mm
Weight	2.5 kg

Logistics data

Harmonized System (HS) code	84433210
