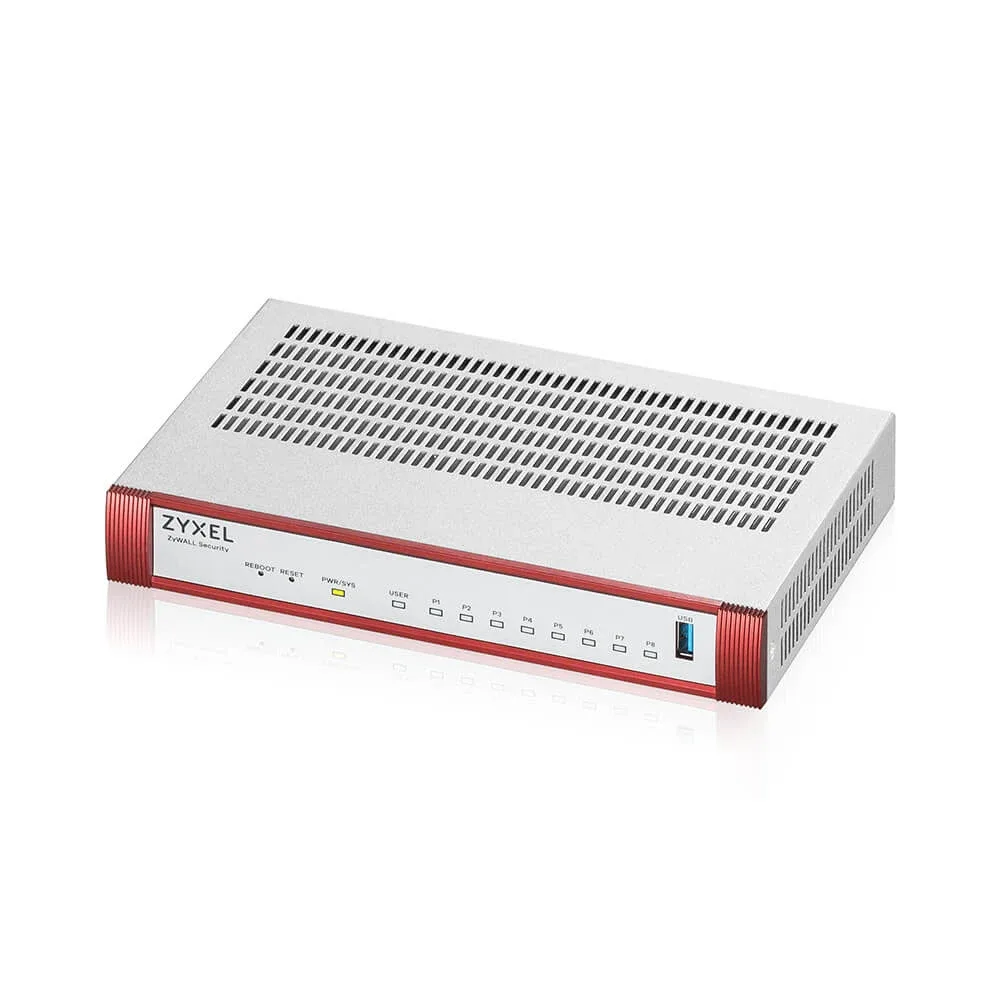

Zyxel USG Flex H Series 100 - Firewall - 8 ports - 1GbE

Description

ZYXEL ZyWALL USG FLEX 100H Network Security/Firewall Appliance - 8 Port - 10/100/1000Base-T - Gigabit Ethernet - 2.93 Gbit/s Firewall Throughput - SSL, DES, AES (256-bit) - 50 VPN - 8 x RJ-45 - Rack-mountable

Overview

Zyxel USG FLEX100 H SERIES 8 GIGABIT is listed under manufacturer code USGFLEX100H-EU0101F. It sits within the Network Security & Firewall Appliances category. DCS Components can help source this item as part of a quote-led procurement request.

Key product details

• Manufacturer code: USGFLEX100H-EU0101F
• Category: Network Security & Firewall Appliances
• EAN: 4718937622429

Procurement and setup support

DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.

Specifications

Data transmission

Firewall throughput	3 Gbit/s
VPN throughput	0.75 Gbit/s
IPS/IDS throughput	1500 Mbit/s

Performance

Heat dissipation	40.365 BTU/h

Network

VPN tunnels quantity	50
Number of VLANs	16

Security

VPN support	IKEv2, IPSec, SSL

Ports & interfaces

Connectivity technology	Wired
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	8
Ethernet LAN data rates	10,100,1000 Mbit/s
Console port	RJ-45

Power

Input current	2 A
DC input voltage	12 V
Power consumption (max)	17 W

Certificates

Compliance certificates	BSMI, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-30 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Width	216 mm
Depth	143 mm
Height	33 mm
Weight	1.04 kg

Packaging data

Package width	278 mm
Package height	189 mm
Package depth	99 mm
Package weight	1.62 kg

Packaging content

Cables included	Power

Other features

Firewall throughput	3000 Mbit/s
VPN throughput	750 Mbit/s
