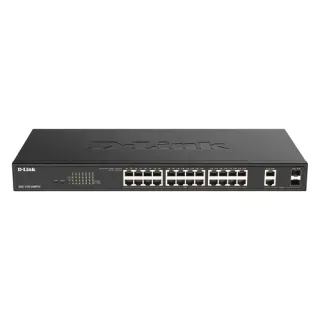

D-Link DGS 1100-26MPV2 - Switch - smart - 24 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP - rack-mountable - PoE+ (370 W)

Description

Smart Web UI
The DGS-1100's web user interface is an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), link aggregation (static). With powerful security features like IGMP snooping, Static MAC, and Storm Control, the DGS-1100 Smart family is a versatile solution for environments that require easy to deploy and easy to configure solutions without added complexities.

Easy to Deploy and Manage
D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.

PoE and Poe+, with budgets up to 370W
The DGS-1100 Smart Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.

Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.

Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognise the cable type, and detect cable errors.

Green Technology
D-Link Green technology enables the DGS-1100 Smart series to save power without sacrifices. The majority of the family utilises a fanless design, for silent and energy efficient operation. All are IEEE 802.3az compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).

Surveillance Mode
Select Surveillance Mode in the Web UI to take advantage of easy‑to‑use surveillance features which also enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.

Specifications

Management features

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
MIB support	• RFC768 UDP • RFC791 IP • RFC792 ICMP • RFC793 TCP • RFC826 ARP • RFC1213 MIB II • RFC1493 Bridage MIB • RFC1907 SNMPv2 MIB • RFC1215 MIB Traps Convention

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	2

Network

Networking standards	IEEE 802.1D, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at
Copper ethernet cabling technology	10GBASE-T, 1000BASE-T
Port mirroring	Yes
Full duplex	Yes
Half duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
Head-of-line (HOL) blocking	Yes
Auto-negotiation	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN, Voice VLAN

Data transmission

Switching capacity	52 Gbit/s
Forwarding rate	38.69 Mpps
MAC address table	8000 entries
Jumbo frames support	Yes

Security

DHCP features	DHCP client
IGMP snooping	Yes
Security algorithms	SSL/TLS
MAC address filtering	Yes
Static port security	Yes

Multicast features

Multicast support	Yes
IPv4 multicast entries	1
IPv6 multicast entries	1
Number of multicast groups filtered	1

Protocols

IPv4 & IPv6 features	IPv4 FIB

Design

Rack mounting	Yes
Product colour	Black
Housing material	Metal

Performance

Flash memory	16 MB
Noise level	50.5 dB
Fanless	Yes

Power

Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	454.1 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	24
Power over Ethernet plus (PoE+) ports quantity	24
Total Power over Ethernet (PoE) budget	370 W

Operational conditions

Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Heat dissipation	287 BTU/h

Weight & dimensions

Width	440 mm
Depth	208 mm
Height	44 mm
Weight	2.8 kg

Logistics data

Harmonized System (HS) code	85176990
