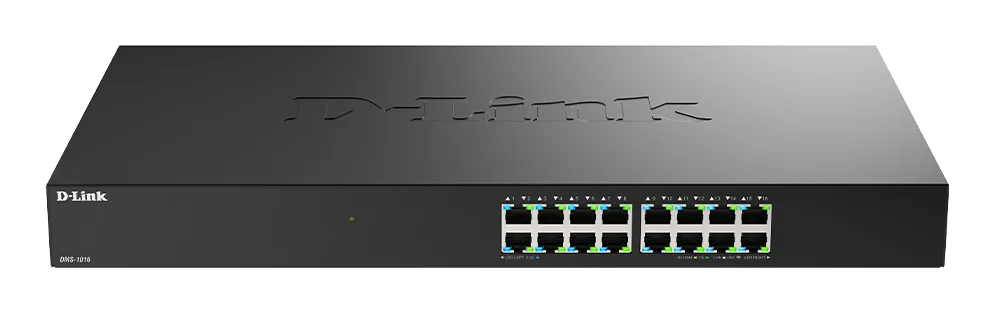

D-Link DMS-1016 - Switch - unmanaged - 16 x 10/100/1000/2.5G - rack-mountable

Specifications

Management features

Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Traffic classification	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Power connector	DC-in jack

Network

Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
10G support	No
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s

Data transmission

Switching capacity	80 Gbit/s
Forwarding rate	59.52 Mpps
MAC address table	16000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	12288

Design

Stackable	Yes
Product colour	Black
LED indicators	Yes

Performance

Mean time between failures (MTBF)	800034.25 h

Power

Power source	DC
Power supply included	Yes
DC input voltage	12 V
Input current	5.4 A
Power consumption (max)	19.135 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	No

Operational conditions

Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Heat dissipation	62.29 BTU/h

Weight & dimensions

Width	440 mm
Depth	250 mm
Height	44 mm
Weight	2.93 kg

Packaging content

Quick start guide	Yes

Certificates

Certification	LVD; CE Class A, FCC Class A
