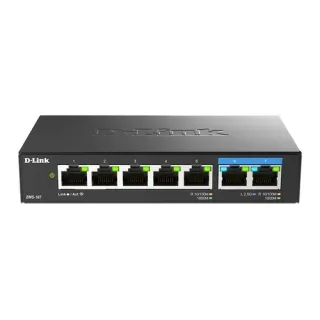

D-Link DMS-107 - Switch - unmanaged - 5 x 10/100/1000 + 2 x 2.5GBase-T - desktop, wall-mountable

Specifications

Management features

Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Cloud-managed	No

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	5
2.5G Ethernet (copper) ports quantity	2

Network

Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T, 2500BASE-T
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
MAC address auto-learning supported	Yes

Data transmission

Switching capacity	20 Gbit/s
Forwarding rate	14.88 Mpps
MAC address table	2000 entries
Store-and-forward	Yes
Number of queues	8
Packet buffer memory	2 MB

Design

Product colour	Black
Housing material	Metal
LED indicators	Activity, Link, Power

Performance

Fanless	Yes
Mean time between failures (MTBF)	944277.78 h

Power

Power source	DC
DC input voltage	12 V
Input current	0.5 A
Power consumption (typical)	3.37 W
Power consumption (max)	3.37 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	No

Other features

Warranty period	5 year(s)

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	14.28 BTU/h

Weight & dimensions

Width	145 mm
Depth	28 mm
Height	82 mm
Weight	295.2 g

Sustainability

Sustainability compliance	Yes

Certificates

Compliance certificates	BSMI, CE, Low Voltage Directive (LVD), RoHS
