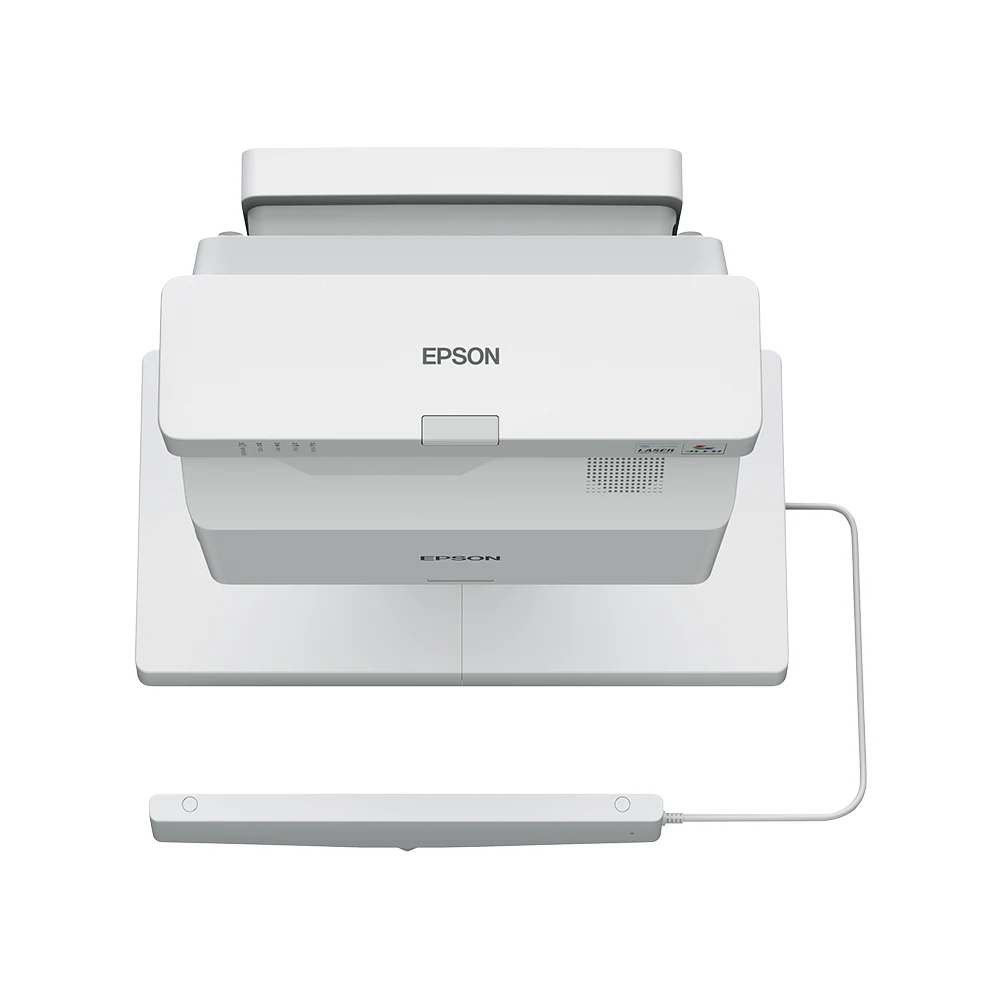

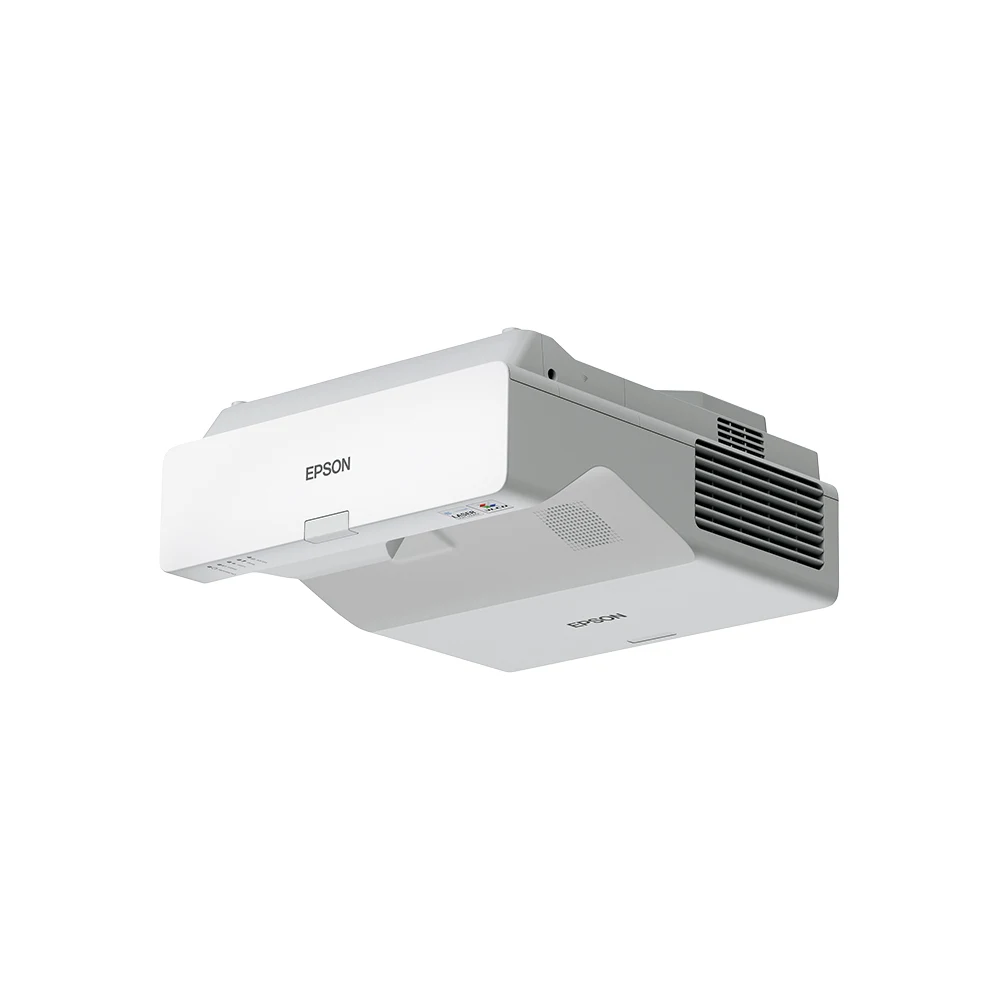

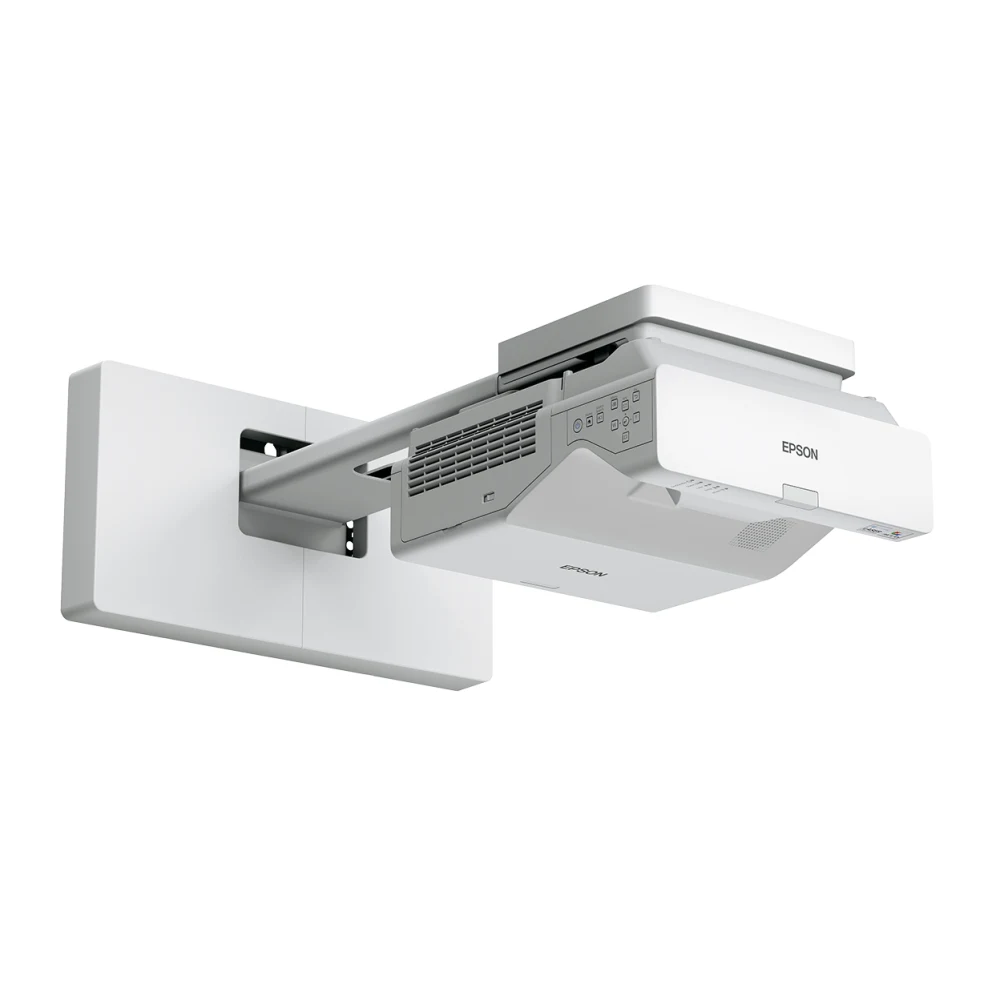

Epson EB-760WI - 3LCD projector - 4100 lumens (white) - 4100 lumens (colour) - WXGA (1280 x 800) - 16:10 - ultra short-throw lens - 802.11a/b/g/n/ac wireless / LAN/ Miracast - white

Description

Agile USTi laser display
Whatever the size of class or meeting room, unrestricted and interactive presentations are possible with this bright, compact and affordable touch-display solution.

The EB-760Wi's vibrant image, scalable up to 100", is clearly visible from any angle and from a distance, and content can be easiliy shared or streamed directly from multiple devices for the perfect collaborative experience.


The EB-760Wi is a step up from the EB-760W, with added interactive features.


Interactive technology enables two digital pens to be used simultaneously on the display (finger touch available through optional accessory FT01). Presentations can be controlled and brought to life with on-screen annotations, while a variety of convenient built-in tools support productivity. An optional Epson visualiser camera can be controlled via the display, projecting documents or objects from a desk for everyone to see in incredible HD detail.


The ultra short throw lens allows safe, discreet positioning above the display, enabling presenters free access to interact without casting shadows.


With a 4,100 lumens laser-light source, combined with 3LCD technology, it produces a large, bright and vibrant display up to 100", visibly clear from all angles and at a distance.


Versatile wired and wireless connectivity options, including screen mirroring via Miracast™, allow participants to effortlessly share content from their PCs or mobile devices.


Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots from certain angles, and presenters are not subjected to LCD panel direct blue light radiation, believed to damage eyes.

Specifications

Projector

Smart projector	No
Screen size compatibility	1346.2 - 2540 mm (53 - 100")
Projector brightness	4100 ANSI lumens
Projection technology	3LCD
Projector native resolution	WXGA (1280x800)
Contrast ratio (typical)	2500000:1
Native aspect ratio	16:10
Number of colours	1.07 billion colours
Projector brightness (economic mode)	2100 ANSI lumens
Keystone correction, horizontal	-3 - 3°
Keystone correction, vertical	-3 - 3°
Matrix size	1.5 cm (0.59")

Light source

Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h

Lens system

Focus	Manual
Fixed focal length	3.7 mm
F-number (relative aperture)	1.6
Zoom ratio	1.35:1
Throw ratio	0.27 - 0.37:1

Video

Analog signal format system	Not supported
Full HD	No
3D	No

Ports & interfaces

Service port type	USB Type-B
USB 2.0 ports quantity	2
Headphone outputs	3
Microphone in	Yes
Serial interface type	RS-232C
VGA (D-Sub) ports quantity	3
HDMI ports quantity	3
Composite video in	1
DVI port	No

Network

Smart TV	No
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Miracast	Yes

Storage

Card reader integrated	No

Features

Interactive	Yes
Noise level (economic mode)	27 dB
On Screen Display (OSD)	Yes
Noise level	37 dB
Air filter	Yes

Multimedia

Built-in speaker(s)	Yes
RMS rated power	16 W

Design

Market positioning	Presentation
Product colour	White
Placement	Ceiling, Desktop, Wall
Cable lock slot	Yes
Cable lock slot type	Kensington

Display

Built-in display	No

Power

Power source	AC
Power consumption (typical)	197 W
Power consumption (economy mode)	141 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz

Operational conditions

Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	-10 - 90%

Weight & dimensions

Width	356 mm
Depth	395 mm
Height	133 mm
Weight	6 kg

Packaging content

Remote control included	Yes
Batteries included	Yes
Cables included	AC, USB
Interactive pen included	Yes
