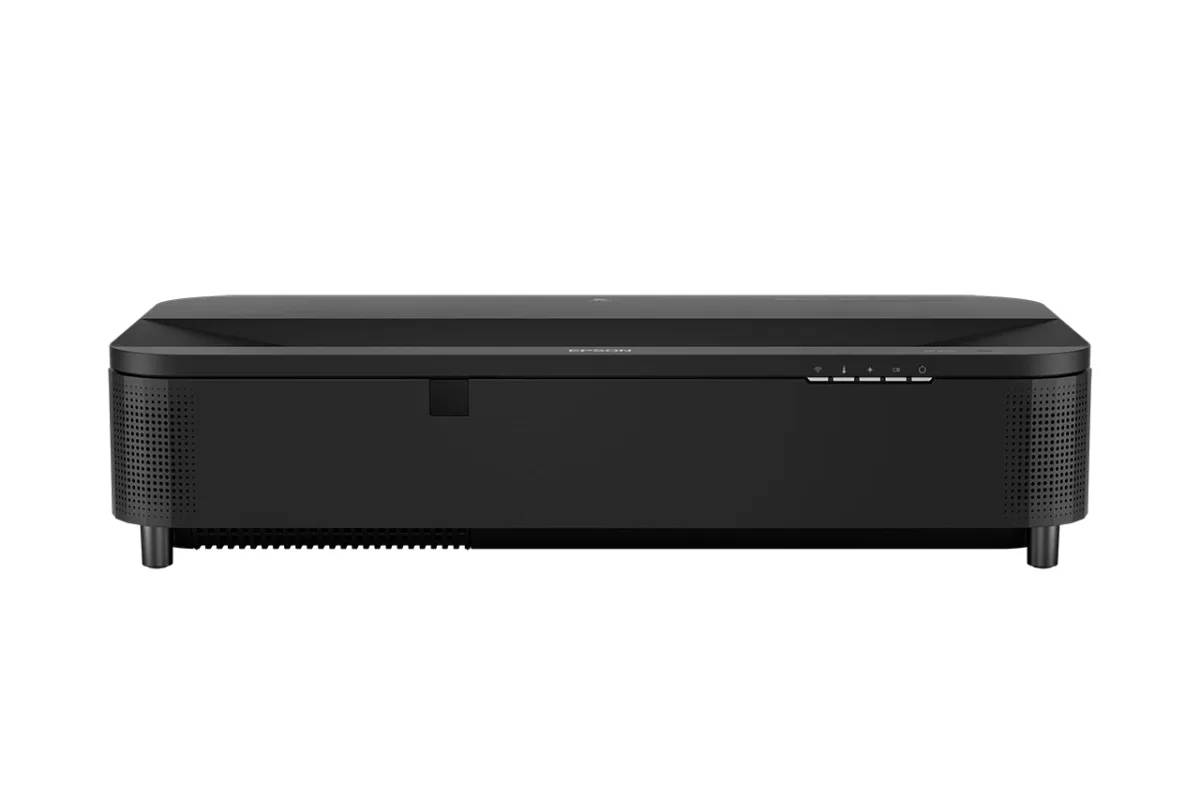

Epson EB-815E - 3LCD projector - 5000 lumens (white) - 5000 lumens (colour) - 16:9 - 1080p - ultra short-throw lens - Wi-Fi / LAN / Miracast - black

Description

Super UST 4KE laser display
The EB-815E can be placed just centimetres away from a wall to create bright 4KE images up to 160”. It projects content in stunning clarity and offers a low cost, energy efficient large display solution with a convenient and quick set up.


EB-815E's super-ultra-short-throw lens allows discreet positioning close to the wall, enabling presenters free access without casting shadows.


With 5,000 lumens CLO and 3LCD technology, the EB-815E is bright and vibrant up-to 160", which enables content visibility from all angles and distances. The experience is immersive and it's extremely simple to use.


Versatile wired and wireless connectivity options, including Miracast™ screen mirroring, ensure effortless, multi-device content sharing.


Weighing only 12.3kg, it is highly portable, and the Epson Setting Assistant App makes setup quick and simple. The ideal display solution suitable for different room sizes, combined with flexible installation options.


The EB-815E supports multiple aspect ratios and multi-projector edge-blending for a low cost, seamless, energy efficient ultra-wide display, perfect for video conferencing.


Paired with Epson's Ambient Light Rejection Screen, the EB-815E's image quality could be mistaken for a video wall or LED display, but it is surprisingly affordable and consumes a fraction of the energy.

Specifications

Projector

Smart projector	No
Screen size compatibility	2032 - 4064 mm (80 - 160")
Contrast ratio (dynamic)	5000000:1
Projector brightness	5000 ANSI lumens
Projection technology	3LCD
Projector native resolution	1080p (1920x1080)
Contrast ratio (typical)	2500000:1
Native aspect ratio	16:9
Projector brightness (economic mode)	3500 ANSI lumens
Vertical scan range	192 - 240 Hz
Matrix size	1.57 cm (0.62")

Light source

Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h

Lens system

Focus	Manual
Focal length range	2.3 mm
Fixed focal length	2.3 mm
F-number (relative aperture)	1.8
Zoom capability	Yes
Zoom ratio	1.35:1
Throw ratio	0.16 - 0.22:1

Video

Analog signal format system	Not supported
Full HD	Yes
3D	No
Video processing	10 bit
Video colour modes	Blackboard, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation

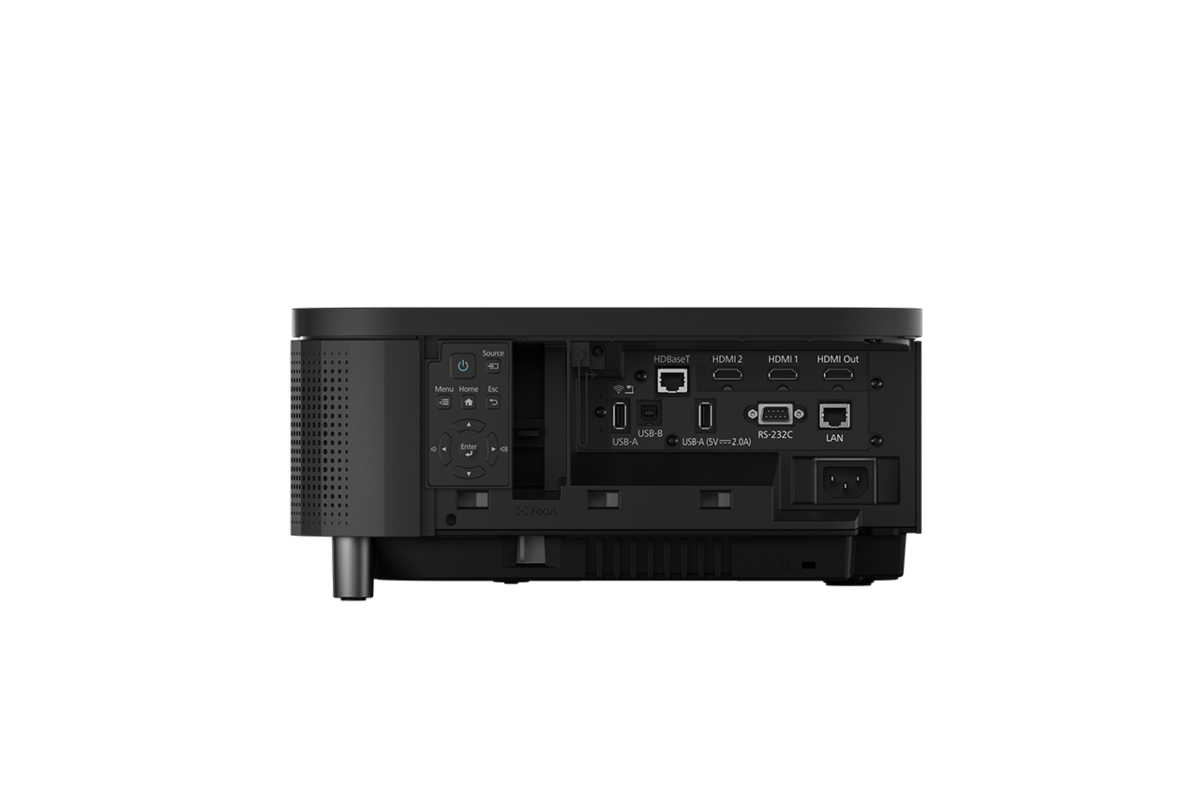

Ports & interfaces

Service port type	USB Type-B
USB 2.0 ports quantity	2
Serial interface type	RS-232C
HDMI ports quantity	3
DVI port	No

Network

Smart TV	No
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Miracast	Yes

Storage

Card reader integrated	No

Features

Interactive	No
Noise level (economic mode)	26 dB
Noise level	35 dB
Country of origin	Philippines
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
Password protection	Yes

Multimedia

Built-in speaker(s)	No

Design

Market positioning	Business
Product type	Ultra short throw projector
Product colour	Black
Placement	Ceiling, Desktop, Wall
Cable lock slot	Yes
Cable lock slot type	Kensington

Display

Built-in display	No

Power

Power source	AC
Power consumption (typical)	290 W
Power consumption (max)	380 W
Power consumption (economy mode)	192 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
AC adapter output voltage	100 - 240 V

Operational conditions

Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Width	695 mm
Depth	341 mm
Height	156 mm
Weight	12.5 kg
Package width	460 mm
Package depth	790 mm
Package height	310 mm
Package weight	16.9 kg

Packaging content

Remote control included	Yes
Batteries included	Yes
Bundled software	Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management, Epson Setting Assistant

Technical details

Other features

21:9 aspect ratio support, 4K enhancement, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Daisy chain Multi-Projection, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Email notification, Fit to Screen, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light source life, PC Free, Point correction, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Source function, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App

Mobile app support

Yes

Logistics data

Quantity per pack	1 pc(s)
Products per pallet	12 pc(s)
Pallet gross length	120 cm
Pallet gross width	80 cm
Pallet gross height	2.01 m
Products per pallet layer	2 pc(s)
Products per pallet layer (UK)	2 pc(s)
Products per pallet (UK)	12 pc(s)
Pallet length (UK)	120 cm
Pallet height (UK)	2.01 m

Other features

Option type	Air filter, Ceiling mount, Connection and control box, MB22 ceiling mount, Safety wire set, Visualiser camera, WP System - ELPWP10, WP System - ELPWP20, Wall hanging bracket, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01
Interface	USB 2.0-A (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, HDMI in (2x), HDMI out, HDBaseT, Miracast
Control panel	0.62 inch with C2 Fine
Supported network protocols	HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
Box contents	Power cable, Quick Start Guide, Remote control incl. batteries, Warranty Documents
Security features	Kensington lock, Control panel lock, Password lock, Padlock, Wireless LAN unit lock, Wireless LAN security, Password protection
