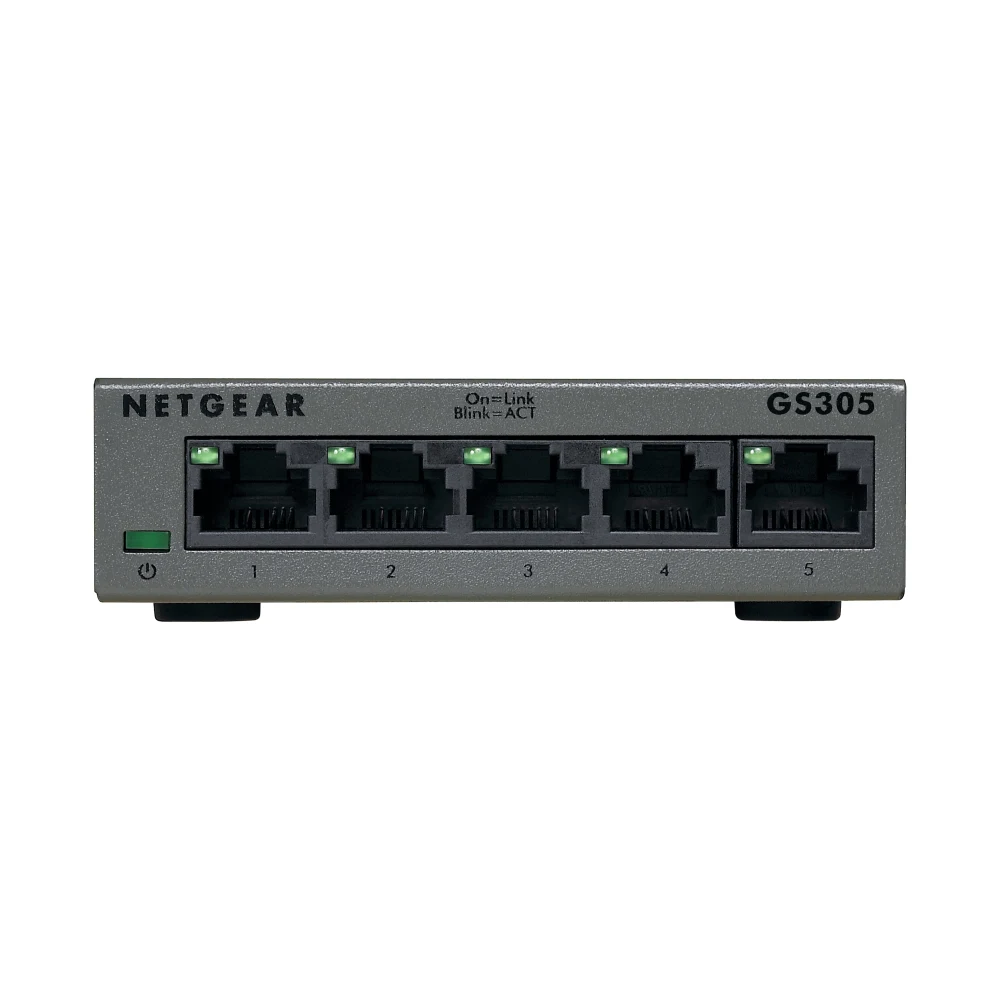

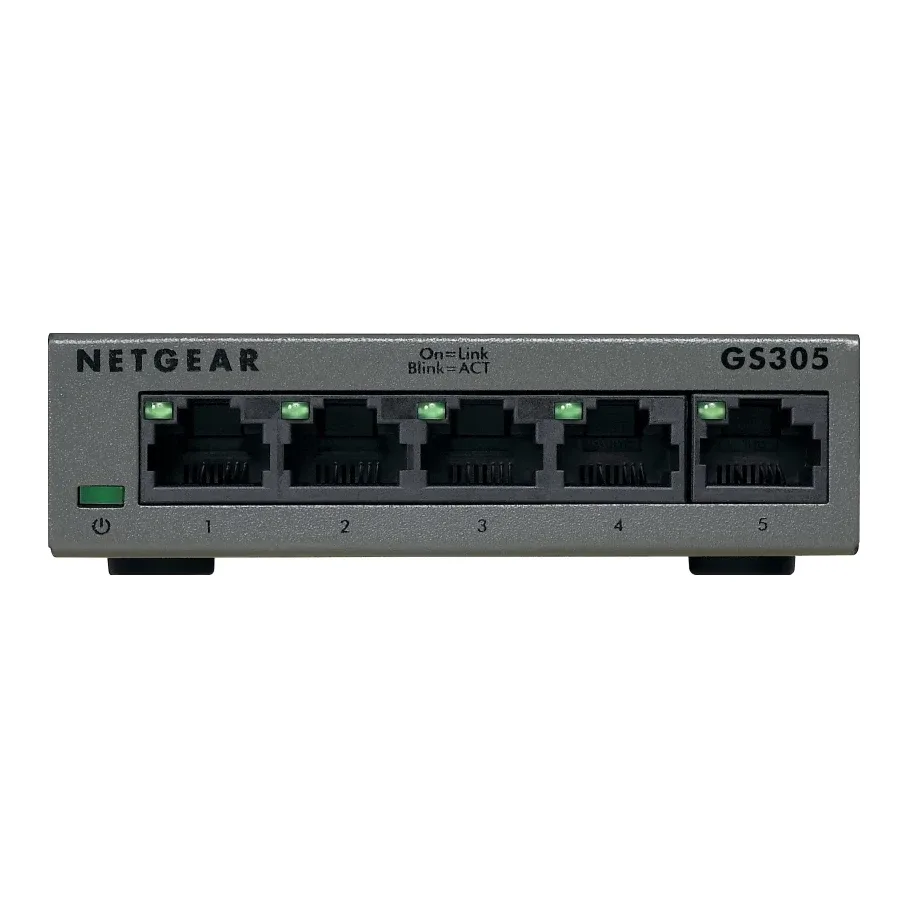

NETGEAR GS305 - V3 - switch - unmanaged - 5 x 10/100/1000 - desktop, wall-mountable

Description

SOHO Ethernet Switch Series
Expanding Wired Connectivity for SOHO Networks

The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home/offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, etc. With these Plug-and-Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 ports to 48 ports, these switches also support energy saving technologies to help you save power and money.

Specifications

Management features

Switch type	Unmanaged
Quality of Service (QoS) support	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	5

Network

Networking standards	IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support	Yes
Full duplex	Yes
Auto MDI/MDI-X	Yes

Data transmission

Switching capacity	10 Gbit/s
MAC address table	2000 entries
Latency (1 Gbps)	2.6 µs
Jumbo frames support	Yes
Jumbo frames	9216
Packet forwarding rate (1 Gbps)	1448000 pps
Packet buffer memory	0.128 MB

Security

Queue scheduling algorithms	Weighted Round Robin (WRR)

Design

Rack mounting	No
Stackable	No
Product colour	Black
Housing material	Metal
LED indicators	Activity, Link, Power
Wall mountable	Yes

Performance

Fanless	Yes
Mean time between failures (MTBF)	3831422 h

Power

DC input voltage	5 V
Input current	0.7 A
Power consumption (max)	2.15 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	No

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Heat dissipation	7.35 BTU/h

Weight & dimensions

Width	101 mm
Depth	94 mm
Height	29 mm
Weight	250 g

Packaging data

Package width	142 mm
Package depth	238 mm
Package height	64 mm
Package weight	484 g

Certificates

Certification	CE Mark, FCC Part 15 Class B, IC Class B, RCM, VCCI, CB, CE LVD

Logistics data

Harmonized System (HS) code	85176990
