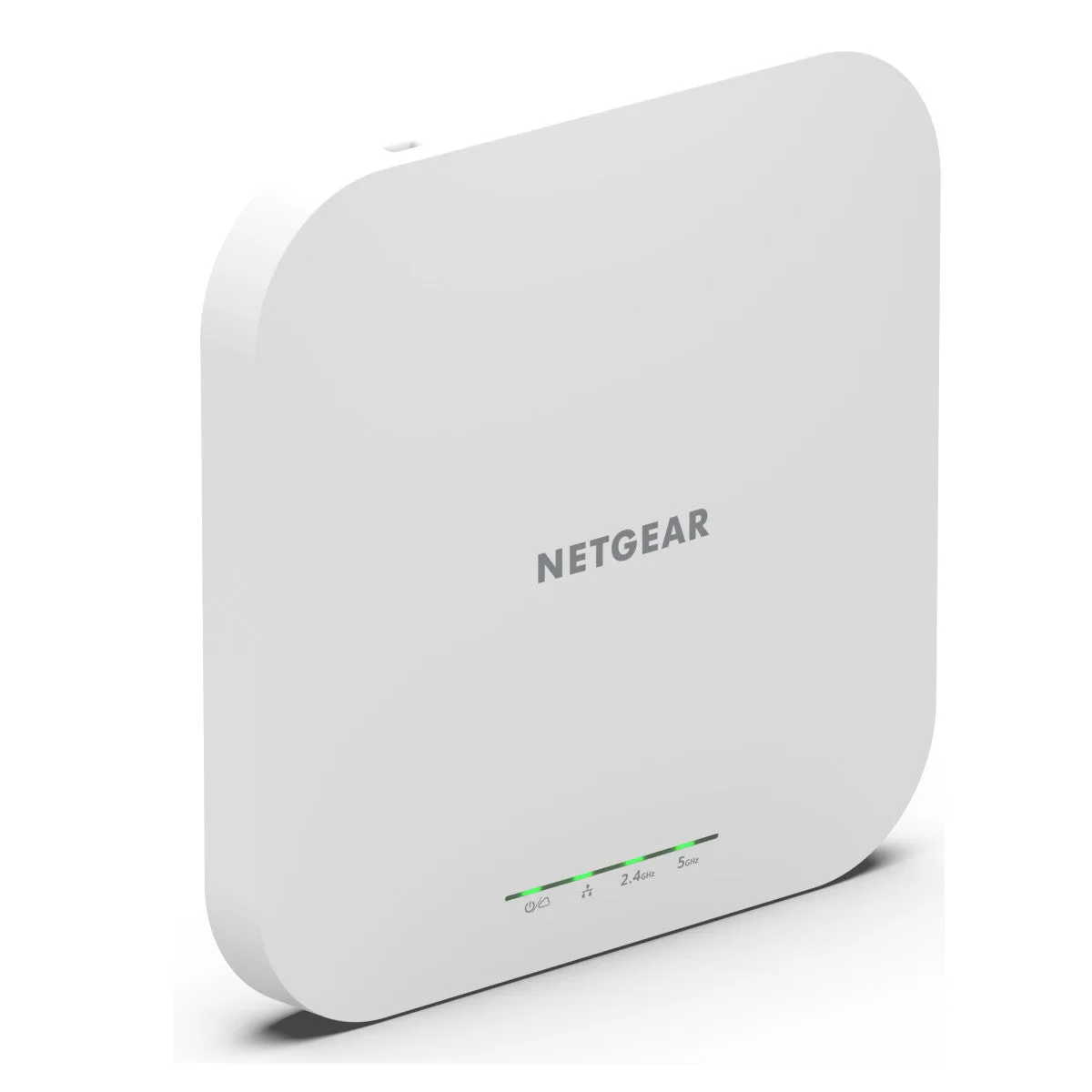

NETGEAR Insight WAX610 - Radio access point - Wi-Fi 6 - 2.4 GHz, 5 GHz - cloud-managed

Description

Netgear WAX610 802.11ax 1.76 Gbit/s Wireless Access Point - 2.40 GHz, 5 GHz - MIMO Technology - 1 x Network (RJ-45) - 2.5 Gigabit Ethernet - PoE Ports - Ceiling Mountable, Wall Mountable

Overview

Netgear INSIGHT MGD WIFI 6 AX1800 AP is listed under manufacturer code WAX610-100EUS. It sits within the Wireless Access Points category. DCS Components can help source this item as part of a quote-led procurement request.

Key product details

• Manufacturer code: WAX610-100EUS
• Category: Wireless Access Points
• EAN: 0606449149227

Procurement and setup support

DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.

Specifications

Features

2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	1800 Mbit/s
Maximum data transfer rate (2.4 GHz)	600 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Number of users	250 user(s)
Auto MDI/MDI-X	Yes
MIMO	Yes
MIMO type	Multi User MIMO
Spread spectrum method	OFDM, OFDMA
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes

Security

Security algorithms	EAP-PEAP, EAP-TLS, EAP-TTLS, PEAP, SSH, SSL/TLS, WPA, WPA2, WPA2-Enterprise, WPA3
MAC address filtering	Yes
Service Set Identifier (SSID) features	Multiple SSIDs, SSID broadcast, SSID broadcast on/off
Number of SSID supported	8
Auto Wireless Distribution System (WDS)	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes

Power

Power over Ethernet (PoE)	Yes
AC input voltage	12 V
Input current	2.5 A

Design

Placement	Ceiling, Wall
Product colour	White
Reset button	Yes
LED indicators	LAN, Power, Status

Antenna

Antenna type	Internal
Antenna gain level (max)	4.5 dBi

Weight & dimensions

Width	160.9 mm
Depth	160.9 mm
Height	33.2 mm
Weight	412 g

Packaging data

Package width	220 mm
Package depth	455 mm
Package height	235 mm
Package weight	3.98 kg

Packaging content

Quantity per pack	1 pc(s)
Mounting kit	Yes

Operational conditions

Operating temperature (T-T)	0 - 40 °C

Logistics data

Harmonized System (HS) code	85176990
