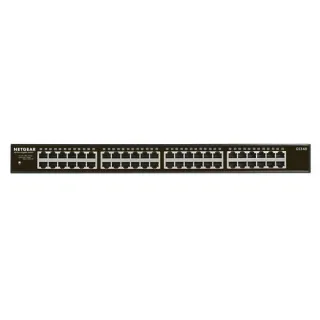

NETGEAR SOHO GS348 - Switch - unmanaged - 48 x 10/100/1000 - desktop, rack-mountable

Description

Expanding Wired Connectivity for SOHO Networks
NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.

- Auto-MDI/MDIX eliminates the need for crossover cables
- LED indicators for ease of use
- Energy-efficient technology for power savings
- Fanless design for silent operation
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Non-blocking switching architecture for maximum throughput at wire speed
- 802.1p QoS for traffic/frame prioritization
- Plug-and-play; no setup required
- Durable and rugged metal case
- Ideal for small office and home networks
- Standards-based technology ensures interoperability with any standards-based devices in the existing network
- GS316 and GS324 are wall-mountable
- GS324 and GS348 are rack-mountable (rackmount kit included)

Specifications

Management features

Switch type	Unmanaged
Quality of Service (QoS) support	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack

Network

Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support	No
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s

Data transmission

Switching capacity	96 Gbit/s
MAC address table	16000 entries
Latency (1 Gbps)	4 µs
Jumbo frames support	Yes
Jumbo frames	9216
Packet forwarding rate (1 Gbps)	1448000 pps

Design

Rack mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	Activity, Link, Power

Performance

Plug and Play	Yes

Power

Power source	AC
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Input current	1 A
Power consumption (typical)	8.81 W
Power consumption (max)	23 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	No

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Heat dissipation	7866 BTU/h

Weight & dimensions

Width	440 mm
Depth	204 mm
Height	43.2 mm
Weight	3.15 kg

Logistics data

Harmonized System (HS) code	85176990
