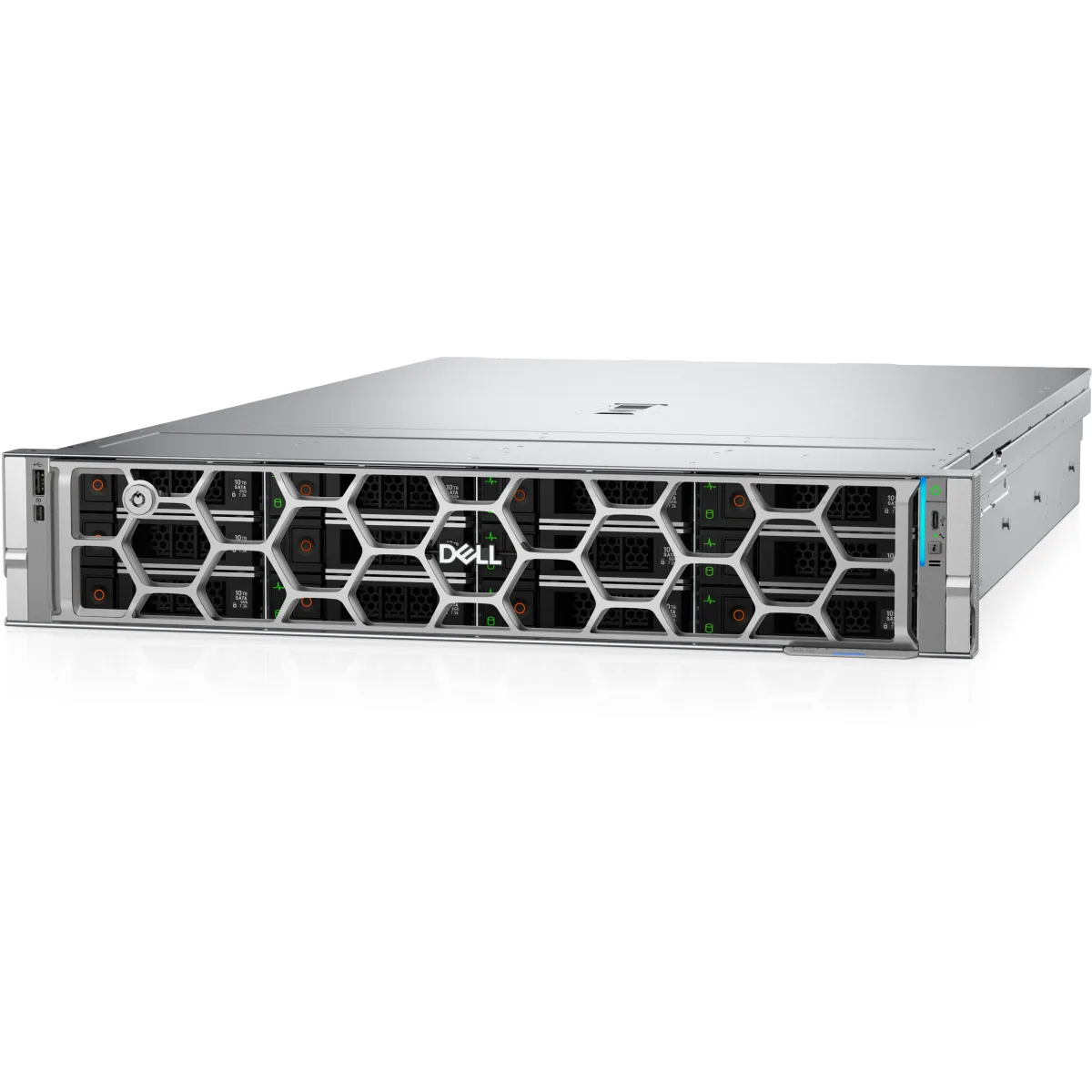

PowerEdge R570 Intel Xeon 6 Performance 6517P 3.2G, 16C/32T, 24GT/s, 72M Cache, Turbo, (190W) DDR5-6400 1x 32GB RDIMM, 6400MT/s, Dual Rank 2x 960GB SSD SATA Read Intensive 6Gbps 512e 2.5in Hot-plug AG Drive, 1 DWPD - FGA ONLY no Graphics 2U Combo Drop-In/Stab-In Rails Riser Config 5, Rear Full Height 2x16 FH (Gen5), 1x16 FLOP OCP, 1x16 Onboard OCP PowerEdge 2U Standard Bezel 1 OCP - 1 Rear Blank, No Cable C7, Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed) PERC H965i Controlle

Specifications

Processor

Processor manufacturer	Intel
Processor family	Intel Xeon 6
Processor model	6517P
Processor frequency	3.2 GHz
Processor boost frequency	4.2 GHz
Processor cores	16
Processor cache	72 MB
Number of processors installed	1
Thermal Design Power (TDP)	190 W
System bus rate	24 GT/s
Processor threads	32
Memory types supported by processor	DDR5-SDRAM
Memory clock speeds supported by processor	6400 MHz

Memory

Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Buffered memory type	Registered (buffered)
Memory ranking	2
Memory slots	16x DIMM
Memory layout (slots x size)	1 x 32 GB
Memory data transfer rate	6400 MT/s
Maximum internal memory	1 TB

Storage

Total storage capacity	1.92 TB
Number of SSDs installed	2
SSD capacity	960 GB
SSD interface	SATA III
SSD size	2.5"
Supported SSD sizes	2.5"
Number of SSDs supported	16
RAID support	Yes
Supported RAID controllers	PERC H965i Controller, Front, DC-MHS
Hot-Plug support	Yes
Optical drive type	No
Drive writes per day (DWPD)	1

Ports & interfaces

Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
VGA (D-Sub) ports quantity	1

Expansion slots

PCI Express x16 (Gen 5.x) slots	2

Design

Chassis type	Rack (2U)
Product colour	Black
Bezel	Yes

Performance

Remote administration	iDRAC10, Enterprise 17G

Software

Operating system installed	No
Compatible operating systems	Canonical Ubuntu Server LTS RedHat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi Windows Server Windows Server Datacenter

Power

Redundant power supply (RPS) support	Yes
Power supply	1100 W
Number of redundant power supplies installed	2
Power supply input voltage	100 - 240 V

Certificates

80 PLUS certification	80 PLUS Titanium

Carbon footprint

Total carbon footprint (kg of CO2e)	1247
Total carbon emissions, standard deviation (kg of CO2e)	101
Carbon emissions, manufacturing (kg of CO2e)	463.884
Carbon emissions, logistics (kg of CO2e)	209.496
Carbon emissions, energy usage (kg of CO2e)	537.457
Carbon emissions, end-of-life (kg of CO2e)	37.41
PAIA version	PAIA 1.4.7, 2025

Weight & dimensions

Width	482 mm
Height	86.8 mm

Packaging content

Packaging content	2x Rack Power Cord 2M (C13/C14 12A) - FGA Only 2U Combo Drop-In/Stab-In Rails,Riser Config 5

Other features

Data transfer rate	6 Gbit/s
Bytes per sector	512e
Target workload	Read Intensive (RI)
Open Compute Project (OCP)	1x16 FLOP, 1x16 Onboard, 1 Rear Blank
