Manufacturer Code: DK30CH2DPPDU
Overview

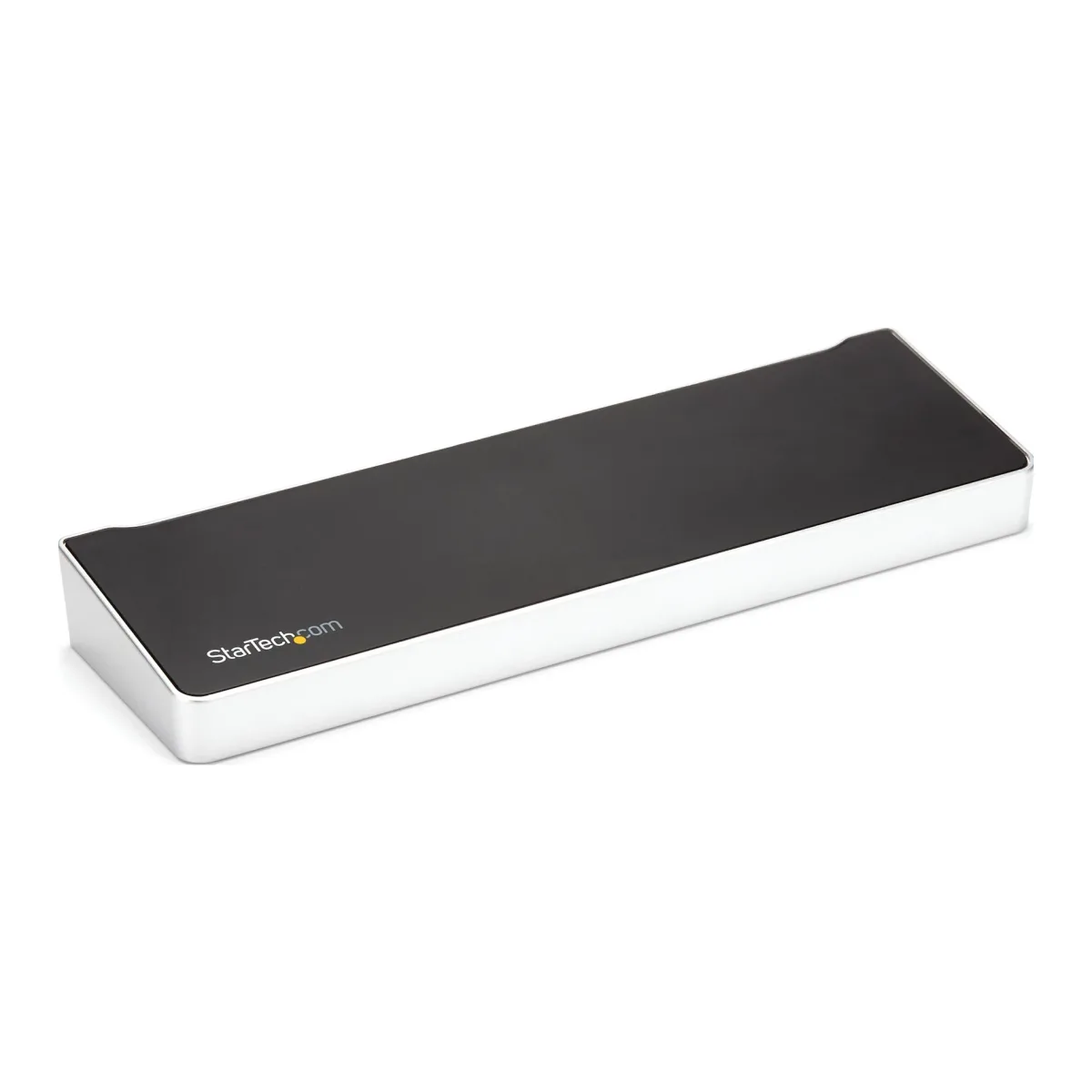

Startech 4K USB-C Dock - Triple Monitor - Mac & Windows - 60W USB PD (DK30CH2DPPDU) - Docking station - USB-C - HDMI, 2 x DP - 1GbE - 60 Watt - United Kingdom, Europe is available through DCS Components. It sits within the Monitors category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030871143
| Connectivity technology | Wired |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Microphone in | Yes |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Card reader integrated | No |
|---|---|
| Data transfer rate | 6 Gbit/s |
| Maximum digital resolution | 4096 x 2160 pixels |
| Cable lock slot | Yes |
| Product colour | Black, Silver |
| On/off switch | Yes |
| UASP support | Yes |
| Brand compatibility | Any brand |
| Certification | CE, FCC, TAA |
| AC input voltage | 100 - 240 V |
|---|---|
| Input current | 2 A |
| Power supply | 60 W |
| Output voltage | 20 V |
| Output current | 6 A |
| Compatible power plug types | EU, UK |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
|---|---|
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura |
| Other operating systems supported | ChromeOS |
| Operating temperature (T-T) | 0 - 60 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |

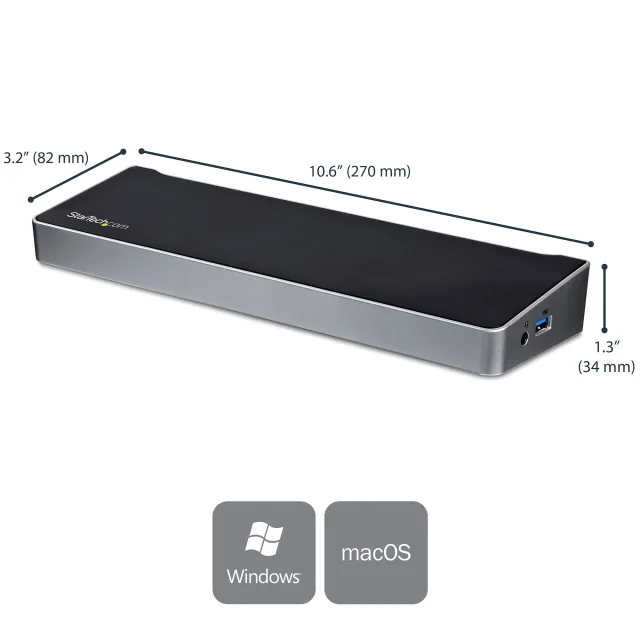

| Width | 82 mm |
|---|---|
| Depth | 270 mm |
| Height | 34 mm |
| Weight | 385 g |
| Package width | 161 mm |
|---|---|
| Package depth | 296 mm |
| Package height | 71 mm |
| Package weight | 1.45 kg |
| Cables included | USB Type-C |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Compliance certificates | RoHS |
|---|
| Products per master (outer) case | 10 pc(s) |
|---|---|
| Master (outer) case width | 318 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 382 mm |
| Harmonized System (HS) code | 84733020 |
| Chipset | DisplayLink - DL-6950, Genesys Logic - GL3523, Texas Instruments - TPS65982, Parade Technologies - PS176 |
|---|---|
| Number of microphone inputs | 1 |
