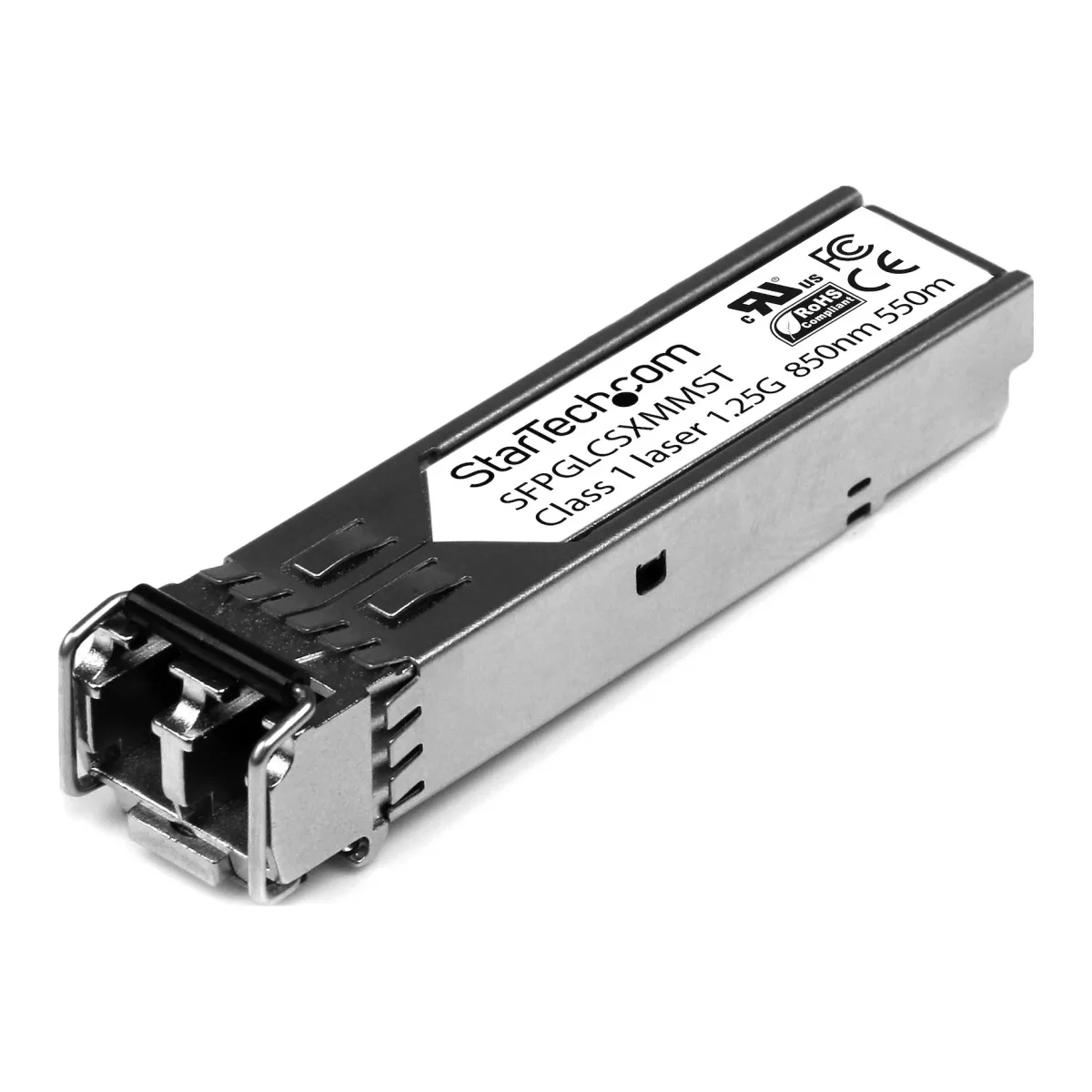

Startech Cisco GLC-SX-MM Compatible SFP Module, 1000BASE-SX, 1GbE Multimode Fiber MMF Optic Transceiver, Gigabit Ethernet SFP, LC Connector, 550m, 850nm, Cisco IE3400, IE3300, IE3200 (SFPGLCSXMMST) - SFP (mini-GBIC) transceiver module - 1GbE - 1000Base-SX - LC multi-mode - up to 550 m - 850 nm - for P/N: ET91000SFP2, ET91000SFP2C, IES101002SFP, MCM1110SFP, PEX1000SFP2

Description

Manufacturer Code: SFPGLCSXMMST

Overview

Startech Cisco GLC-SX-MM Compatible SFP Module, 1000BASE-SX, 1GbE Multimode Fiber MMF Optic Transceiver, Gigabit Ethernet SFP, LC Connector, 550m, 850nm, Cisco IE3400, IE3300, IE3200 (SFPGLCSXMMST) - SFP (mini-GBIC) transceiver module - 1GbE - 1000Base-SX is available through DCS Components. It sits within the Switch Transceivers (GBIC/SFP) category.

Key product details

• SFP (mini-GBIC) transceiver module
• 1GbE
• 1000Base-SX

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030849692

Specifications

Performance

SFP transceiver type	Fiber optic
Maximum data transfer rate	1250 Mbit/s
Interface type	SFP
Multi-mode fiber (MMF) supported	Yes
Fiber optic connector	LC
SFP transceiver standard	SX
Maximum transfer distance	550 m
Wavelength	850 nm
Networking standards	IEEE 802.3z
Duplex system	Full, Half
Digital Diagnostics Monitoring (DDM)	No
Wavelength-division multiplexing (WDM)	No

Features

Product colour	Silver
Hot-swap	Yes
Mean time between failures (MTBF)	3381761 h
Brand compatibility	Cisco
Compatible products	GLC-SX-MM

Power

Power consumption (typical)	1 W

Certificates

Compliance certificates	RoHS
Certification	CE, FCC, UL, REACH

Operational conditions

Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	30 - 70%

Weight & dimensions

Width	12 mm
Depth	60 mm
Height	10 mm
Weight	16 g

Packaging content

Quantity per pack	1 pc(s)

Packaging data

Package width	95 mm
Package depth	118 mm
Package height	32 mm
Package weight	95 g

Logistics data

Master (outer) case width	260 mm
Master (outer) case length	305 mm
Harmonized System (HS) code	85369010
Master (outer) case height	205 mm
Products per master (outer) case	36 pc(s)
