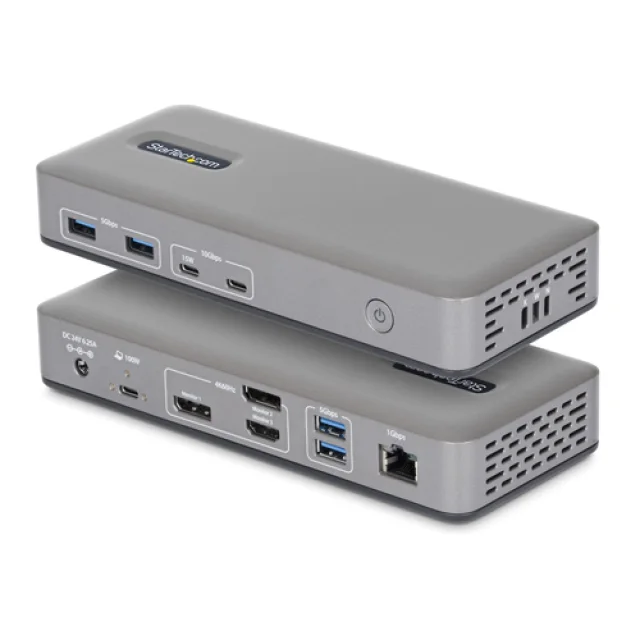

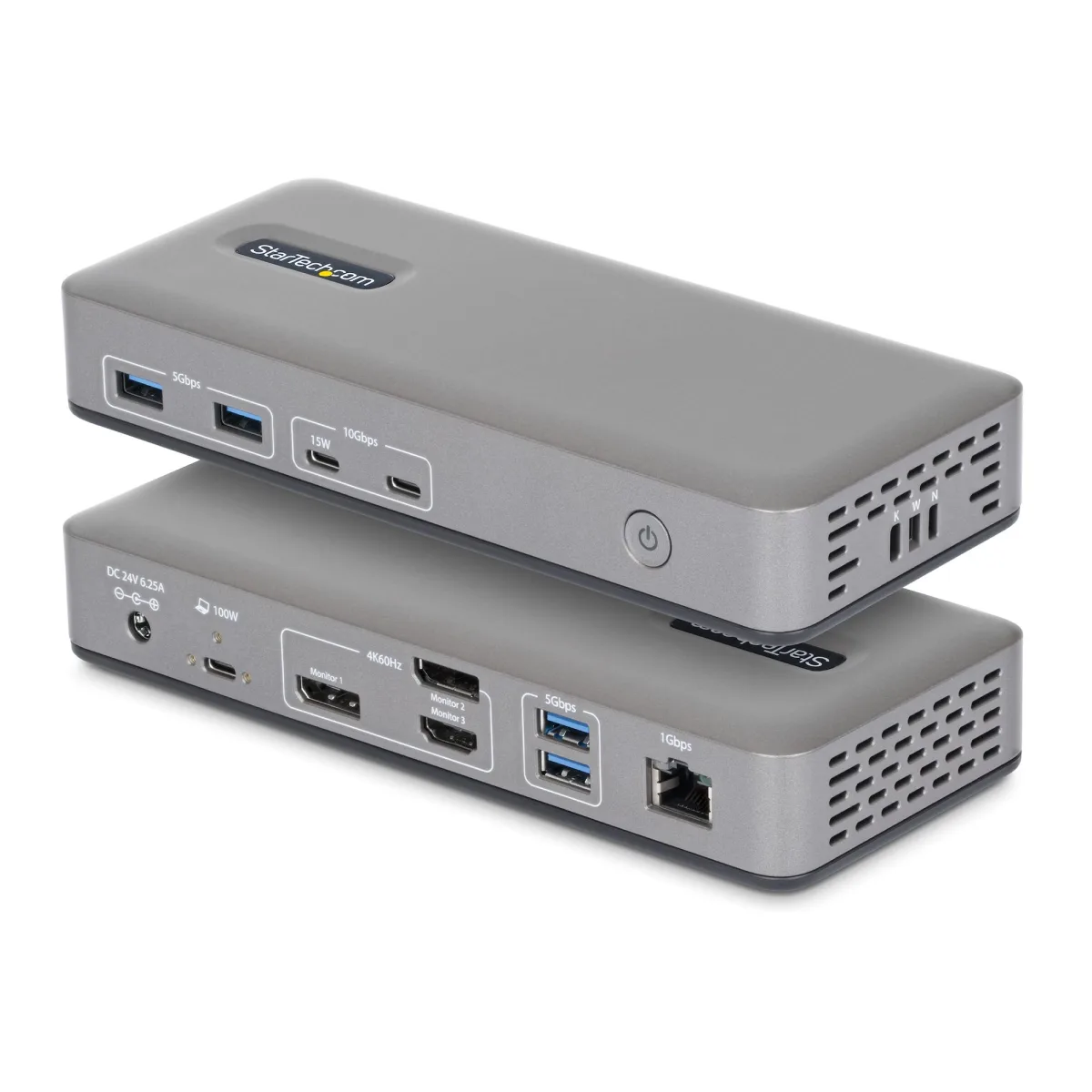

Startech - Docking station - for laptop - USB-C 3.2 Gen 2 - HDMI, 2 x DP - 1GbE - United Kingdom, Europe

Description

Manufacturer Code: 199UE-USBC-DOCK

Overview

Startech - Docking station - for laptop - USB-C 3.2 Gen 2 - HDMI, 2 x DP - 1GbE - United Kingdom, Europe is available through DCS Components. It sits within the Docking Stations category.

Key product details

• Docking station
• for laptop
• USB-C 3.2 Gen 2
• HDMI, 2 x DP
• 1GbE

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030921817

Specifications

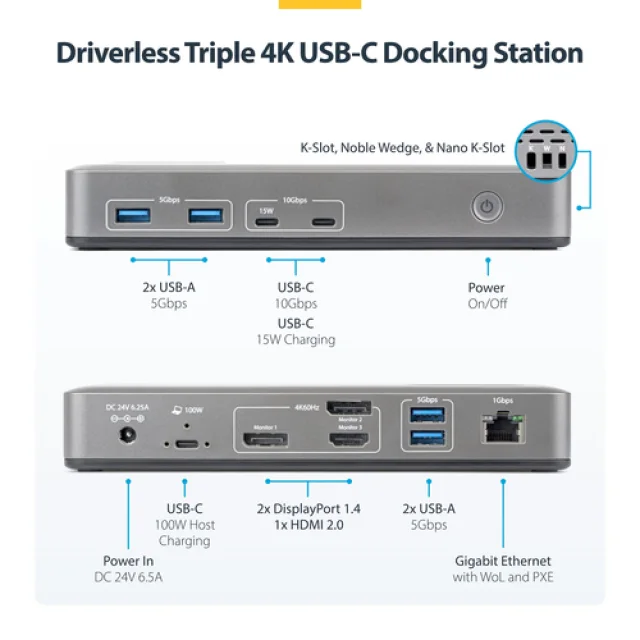

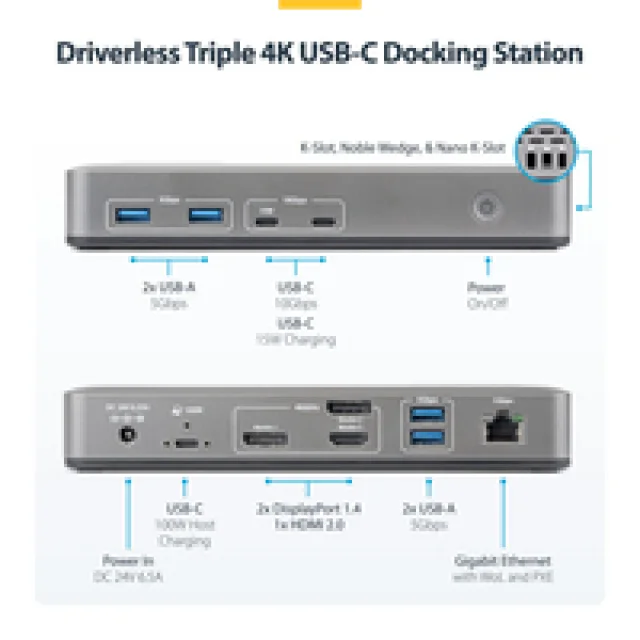

Ports & interfaces

Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	1
DisplayPort version	1.4
Microphone in	No
DC-in jack	Yes

Network

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Wake-on-LAN ready	Yes
Full duplex	Yes

Performance

Card reader integrated	No
Data transfer rate	10 Gbit/s
HD type	4K Ultra HD
Maximum digital resolution	4096 x 2160 pixels
Number of displays supported	2
Cable lock slot	Yes
Cable lock slot type	Kensington, Nano, Wedge, Noble
Product colour	Grey
On/off switch	Yes
LED indicators	Yes
Mean time between failures (MTBF)	84290 h

Power

AC input voltage	100 - 240 V
Input current	2.5 A
Output voltage	24 V
Output current	6.25 A
Power consumption (typical)	150 W
Compatible power plug types	EU, UK

Software

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supported	Ubuntu 24.04 LTS

Operational conditions

Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	10 - 70 °C
Operating relative humidity (H-H)	10 - 85%

Weight & dimensions

Width	79 mm
Depth	190 mm
Height	27 mm
Weight	300 g

Packaging data

Package width	250 mm
Package depth	205 mm
Package height	50 mm
Package weight	1 kg

Packaging content

Cables included	USB Type-C
AC adapter included	Yes

Technical details

Compliance certificates	RoHS, Federal Communications Commission (FCC)

Logistics data

Products per master (outer) case	10 pc(s)
Master (outer) case width	430 mm
Master (outer) case length	270 mm
Master (outer) case height	280 mm

Other features

Chipset	VMM5320, VL103R, VL171, VL822, VP226, VL817, RTL8153E
