Manufacturer Code: 215UE-TB5USB4DOCK
Overview

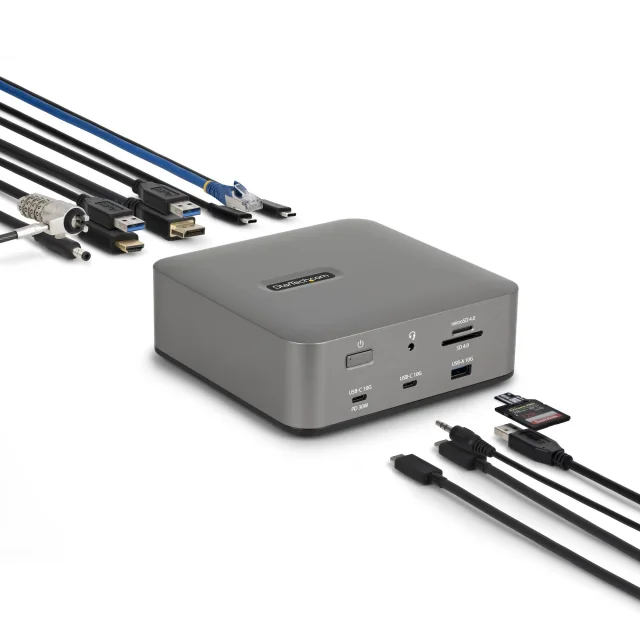

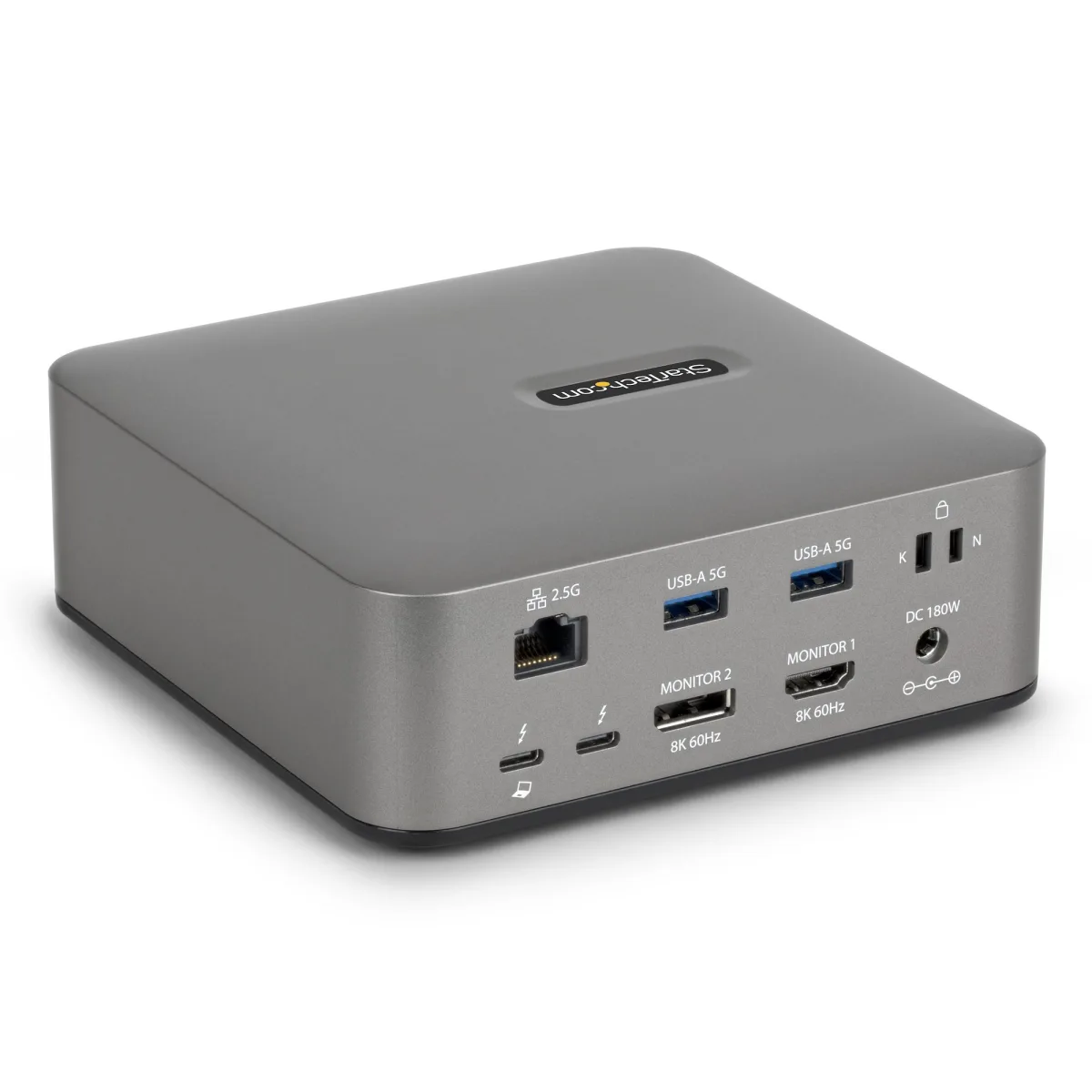

Startech - Docking station - for tablet, laptop - USB-C / USB4 / Thunderbolt 3 / Thunderbolt 4 / Thunderbolt 5 / USB-A - HDMI, DP - 1GbE - 180 Watt - TAA Compliant - United Kingdom, Europe is available through DCS Components. It sits within the Docking Stations category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030923118
| Connectivity technology | Wired |
|---|---|
| Host interface | Thunderbolt 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 140 W |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Thunderbolt 5 ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wake-on-LAN ready | Yes |
| Networking standards | IEEE 802.3bz |
| Full duplex | Yes |
| Card reader integrated | Yes |
|---|---|
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Data transfer rate | 40 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 3 |
| Maximum refresh rate | 144 Hz |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington, Nano |
| Product colour | Grey |
| On/off switch | Yes |
| LED indicators | Yes |
| UASP support | Yes |
| Housing material | Plastic |
| Output voltage | 20 V |
|---|---|
| Output current | 9 A |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
|---|---|
| Mac operating systems supported | Mac OS X 15.0 Sequoia |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Width | 150 mm |
|---|---|
| Depth | 140 mm |
| Height | 50 mm |
| Weight | 592 g |
| Package width | 302 mm |
|---|---|
| Package depth | 6.7 mm |
| Package height | 59 mm |
| Package weight | 1.8 kg |
| Cables included | Thunderbolt |
|---|---|
| AC adapter included | Yes |
| User guide | Yes |
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
|---|
| Products per master (outer) case | 5 pc(s) |
|---|---|
| Master (outer) case width | 360 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 170 mm |
| Chipset | Intel - JHL9480 (Barlow Ridge), Synaptics - VMM7100, VIA Labs - VL822, VIA Labs - VL817, Realtek - RTL8156B, Genesys Logic - GL3231S, Parade - FL5801, Realtek - ALC4030U |
|---|
