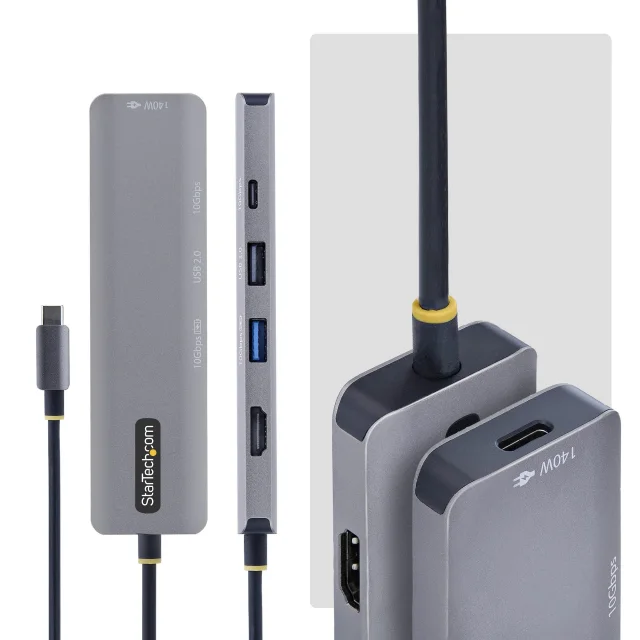

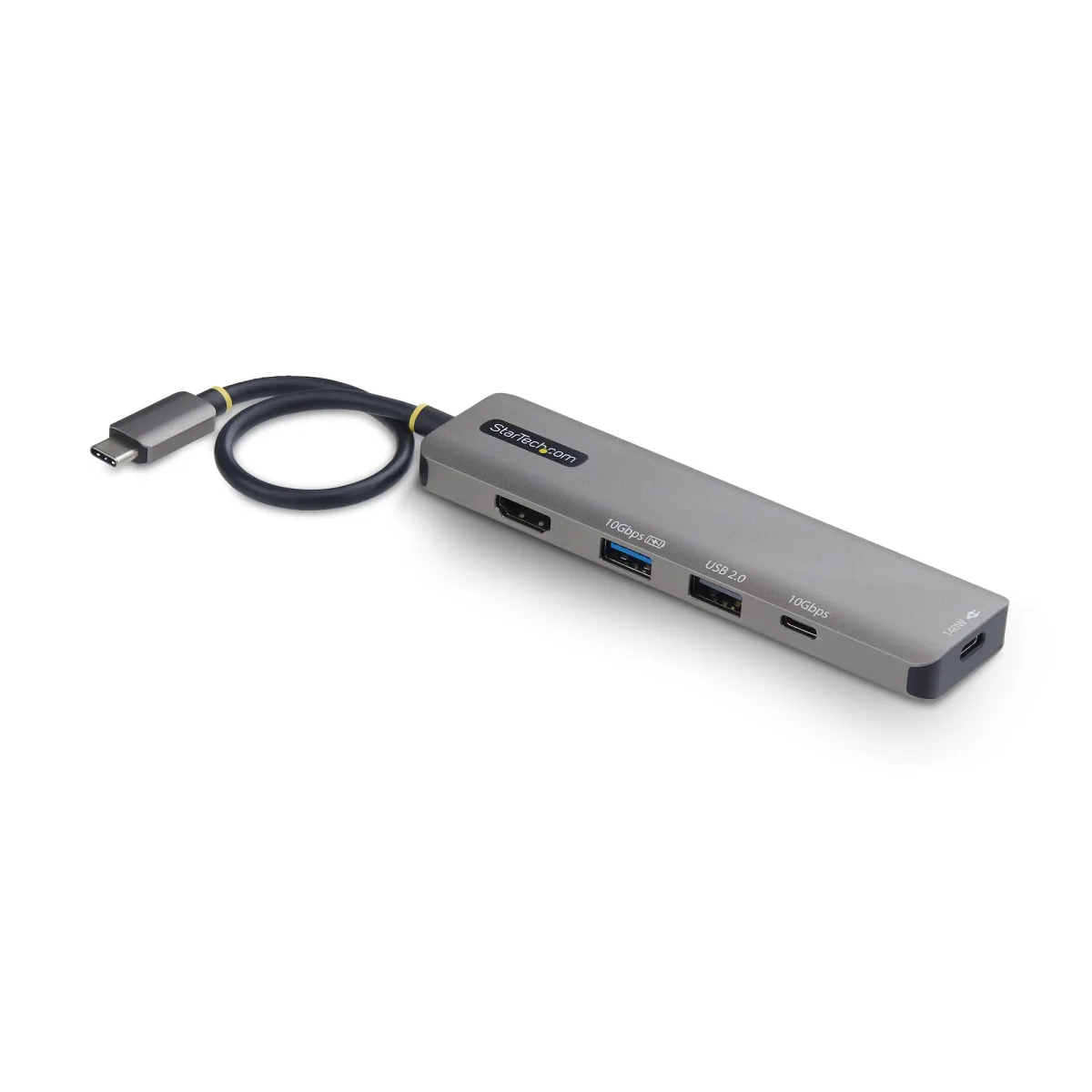

Startech - Docking station - USB-C 3.2 Gen 2 - HDMI

Description

Manufacturer Code: 164B-USBC-MULTIPORT

Overview

Startech - Docking station - USB-C 3.2 Gen 2 - HDMI is available through DCS Components. It sits within the Docking Stations category.

Key product details

• Docking station
• USB-C 3.2 Gen 2
• HDMI

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030901017

Specifications

Ports & interfaces

Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.2
USB Power Delivery up to	140 W
HDMI ports quantity	1
HDMI version	2.0
Microphone in	No

Network

Ethernet LAN	No

Performance

Card reader integrated	No
Data transfer rate	10 Gbit/s
HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 pixels
Product colour	Grey
UASP support	Yes
Housing material	Aluminium, Plastic

Power

Power source type	USB
Output voltage	5 V
Power consumption (typical)	15 W
USB cable length	0.2 m

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%

Weight & dimensions

Width	34 mm
Depth	127 mm
Height	11 mm
Weight	78 g

Packaging data

Package width	170 mm
Package depth	142 mm
Package height	30 mm
Package weight	106 g

Packaging content

User guide	Yes

Technical details

Compliance certificates	Federal Communications Commission (FCC), RoHS

Logistics data

Products per master (outer) case	30 pc(s)
Master (outer) case width	530 mm
Master (outer) case length	330 mm
Master (outer) case height	310 mm

Other features

Chipset	Parade - PS188
