Manufacturer Code: SFP10GBLRST
Overview

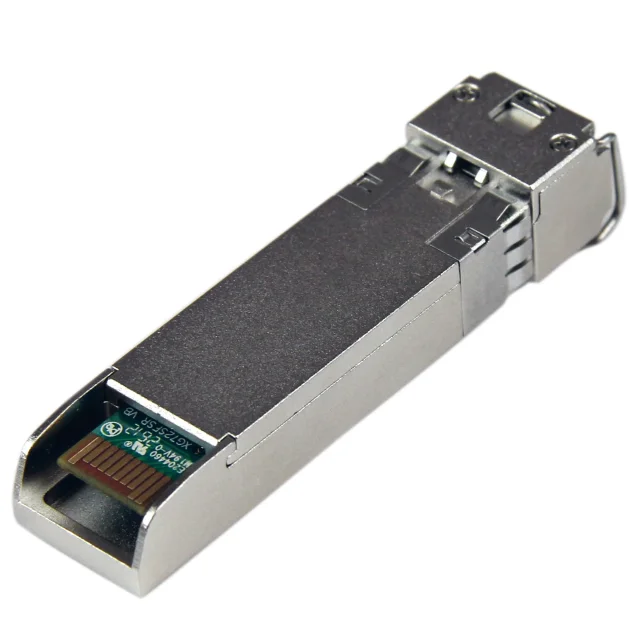

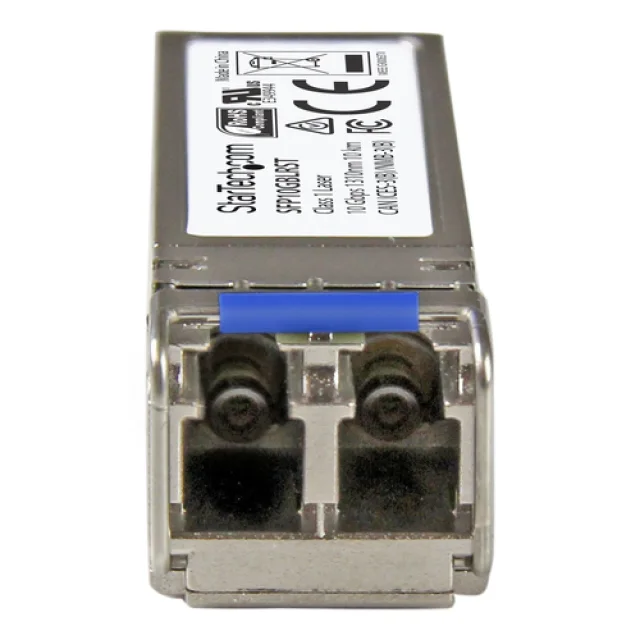

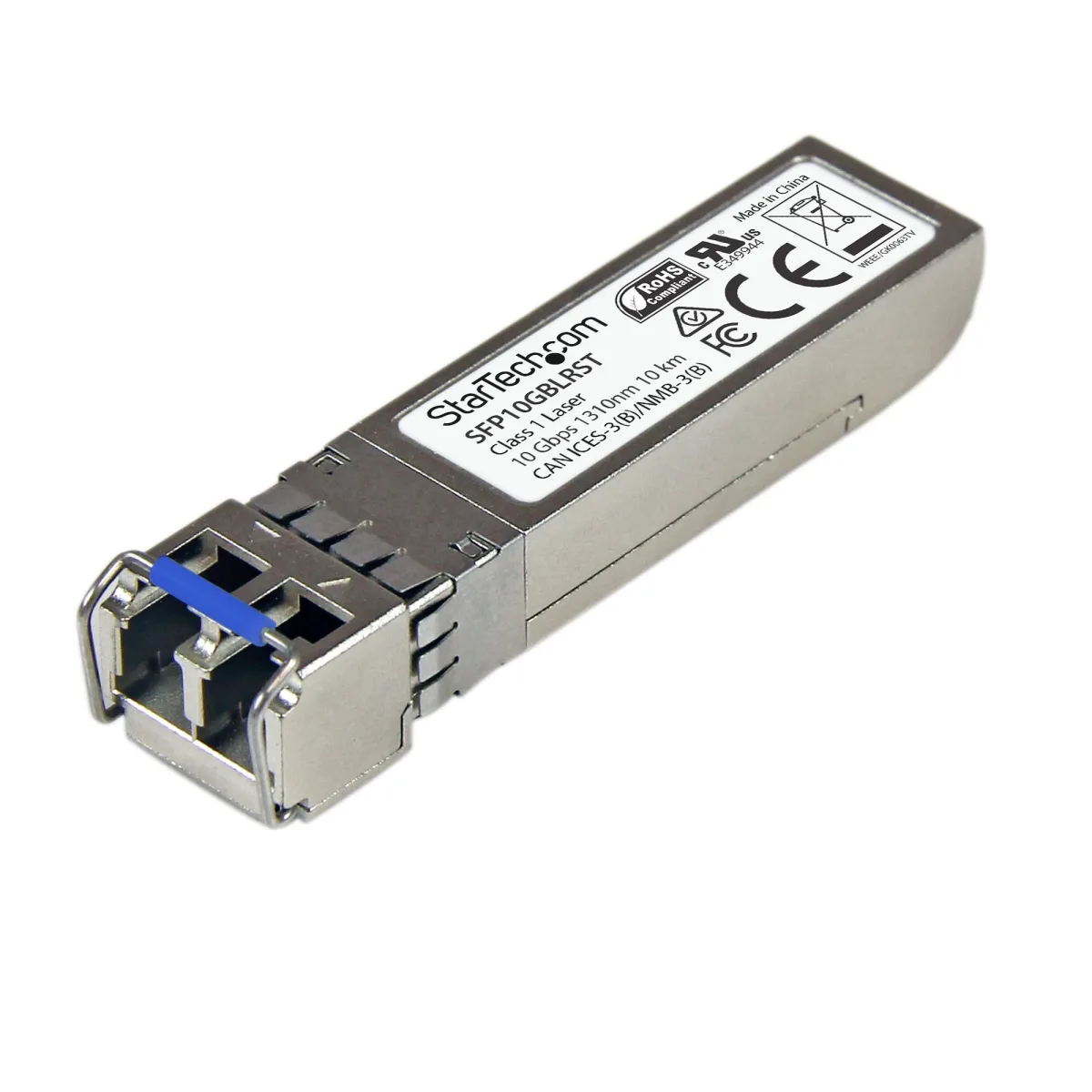

Startech MSA Uncoded Compatible SFP+ Module, 10GBASE-LR, 10GbE Single Mode (SMF) Fiber Optic Transceiver, 10GE Gigabit Ethernet SFP+, LC Connector, 10km, 1310nm, DDM, Mini GBIC Module (SFP10GBLRST) - SFP+ transceiver module - 10GbE - 10GBase-LR - LC singl is available through DCS Components. It sits within the Switch Transceivers (GBIC/SFP) category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030873437
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LR |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Networking standards | IEEE 802.3ae |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Wavelength-division multiplexing (WDM) | No |
| Product colour | Silver |
|---|---|
| Housing material | Aluminium |
| Hot-Plug support | Yes |
| Power consumption (typical) | 1.3 W |
|---|
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, FCC, UR |
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 13.9 mm |
|---|---|
| Depth | 58.4 mm |
| Height | 12.6 mm |
| Weight | 22 g |
| Quantity per pack | 1 pc(s) |
|---|
| Package width | 90 mm |
|---|---|
| Package depth | 115 mm |
| Package height | 30 mm |
| Package weight | 52 g |
| Master (outer) case width | 320 mm |
|---|---|
| Master (outer) case length | 405 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 320 mm |
| Products per master (outer) case | 80 pc(s) |
| Country of origin | China |
