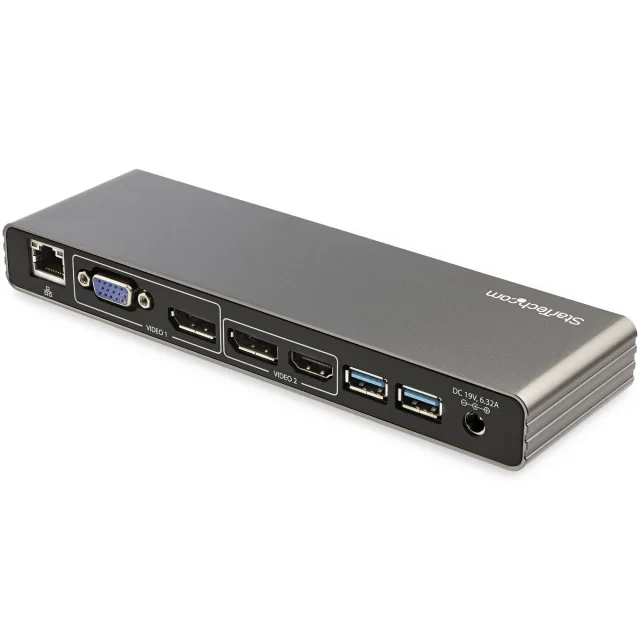

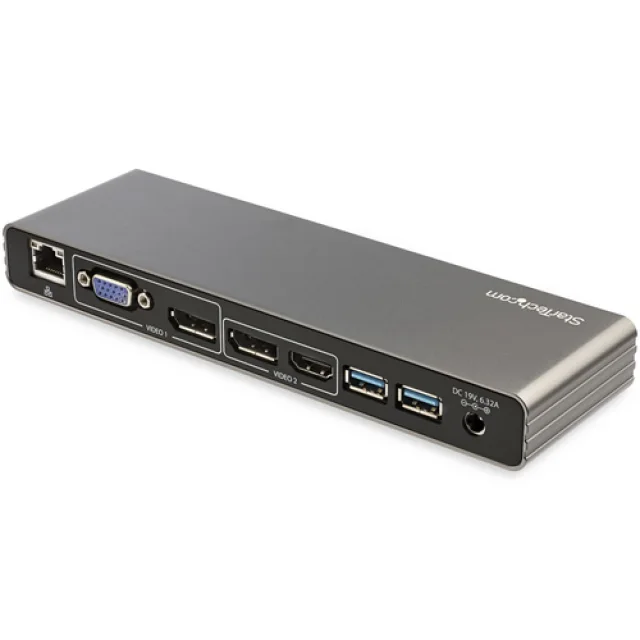

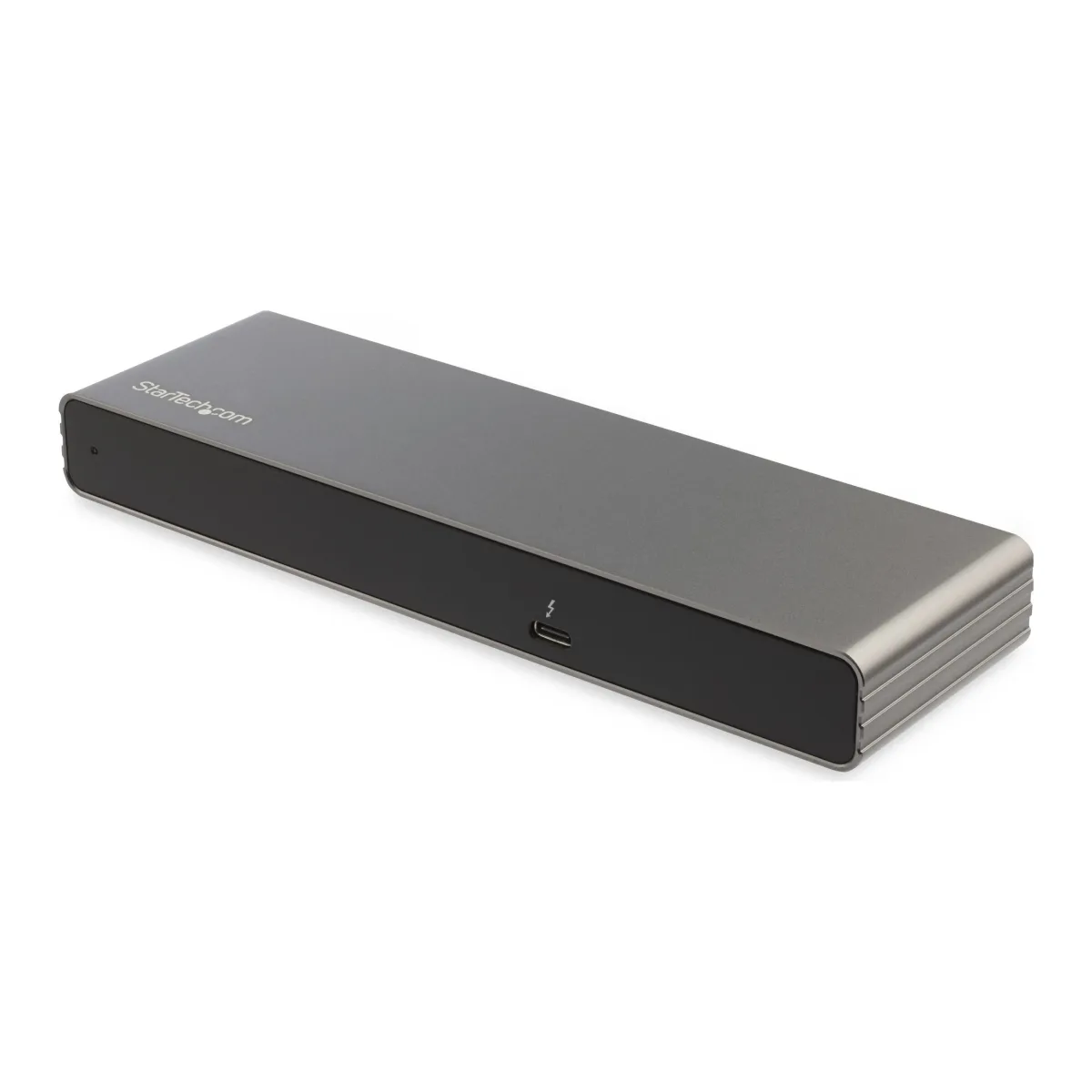

Startech Thunderbolt 3 Dock, Dual 4K 60Hz Monitor TB3 Docking Station with DisplayPort, HDMI & 1080p VGA, 85W Power Delivery & Charging, Gigabit Ethernet, Universal Thunderbolt 3 Dock - TB3 Dock w/ 85W PD (TB3DK2DHVUE) - Docking station - Thunderbolt 3 - VGA, HDMI, 2 x DP - 1GbE - United Kingdom, Europe

Description

Manufacturer Code: TB3DK2DHVUE

Overview

Startech Thunderbolt 3 Dock, Dual 4K 60Hz Monitor TB3 Docking Station with DisplayPort, HDMI & 1080p VGA, 85W Power Delivery & Charging, Gigabit Ethernet, Universal Thunderbolt 3 Dock - TB3 Dock w/ 85W PD (TB3DK2DHVUE) - Docking station - Thunderbolt 3 - is available through DCS Components. It sits within the Docking Stations category.

Key product details

• TB3 Dock w/ 85W PD (TB3DK2DHVUE)
• Docking station
• Thunderbolt 3 -

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030876247

Specifications

Ports & interfaces

Connectivity technology	Wired
Host interface	Thunderbolt 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	85 W
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	2
Microphone in	No
DC-in jack	Yes

Network

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X	Yes
Full duplex	Yes

Performance

Card reader integrated	No
HD type	4K Ultra HD
Maximum digital resolution	4096 x 2160 pixels
Product colour	Grey
UASP support	Yes
Housing material	Aluminium
Certification	CE, FCC, REACH

Power

Power source type	AC
AC input voltage	100 - 240 V
Input current	1.8 A
Output voltage	19 V
Output current	6.32 A
Power consumption (typical)	120 W
Power plug type	Type N
Compatible power plug types	EU, UK

Software

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Mac operating systems supported

Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 80%

Weight & dimensions

Width	58.6 mm
Depth	196 mm
Height	24 mm
Weight	340 g

Packaging data

Package width	187 mm
Package depth	254 mm
Package height	65 mm
Package weight	1.3 kg

Packaging content

Cables included	AC, Thunderbolt
AC adapter included	Yes
Manual	Yes

Technical details

Compliance certificates	RoHS

Logistics data

Products per master (outer) case	20 pc(s)
Master (outer) case width	390 mm
Master (outer) case length	676 mm
Master (outer) case height	280 mm
Harmonized System (HS) code	84733020

Other features

Cable length	0.5 m
Chipset	Intel - Alpine Ridge JHL6540, Intel - WGI210AT, ASMedia - ASM1042A, Parade - PS176, Chrontel - CH7517
