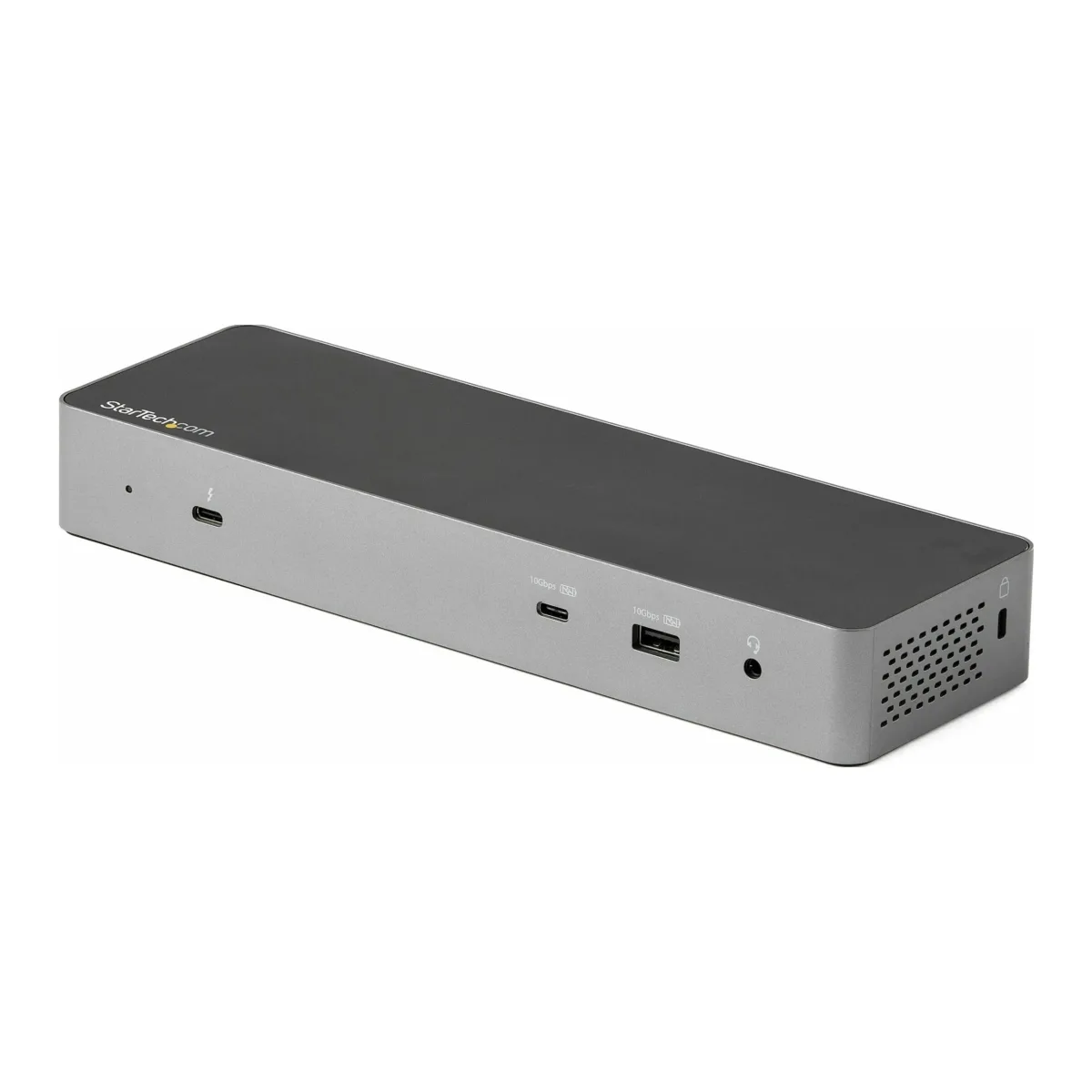

Startech Thunderbolt 3 Dock with USB-C Host Compatibility, Dual 4K 60Hz DisplayPort 1.4 or Dual HDMI 2.0 Monitors, Single 8K, TB3/USB-C Laptop Docking Station, 96W PD, 5x USB, 10Gbps - 96W Power Delivery (TB3CDK2DHUE) - Docking station - USB-C 3.2 Gen 2 / Thunderbolt 3 - 2 x HDMI, 2 x DP - 1GbE

Description

Manufacturer Code: TB3CDK2DHUE

Overview

Startech Thunderbolt 3 Dock with USB-C Host Compatibility, Dual 4K 60Hz DisplayPort 1.4 or Dual HDMI 2.0 Monitors, Single 8K, TB3/USB-C Laptop Docking Station, 96W PD, 5x USB, 10Gbps - 96W Power Delivery (TB3CDK2DHUE) - Docking station - USB-C 3.2 Gen 2 / is available through DCS Components. It sits within the Docking Stations category.

Key product details

• 96W Power Delivery (TB3CDK2DHUE)
• Docking station
• USB-C 3.2 Gen 2 /

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030880992

Specifications

Ports & interfaces

Connectivity technology	Wired
Host interface	Thunderbolt 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	96 W
HDMI ports quantity	2
DisplayPorts quantity	2
Combo headphone/mic port	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
DC-in jack	Yes

Network

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1

Performance

Card reader integrated	No
Data transfer rate	40 Gbit/s
Maximum digital resolution	7680 x 4320 pixels
Number of displays supported	2
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black, Grey

Power

AC input voltage	100 - 240 V
Input current	2.5 A
Output voltage	20 V
Output current	8.5 A
Compatible power plug types	EU, UK

Software

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported	Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported	Ubuntu 18.04 LTS, Ubuntu 20.04 LTS

Operational conditions

Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%

Weight & dimensions

Width	220 mm
Depth	80 mm
Height	30 mm
Weight	250 g

Packaging data

Package width	305 mm
Package depth	160 mm
Package height	110 mm
Package weight	1.1 kg

Packaging content

Cables included	AC, Thunderbolt
AC adapter included	Yes
Manual	Yes

Logistics data

Products per master (outer) case	40 pc(s)
Master (outer) case width	248 mm
Master (outer) case length	500 mm
Master (outer) case height	320 mm
Harmonized System (HS) code	84733020

Other features

Chipset	C-Media - CM6533, Genesys Logic - GL3590, Genesys Logic - GL3523, Realtek - RTD2184, Titan Ridge - JHL7440, Cypress - CCG5C
