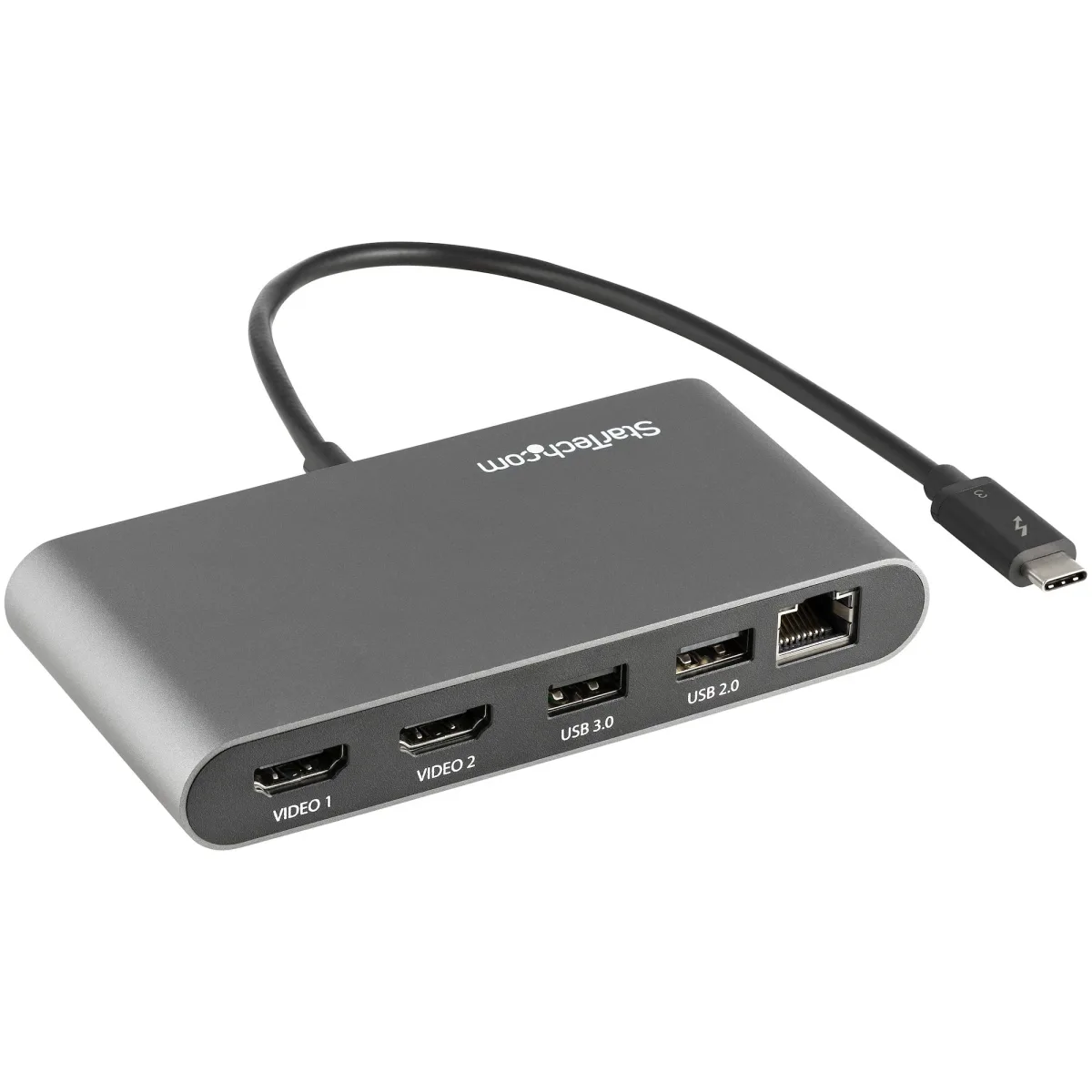

Startech Thunderbolt 3 Mini Dock - Portable Dual Monitor w/HDMI 4K 60Hz - 2X USB-A Hub (3.2/2.0), GbE - 28cm Cable - TB3 Multiport Adapter - Mac/Windows - Upgraded Version of TB3DKM2HD (TB3DKMHDL) - Docking station - Thunderbolt 3 - 2 x HDMI - 1GbE

Description

Manufacturer Code: TB3DKM2HDL

Overview

Startech Thunderbolt 3 Mini Dock - Portable Dual Monitor w/HDMI 4K 60Hz - 2X USB-A Hub (3.2/2.0), GbE - 28cm Cable - TB3 Multiport Adapter - Mac/Windows - Upgraded Version of TB3DKM2HD (TB3DKMHDL) - Docking station - Thunderbolt 3 - 2 x HDMI - 1GbE is available through DCS Components. It sits within the Docking Stations category.

Key product details

• Portable Dual Monitor w/HDMI 4K 60Hz
• 2X USB-A Hub (3.2/2.0), GbE
• 28cm Cable
• TB3 Multiport Adapter
• Mac/Windows - Upgraded Version of TB3DKM2HD (TB3DKMHDL)

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030888042

Specifications

Ports & interfaces

Connectivity technology	Wired
Host interface	Thunderbolt 3
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
HDMI ports quantity	2
Microphone in	No

Network

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Wake-on-LAN ready	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u

Performance

Card reader integrated	No
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	2
Product colour	Grey

Software

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 x64

Operational conditions

Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%

Weight & dimensions

Width	69 mm
Depth	124 mm
Height	27 mm
Weight	147.8 g

Packaging data

Package width	139 mm
Package depth	195 mm
Package height	37 mm
Package weight	270 g

Packaging content

Manual	Yes

Technical details

Compliance certificates	RoHS

Logistics data

Products per master (outer) case	24 pc(s)
Master (outer) case width	300 mm
Master (outer) case length	437 mm
Master (outer) case height	270 mm
Harmonized System (HS) code	84733020

Other features

Cable length	0.28 m
Chipset	Intel JHL6540 (Alpine Ridge), Texas Instruments TPS65983A, Parade PS176, ASMedia ASM1042A, Intel WGI210
