Manufacturer Code: TB4CDOCKUE
Overview

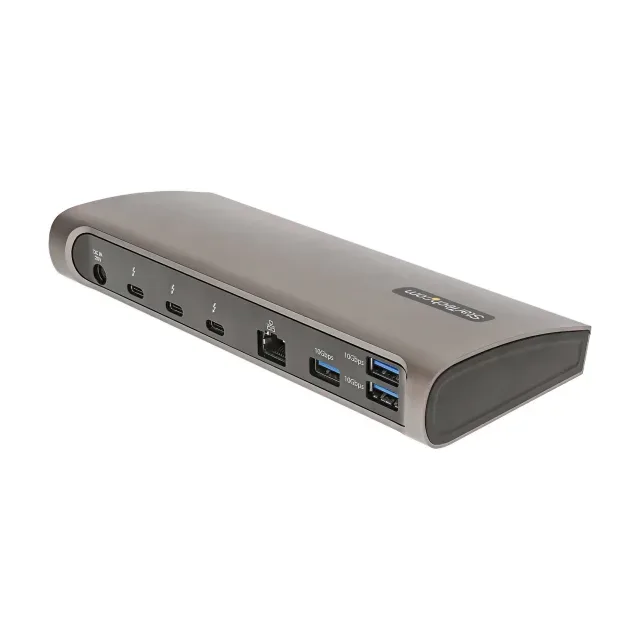

Startech Thunderbolt 4 Dock, 96W Power Delivery, Single 8K/Dual Monitor 4K 60Hz, 3xTB4/USB4 ports, 4xUSB-A, SD, GbE, Thunderbolt 4 Docking Station for Windows or TB3 MacBook, 0.8m - Docking station - Thunderbolt 4 - 3 x Thunderbolt - 1GbE - North America is available through DCS Components. It sits within the Docking Stations category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030895064
| Connectivity technology | Wired |
|---|---|
| Host interface | Thunderbolt 4 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 96 W |
| Thunderbolt 4 ports quantity | 3 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Card reader integrated | Yes |
|---|---|
| Compatible memory cards | MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| HD type | 8K Ultra HD |
| Number of displays supported | 2 |
| Maximum refresh rate | 60 Hz |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black, Grey |
| LED indicators | Yes |
| Housing material | Aluminium, Plastic |
| Compatible power plug types | EU |
|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64 |
|---|---|
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Width | 194 mm |
|---|---|
| Depth | 84 mm |
| Height | 29 mm |
| Weight | 1 kg |
| Package width | 230 mm |
|---|---|
| Package depth | 145 mm |
| Package height | 90 mm |
| Package weight | 1.1 kg |
| Cables included | Thunderbolt |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
| Compliance certificates | CE, RoHS |
|---|
| Products per master (outer) case | 8 pc(s) |
|---|---|
| Master (outer) case width | 380 mm |
| Master (outer) case length | 305 mm |
| Master (outer) case height | 265 mm |
| Harmonized System (HS) code | 84733020 |
| Cable length | 0.8 m |
|---|---|
| Chipset | Intel - JHL8440, Cypress - CYUSB4357, Parade - FL5801, Parade - FL5801, Cypress - CYPD5235, Realtek - RTL8153B, Realtek - ALC4042, Genesys Logic - GL3226 |
