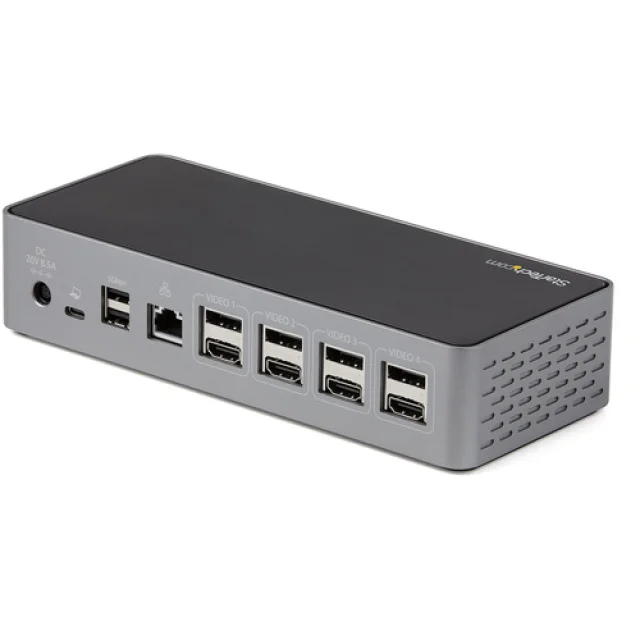

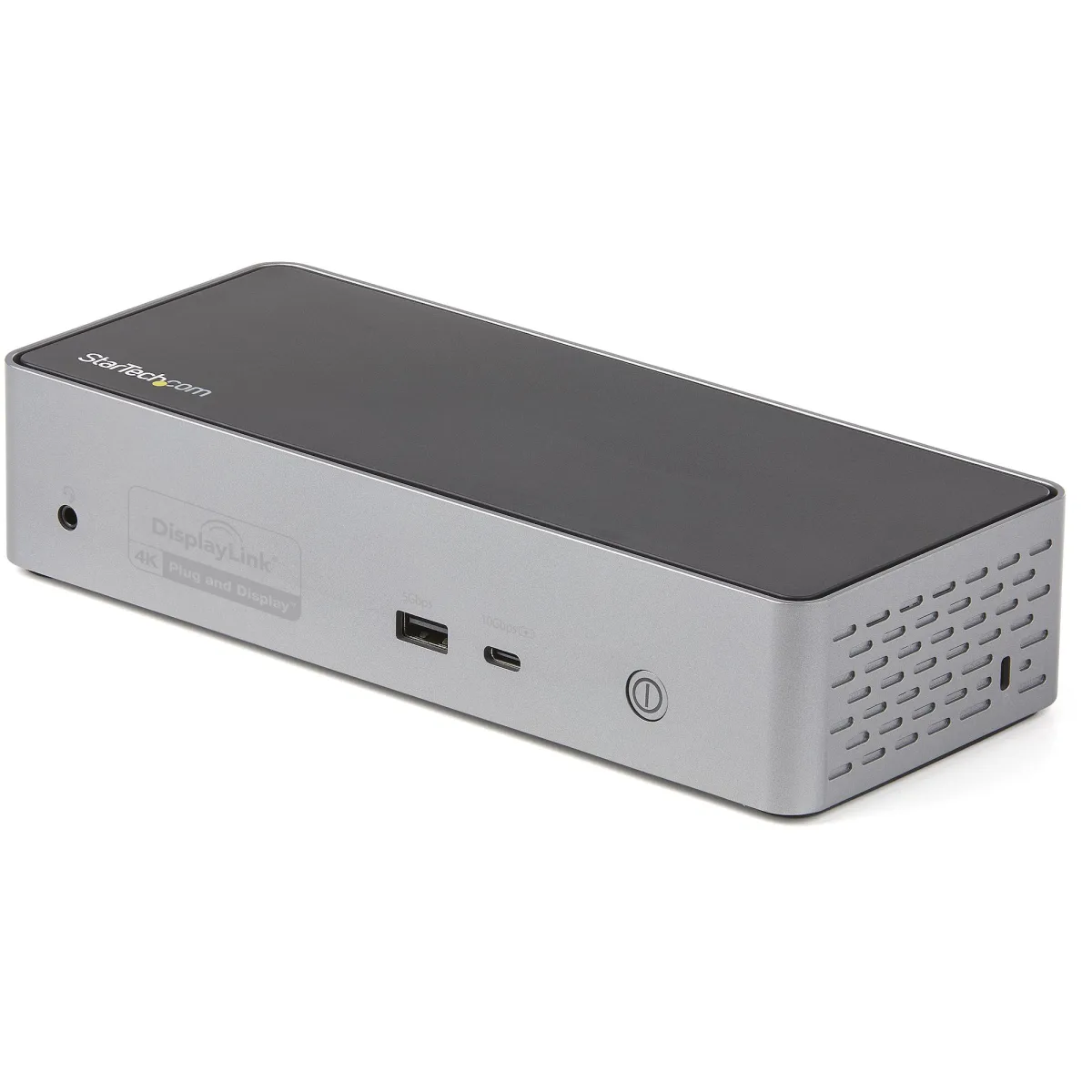

Startech USB-C Dock, 4K 60Hz Quad Monitor DisplayPort & HDMI, Universal USB C Docking Station with 100W Power Delivery Charging, USB Hub w/ 1x USB Type-C & 3x USB-A, Ethernet, Audio - Thunderbolt 3 Compatible (DK31C4DPPDUE) - Docking station - USB-C 3.2 Gen 2 / Thunderbolt 3 - 4 x DP, 4 x HDMI - 1GbE - United Kingdom, Europe

Description

Manufacturer Code: DK31C4DPPDUE

Overview

Startech USB-C Dock, 4K 60Hz Quad Monitor DisplayPort & HDMI, Universal USB C Docking Station with 100W Power Delivery Charging, USB Hub w/ 1x USB Type-C & 3x USB-A, Ethernet, Audio - Thunderbolt 3 Compatible (DK31C4DPPDUE) - Docking station - USB-C 3.2 G is available through DCS Components. It sits within the Docking Stations category.

Key product details

• Thunderbolt 3 Compatible (DK31C4DPPDUE)
• Docking station
• USB-C 3.2 G

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030876278

Specifications

Ports & interfaces

Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
HDMI ports quantity	4
HDMI version	2.0
DisplayPorts quantity	4
DisplayPort version	1.2
Combo headphone/mic port	Yes
Headphone connectivity	3.5 mm
DC-in jack	Yes

Network

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Wake-on-LAN ready	Yes

Performance

Card reader integrated	No
Data transfer rate	10 Gbit/s
Maximum digital resolution	5120 x 2880 pixels
Maximum refresh rate	60 Hz
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black, Grey
LED indicators	Yes

Power

AC input voltage	100 - 240 V
Output voltage	20 V
Output current	8.5 A
Compatible power plug types	EU, UK

Software

Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 x64
Mac operating systems supported	Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Other operating systems supported	ChromeOS

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%

Weight & dimensions

Width	90 mm
Depth	215 mm
Height	46 mm
Weight	330 g

Packaging data

Package width	145 mm
Package depth	233 mm
Package height	100 mm
Package weight	360 g

Packaging content

Cables included	USB
AC adapter included	Yes
Manual	Yes

Technical details

Compliance certificates	CE

Logistics data

Products per master (outer) case	4 pc(s)
Master (outer) case width	240 mm
Master (outer) case length	410 mm
Master (outer) case height	160 mm
Harmonized System (HS) code	84733020

Other features

Chipset	DisplayLink - DL6910, Realtek - RTS5423, Realtek - RTS5411/RTS5411E, Realtek - RTL8153
