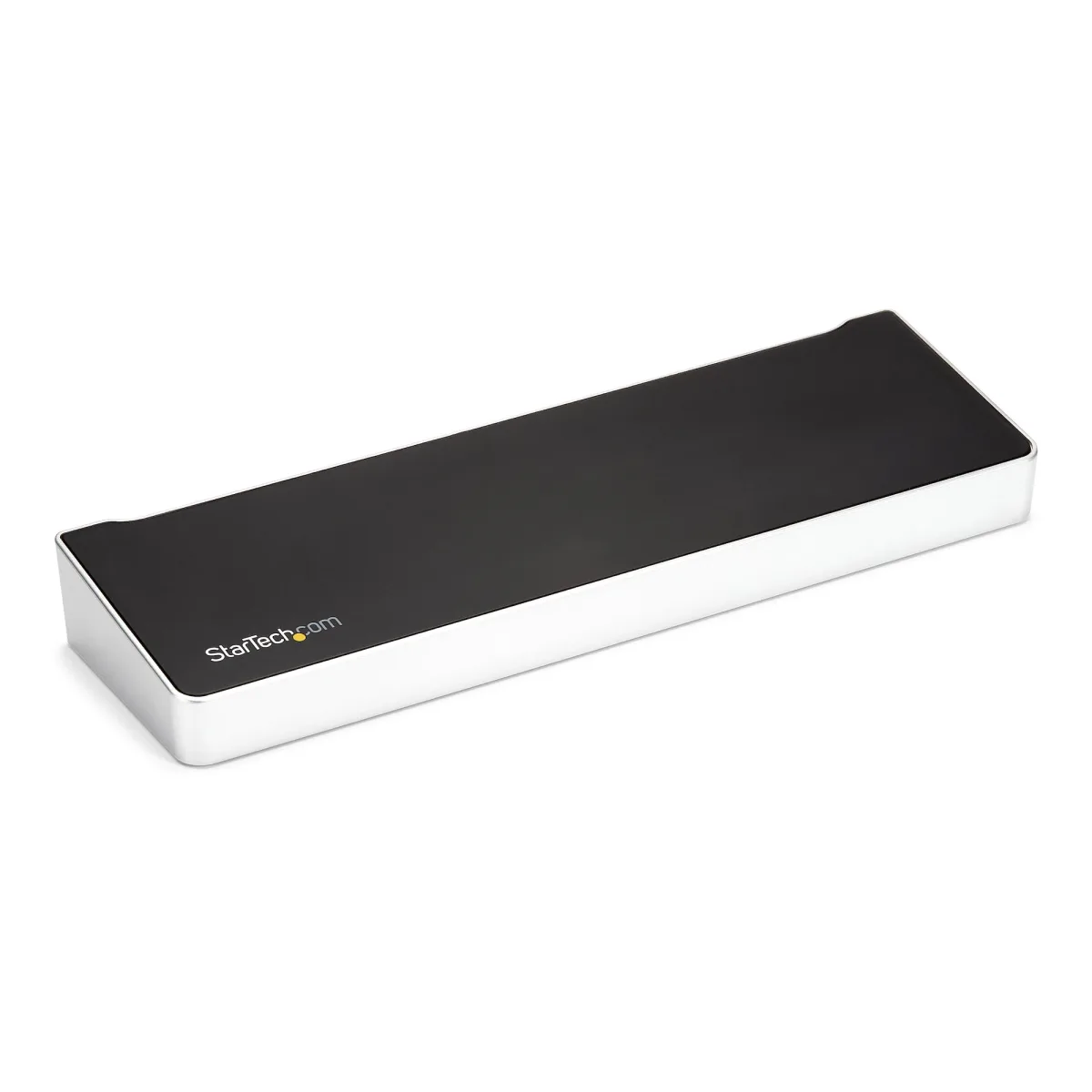

Startech USB-C Dock, 4K Triple Monitor USB Type-C Docking Station with Dual DisplayPort & HDMI, 100W Power Delivery + Charging, USB 3.0/3.1 Gen 1 Hub (1x USB-C + 4x USB-A) w/ Ethernet - 100W PD Laptop Dock (DK30CH2DEPUE) - Docking station - USB-C - HDMI, DP - 1GbE - 100 Watt - TAA Compliant - United Kingdom, Europe

Description

Manufacturer Code: DK30CH2DEPUE

Overview

Startech USB-C Dock, 4K Triple Monitor USB Type-C Docking Station with Dual DisplayPort & HDMI, 100W Power Delivery + Charging, USB 3.0/3.1 Gen 1 Hub (1x USB-C + 4x USB-A) w/ Ethernet - 100W PD Laptop Dock (DK30CH2DEPUE) - Docking station - USB-C - HDMI, is available through DCS Components. It sits within the Docking Stations category.

Key product details

• 100W PD Laptop Dock (DK30CH2DEPUE)
• Docking station
• USB-C
• HDMI,

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030880015

Specifications

Ports & interfaces

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
HDMI ports quantity	1
DisplayPorts quantity	2
Microphone in	Yes
Combo headphone/mic port	Yes
Headphone outputs	2
Headphone connectivity	3.5 mm
DC-in jack	Yes

Network

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X	Yes
Full duplex	Yes

Performance

Card reader integrated	No
Data transfer rate	5 Gbit/s
Maximum digital resolution	5120 x 2880 pixels
Cable lock slot	Yes
Product colour	Black, Silver
On/off switch	Yes
UASP support	Yes
Rubber feet	Yes
Housing material	Plastic
Certification	CE, FCC, TAA, REACH

Power

AC input voltage	100 - 240 V
Input current	2.5 A
Power supply	100 W
Output voltage	20 V
Output current	7.5 A
Power plug type	Type N
Compatible power plug types	EU, UK

Software

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac compatibility	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura
Other operating systems supported	ChromeOS

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 70%

Weight & dimensions

Width	82 mm
Depth	270 mm
Height	34 mm
Weight	382 g

Packaging data

Package width	160 mm
Package depth	320 mm
Package height	80 mm
Package weight	1.7 kg

Packaging content

Cables included	USB Type-C
AC adapter included	Yes
Manual	Yes

Technical details

Compliance certificates	RoHS

Logistics data

Products per master (outer) case	8 pc(s)
Master (outer) case width	365 mm
Master (outer) case length	370 mm
Master (outer) case height	370 mm
Harmonized System (HS) code	84733020

Other features

Chipset	DisplayLink - DL-6950, Genesys Logic - GL3523, Genesys Logic - GL3523S, Texas Instruments - TPS65982, Parade Technologies - PS176
