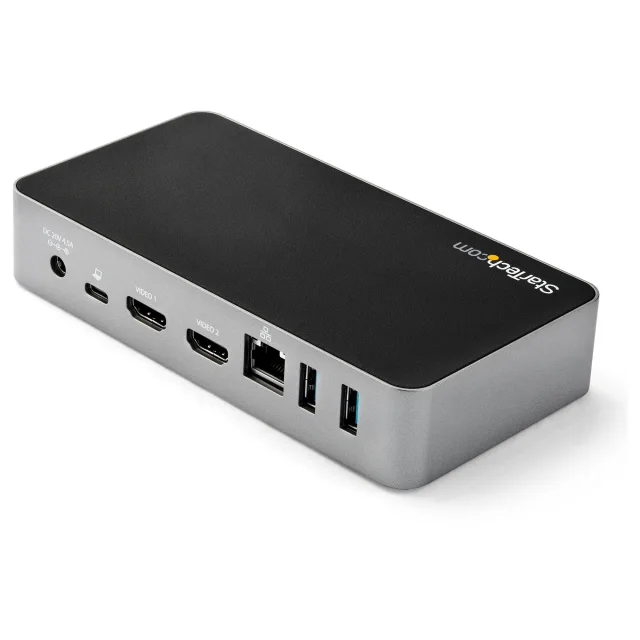

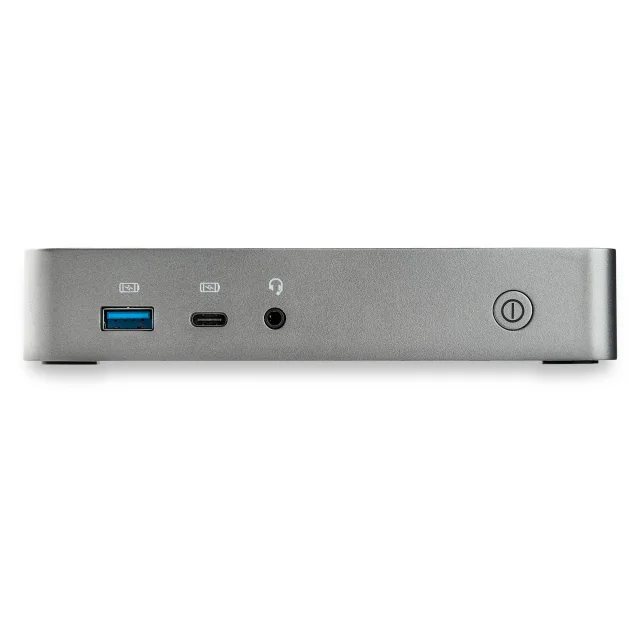

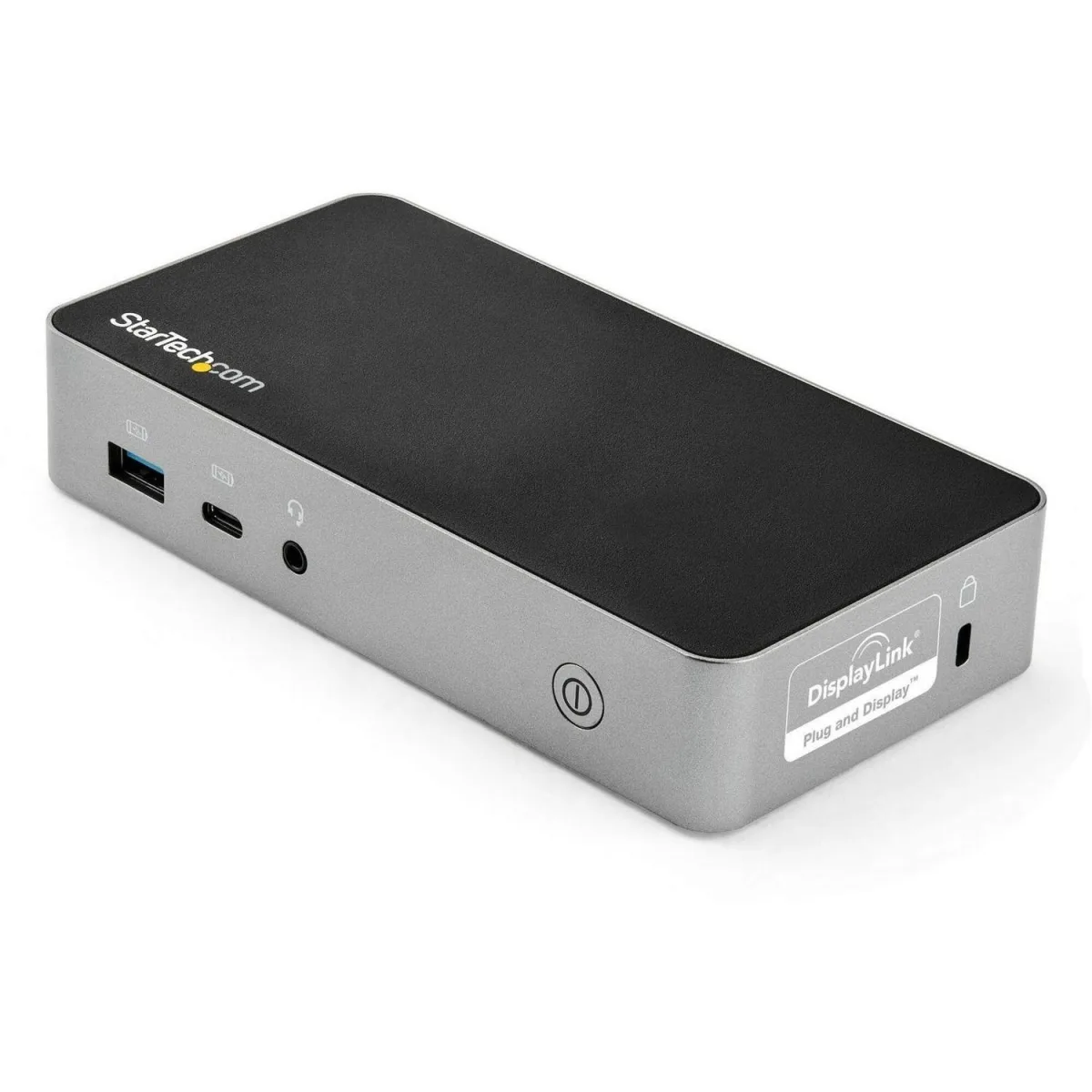

Startech USB-C Dock, Dual Monitor 1080p HDMI Laptop Docking Station, 60W Power Delivery, 1x USB-C, 3x USB-A, Ethernet, Dual HDMI Video Display USB 3.1 Gen 1 Type-C Dock, Mac & Windows - 60W PD With Charging (DK30CHHPDUK) - Docking station - USB-C 3.1 - 2 x HDMI - 1GbE - 90 Watt - United Kingdom

Description

Manufacturer Code: DK30CHHPDUK

Overview

Startech USB-C Dock, Dual Monitor 1080p HDMI Laptop Docking Station, 60W Power Delivery, 1x USB-C, 3x USB-A, Ethernet, Dual HDMI Video Display USB 3.1 Gen 1 Type-C Dock, Mac & Windows - 60W PD With Charging (DK30CHHPDUK) - Docking station - USB-C 3.1 - 2 is available through DCS Components. It sits within the Docking Stations category.

Key product details

• 60W PD With Charging (DK30CHHPDUK)
• Docking station
• USB-C 3.1
• 2

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030883481

Specifications

Ports & interfaces

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	60 W
HDMI ports quantity	2
Combo headphone/mic port	Yes
Headphone outputs	1
DC-in jack	Yes

Network

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Full duplex	No

Performance

Card reader integrated	No
Data transfer rate	5 Gbit/s
Maximum digital resolution	1920 x 1200 pixels
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black, Silver
On/off switch	Yes
UASP support	Yes
Certification	CE, FCC, REACH

Power

AC input voltage	100 - 240 V
Input current	1.5 A
Output voltage	20 V
Output current	4.5 A
Power plug type	Type N
Compatible power plug types	UK

Software

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
Other operating systems supported	ChromeOS

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%

Weight & dimensions

Width	80 mm
Depth	155 mm
Height	30 mm
Weight	310 g

Packaging data

Package width	145 mm
Package depth	234 mm
Package height	82 mm
Package weight	1.07 kg

Packaging content

Cables included	USB Type-C
AC adapter included	Yes
Quick start guide	Yes

Technical details

Compliance certificates	RoHS

Logistics data

Products per master (outer) case	4 pc(s)
Master (outer) case width	245 mm
Master (outer) case length	345 mm
Master (outer) case height	165 mm
Harmonized System (HS) code	84733020

Other features

Chipset	DisplayLink DL3900, Realtek RTS5423, Realtek RTS5411E
