Manufacturer Code: DK31C2DHSPDUE
Overview

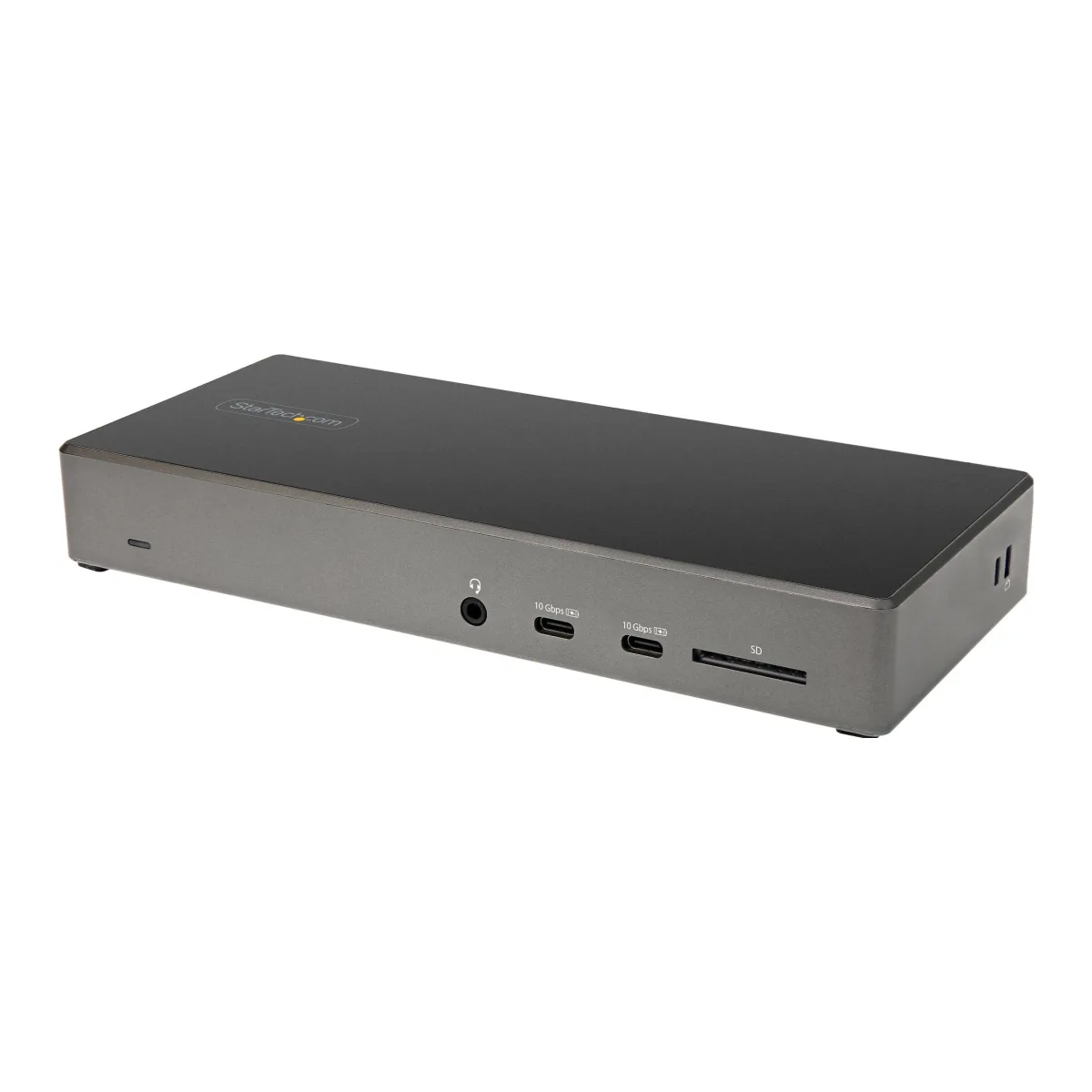

Startech USB C Dock - Triple 4K Monitor USB Type-C Docking Station - 100W Power Delivery - DP 1.4 Alt Mode & DSC, 2x DisplayPort 1.4/HDMI 2.0 - 6xUSB (2x 10Gbps) - Windows/Chrome - Docking station - USB-C - HDMI, 2 x DP - 1GbE - 100 Watt - United Kingdom, is available through DCS Components. It sits within the Docking Stations category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030891639
| Connectivity technology | Wired |
|---|---|
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u |
| Card reader integrated | Yes |
|---|---|
| Compatible memory cards | MMC, SD |
| Data transfer rate | 10 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 3 |
| Maximum refresh rate | 60 Hz |
| Cable lock slot | Yes |
| Product colour | Black, Grey |
| LED indicators | Yes |
| Certification | CE, FCC, RoHS |
| AC input voltage | 100 - 240 V |
|---|---|
| Power plug type | Type M |
| Compatible power plug types | EU, UK |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
|---|---|
| Mobile operating systems supported | Android 10, Android 9.0, iPadOS |
| Other operating systems supported | ChromeOS |
| Width | 210 mm |
|---|---|
| Depth | 90 mm |
| Height | 30 mm |
| Weight | 300 g |
| Package width | 270 mm |
|---|---|
| Package depth | 150 mm |
| Package height | 94 mm |
| Package weight | 1.4 kg |
| Cables included | USB Type-C to USB Type-C |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
| Products per master (outer) case | 4 pc(s) |
|---|---|
| Master (outer) case width | 390 mm |
| Master (outer) case length | 282 mm |
| Master (outer) case height | 195 mm |
| Harmonized System (HS) code | 84733020 |
| Chipset | Cypress - CYPD4236, Synaptics - VMM5320BJG-R |
|---|
