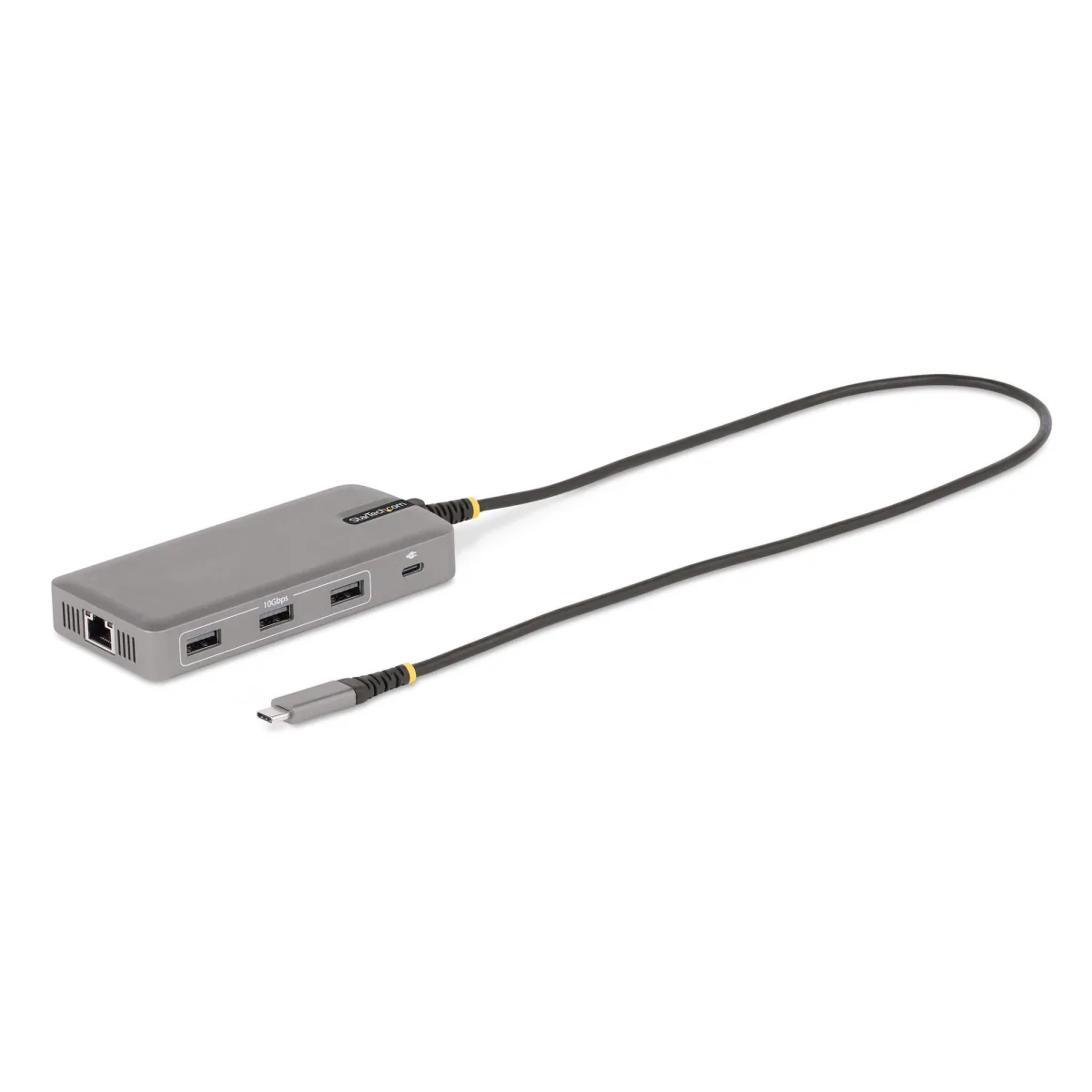

Startech USB-C Triple-Monitor Multiport Adapter, Dual 4K 60Hz + 4k 30Hz HDMI & DisplayPort, 3-Port USB 10Gbps Hub, 100W Power Delivery Pass-Through, GbE, 2ft Cable, Mini Dock - Travel Laptop Docking Station (117B-USBC-MULTIPORT) - Docking station - USB-C 3.2 Gen 2 / Thunderbolt 3 / Thunderbolt 4 - 2 x HDMI, 2 x DP - 1GbE

Description

Manufacturer Code: 117B-USBC-MULTIPORT

Overview

Startech USB-C Triple-Monitor Multiport Adapter, Dual 4K 60Hz + 4k 30Hz HDMI & DisplayPort, 3-Port USB 10Gbps Hub, 100W Power Delivery Pass-Through, GbE, 2ft Cable, Mini Dock - Travel Laptop Docking Station (117B-USBC-MULTIPORT) - Docking station - USB-C is available through DCS Components. It sits within the Docking Stations category.

Key product details

• Travel Laptop Docking Station (117B-USBC-MULTIPORT)
• Docking station
• USB-C

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030896078

Specifications

Ports & interfaces

Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
HDMI ports quantity	2
HDMI version	2.0b
DisplayPorts quantity	2
DisplayPort version	1.4
Microphone in	No

Network

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Wake-on-LAN ready	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplex	Yes

Performance

Card reader integrated	No
Data transfer rate	10 Gbit/s
HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	3
Maximum refresh rate	60 Hz
Product colour	Grey
LED indicators	Yes
UASP support	Yes
Housing material	Plastic

Power

Power source type	USB
Power consumption (typical)	15 W
USB cable length	0.6 m

Software

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Other operating systems supported

ChromeOS

Operational conditions

Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 90%

Sustainability

Sustainability compliance	Yes

Weight & dimensions

Width	56 mm
Depth	122 mm
Height	18 mm
Weight	113 g

Packaging data

Package width	124 mm
Package depth	241 mm
Package height	32 mm
Package weight	210 g

Packaging content

Quick start guide	Yes

Technical details

Compliance certificates	CE, Federal Communications Commission (FCC), RoHS

Logistics data

Products per master (outer) case	24 pc(s)
Master (outer) case width	290 mm
Master (outer) case length	530 mm
Master (outer) case height	235 mm

Other features

Chipset	Parade - PS8469, Synaptics - VMM5322, VIA - VL822, VIA - VL103, Realtek - RTL8153
