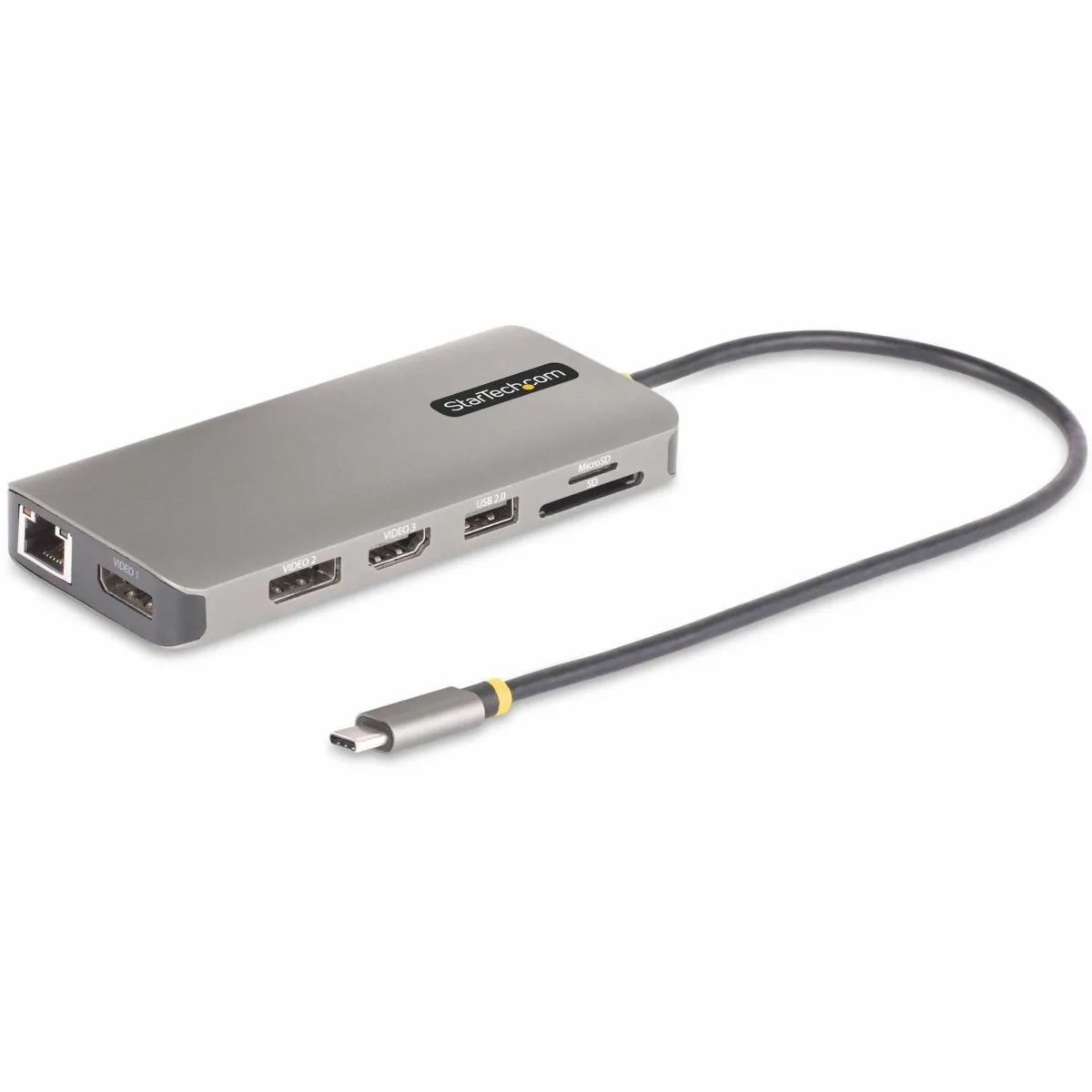

Startech USB-C Triple-Monitor Multiport Adapter, HDMI/DP/Card Reader - Docking station - USB-C 3.2 Gen 1 / Thunderbolt 3 / Thunderbolt 4 - HDMI, 2 x DP - 1GbE

Description

Manufacturer Code: 154B-USBC-MULTIPORT

Overview

Startech USB-C Triple-Monitor Multiport Adapter, HDMI/DP/Card Reader - Docking station - USB-C 3.2 Gen 1 / Thunderbolt 3 / Thunderbolt 4 - HDMI, 2 x DP - 1GbE is available through DCS Components. It sits within the Docking Stations category.

Key product details

• Docking station
• USB-C 3.2 Gen 1 / Thunderbolt 3 / Thunderbolt 4
• HDMI, 2 x DP
• 1GbE

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030899499

Specifications

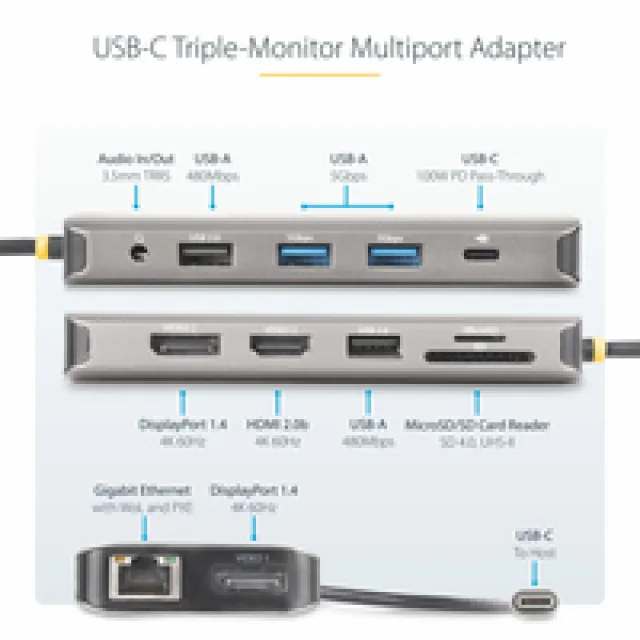

Ports & interfaces

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
HDMI ports quantity	1
HDMI version	2.0b
DisplayPorts quantity	2
DisplayPort version	1.4
Combo headphone/mic port	Yes
Headphone outputs	1
USB Type-C DisplayPort Alternate Mode	Yes

Network

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Wake-on-LAN ready	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplex	Yes

Performance

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD
Data transfer rate	5 Gbit/s
HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	3
Maximum refresh rate	60 Hz
Product colour	Grey
LED indicators	Activity
UASP support	Yes
Housing material	Aluminium, Plastic

Power

Power source type	USB
Power consumption (typical)	15 W
USB cable length	0.3 m

Software

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Other operating systems supported

ChromeOS

Operational conditions

Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 90%

Weight & dimensions

Width	56 mm
Depth	130 mm
Height	16 mm
Weight	106 g

Packaging data

Package width	170 mm
Package depth	142 mm
Package height	30 mm
Package weight	120 g

Packaging content

Quick start guide	Yes

Logistics data

Products per master (outer) case	24 pc(s)
Master (outer) case width	320 mm
Master (outer) case length	380 mm
Master (outer) case height	220 mm

Other features

Chipset	VIA - VL102, VIA - VL817, Synaptics - VMM5320, Realtek - RTL8153, Solid State System - SSS1700, Genesys Logic - GL823K
