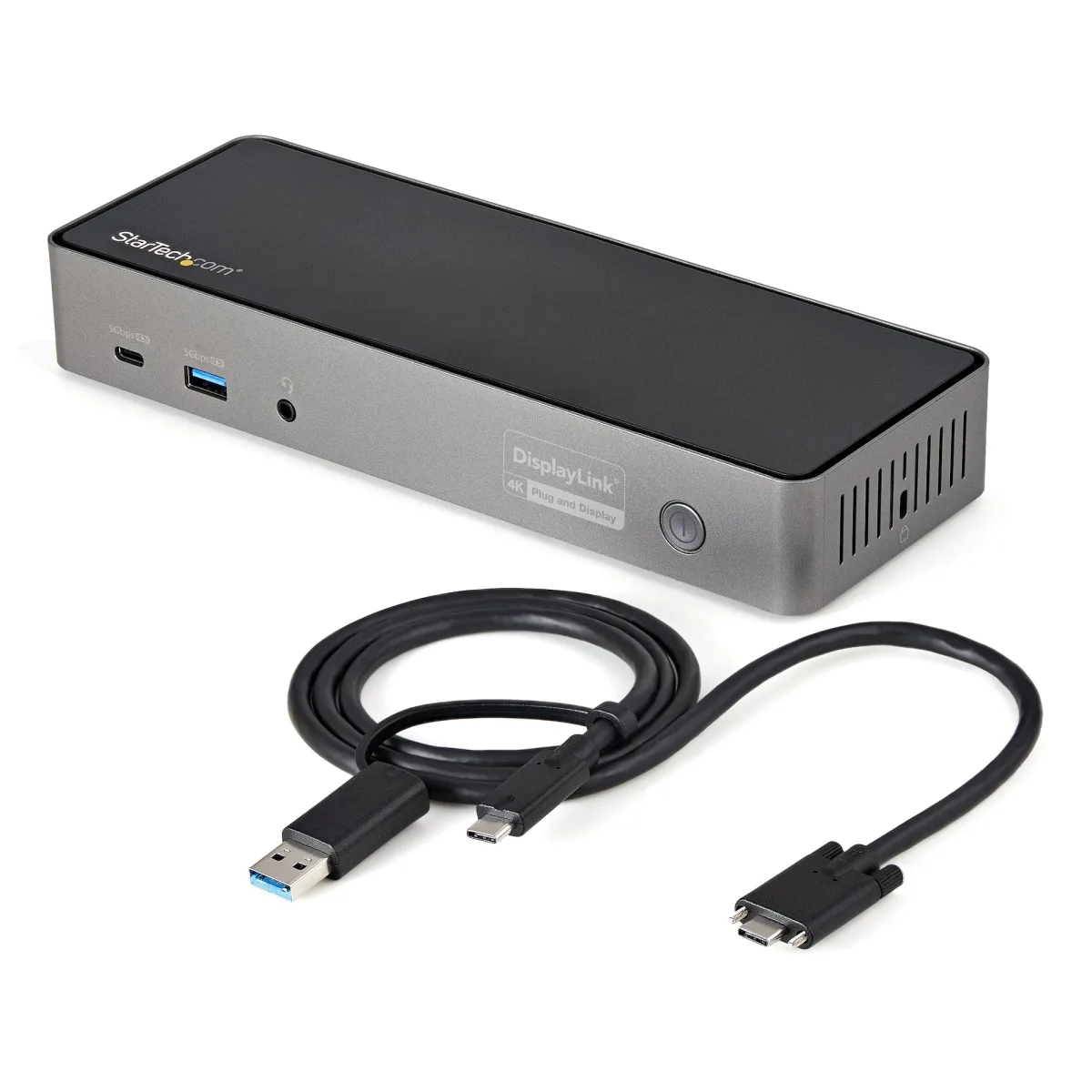

Startech USB-C & USB-A Dock, Hybrid Universal Triple Monitor Laptop Docking Station w/ DisplayPort & HDMI 4K 60Hz, 85W Power Delivery, 6x USB Hub, Ethernet, Audio, USB 3.1 Gen 2 10Gbps - Multi-Monitor Dock (DK31C3HDPDUE) - Docking station - USB-C - 3 x HDMI, 3 x DP - 1GbE - 85 Watt

Description

Manufacturer Code: DK31C3HDPDUE

Overview

Startech USB-C & USB-A Dock, Hybrid Universal Triple Monitor Laptop Docking Station w/ DisplayPort & HDMI 4K 60Hz, 85W Power Delivery, 6x USB Hub, Ethernet, Audio, USB 3.1 Gen 2 10Gbps - Multi-Monitor Dock (DK31C3HDPDUE) - Docking station - USB-C - 3 x HD is available through DCS Components. It sits within the Docking Stations category.

Key product details

• Multi-Monitor Dock (DK31C3HDPDUE)
• Docking station
• USB-C
• 3 x HD

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030881944

Specifications

Ports & interfaces

Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	85 W
HDMI ports quantity	3
HDMI version	2.0
DisplayPorts quantity	3
Combo headphone/mic port	Yes
Headphone outputs	1
DC-in jack	Yes

Network

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s

Performance

Card reader integrated	No
Data transfer rate	10 Gbit/s
Maximum digital resolution	3840 x 2160 pixels
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black, Grey
Housing material	Aluminium, Plastic
Certification	CE, FCC

Power

AC input voltage	100 - 240 V
Input current	2.5 A
Output voltage	20 V
Output current	7.5 A
Power plug type	Type M
Compatible power plug types	EU, UK

Software

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%

Weight & dimensions

Width	84 mm
Depth	233 mm
Height	37 mm
Weight	365 g

Packaging data

Package width	172 mm
Package depth	253 mm
Package height	91 mm
Package weight	1.7 kg

Packaging content

Cables included	USB Type-A to USB Type-C
AC adapter included	Yes
Quick start guide	Yes

Technical details

Compliance certificates	RoHS

Logistics data

Products per master (outer) case	6 pc(s)
Master (outer) case width	315 mm
Master (outer) case length	395 mm
Master (outer) case height	300 mm
Harmonized System (HS) code	84733020

Other features

Cable length	1 m
Chipset	Realtek RTS5423, Realtek RTS5411, Realtek RTS5412, Realtek RTS5451, Realtek RTD2142, DisplayLink DL6950
