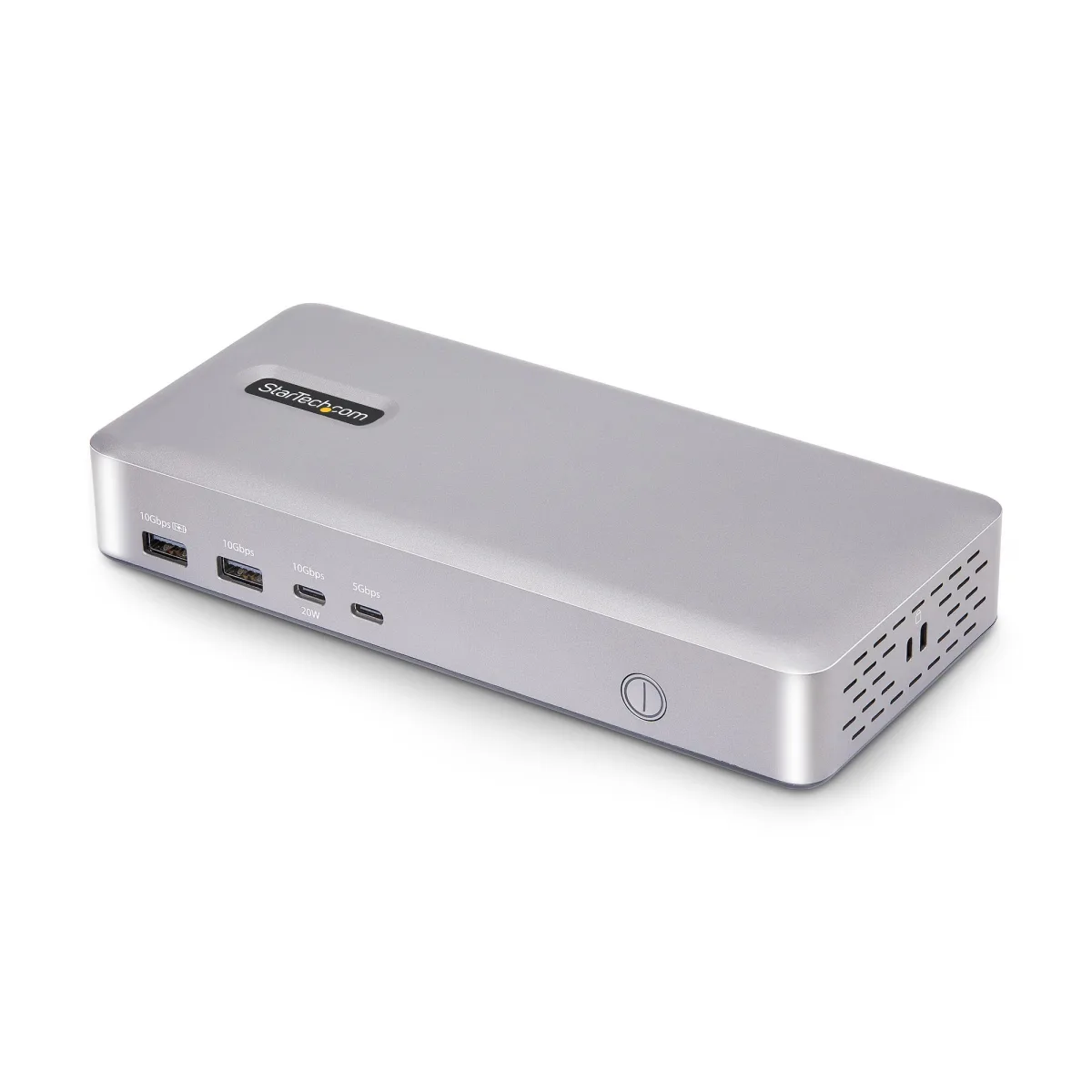

Startech USB4 Docking Station, USB-C 40Gbps, Dual Video HDMI, Up to 2x 4K 60Hz 4:4:4 (RGB) or 2x 4K 120Hz 4:2:2, Multi-Monitor Dock, 6x USB, 2.5GbE, 100W PD - Docking station - USB4 / Thunderbolt 4 - 2 x HDMI - 1GbE, 2.5GbE - 180 Watt

Description

Manufacturer Code: 155UE-USB4-DOCK

Overview

Startech USB4 Docking Station, USB-C 40Gbps, Dual Video HDMI, Up to 2x 4K 60Hz 4:4:4 (RGB) or 2x 4K 120Hz 4:2:2, Multi-Monitor Dock, 6x USB, 2.5GbE, 100W PD - Docking station - USB4 / Thunderbolt 4 - 2 x HDMI - 1GbE, 2.5GbE - 180 Watt is available through DCS Components. It sits within the Docking Stations category.

Key product details

• Docking station
• USB4 / Thunderbolt 4
• 2 x HDMI
• 1GbE, 2.5GbE
• 180 Watt

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030902878

Specifications

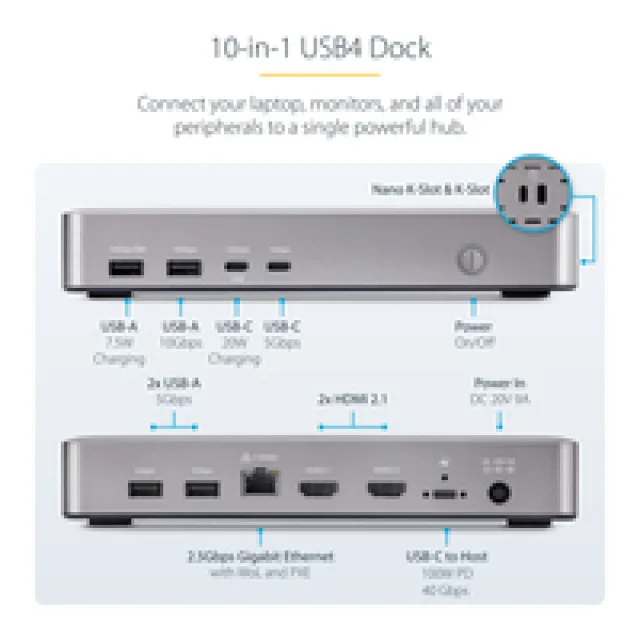

Ports & interfaces

Connectivity technology	Wired
Host interface	USB4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
HDMI ports quantity	2
Microphone in	No
DC-in jack	Yes

Network

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Wake-on-LAN ready	Yes
Full duplex	Yes

Performance

Card reader integrated	No
Data transfer rate	40 Gbit/s
HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	2
Maximum refresh rate	120 Hz
Cable lock slot	Yes
Cable lock slot type	Kensington, Nano
Product colour	Silver
On/off switch	Yes
LED indicators	Yes
UASP support	Yes
Housing material	Plastic

Power

Power source type	DC
AC input voltage	100 - 240 V
Input current	2.5 A
Output voltage	20 V
Output current	9 A
Power consumption (typical)	165 W
Power plug type	Type M
Compatible power plug types	EU, UK

Software

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Other operating systems supported	ChromeOS

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%

Weight & dimensions

Width	210 mm
Depth	95 mm
Height	34 mm
Weight	138.6 g

Packaging data

Package width	145 mm
Package depth	230 mm
Package height	89 mm
Package weight	1.3 kg

Packaging content

Cables included	USB
Quick start guide	Yes

Logistics data

Products per master (outer) case	8 pc(s)
Master (outer) case width	305 mm
Master (outer) case length	375 mm
Master (outer) case height	265 mm

Other features

Chipset	VIA - VL830, VIA - VL163, Realtek - RTD2188-VA-CG, Genesys Logic - GL9901NE
