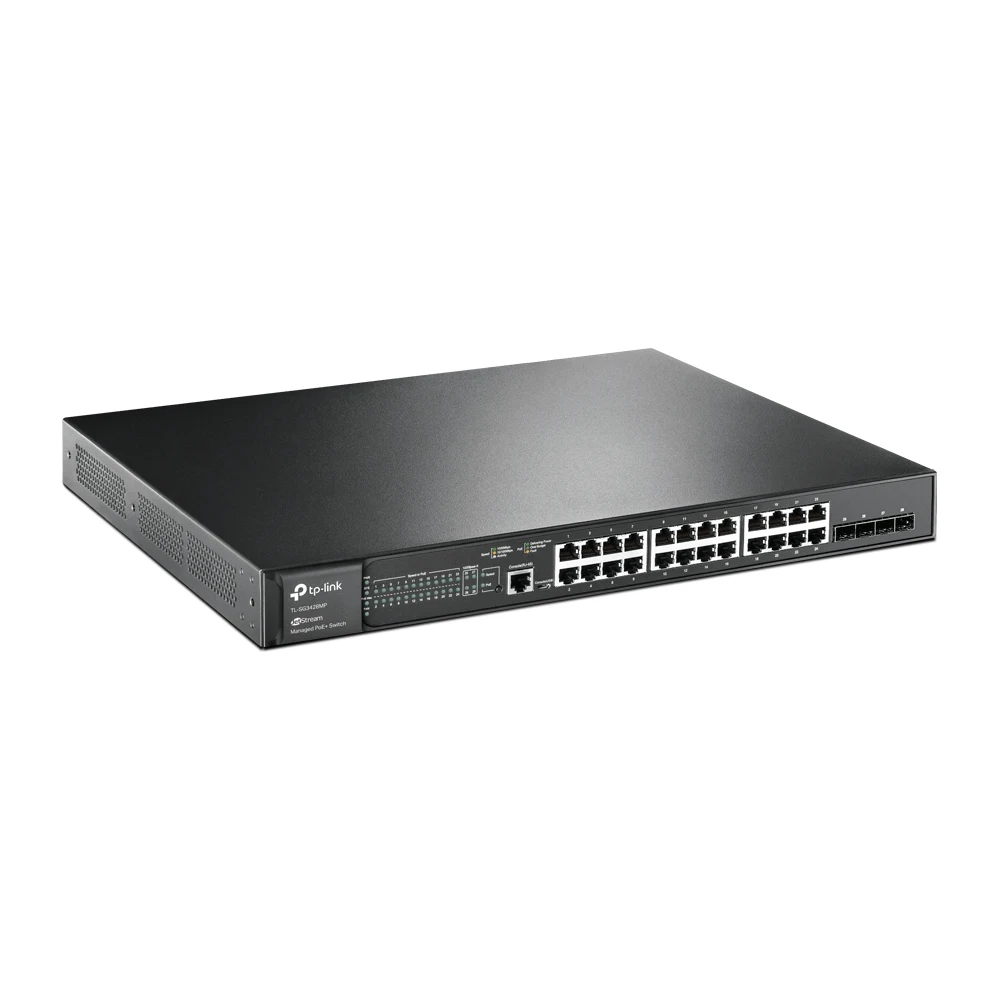

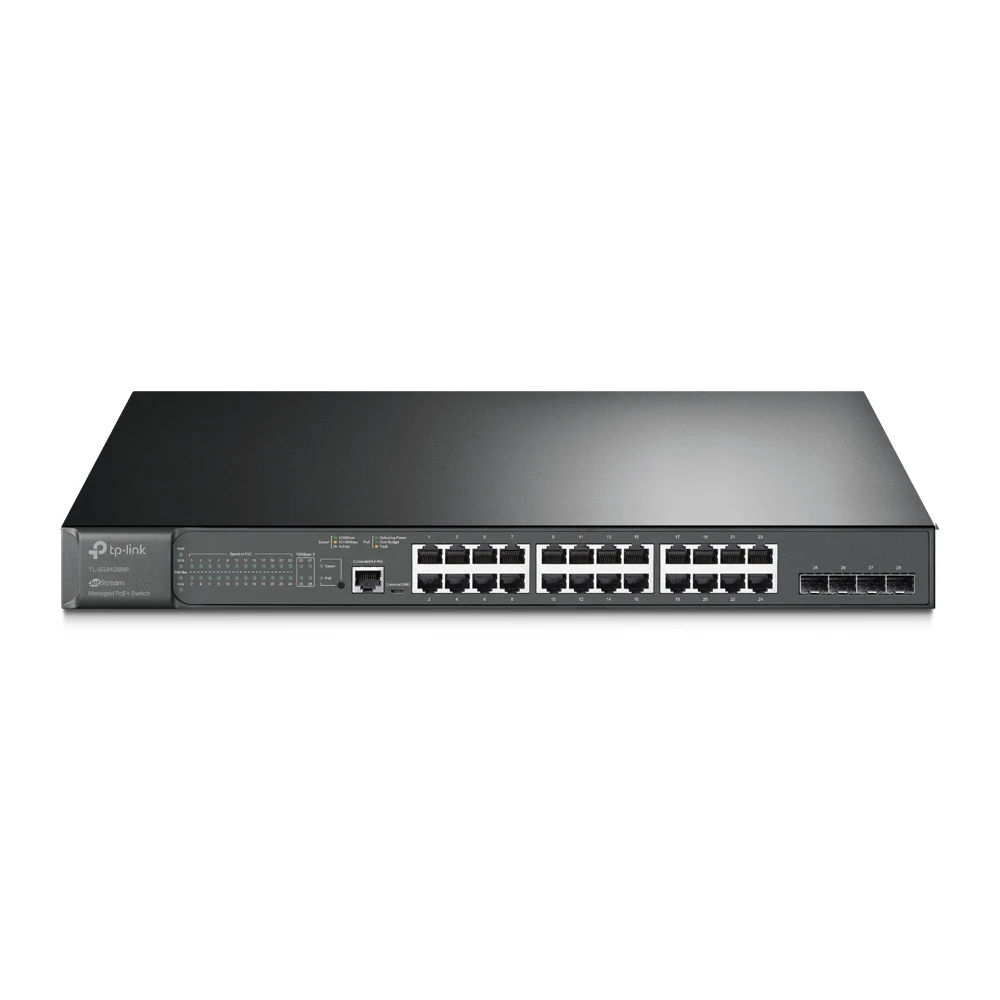

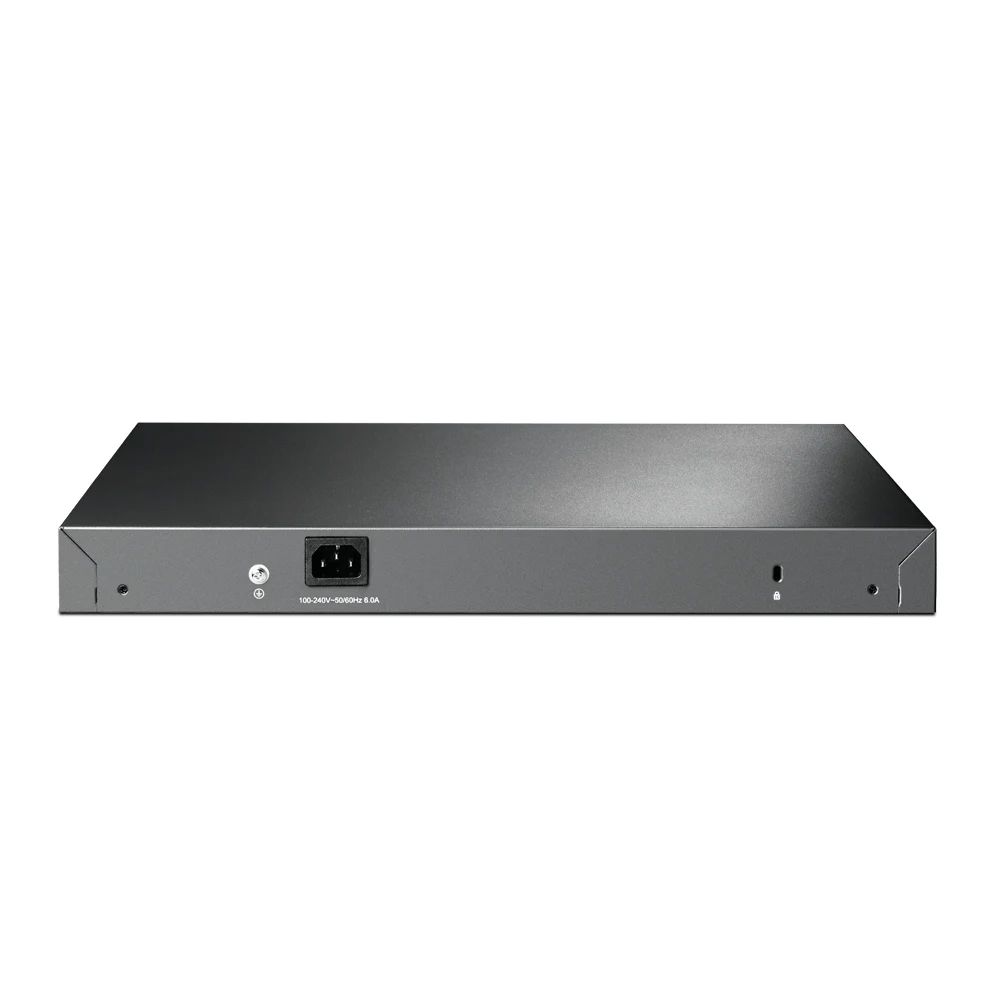

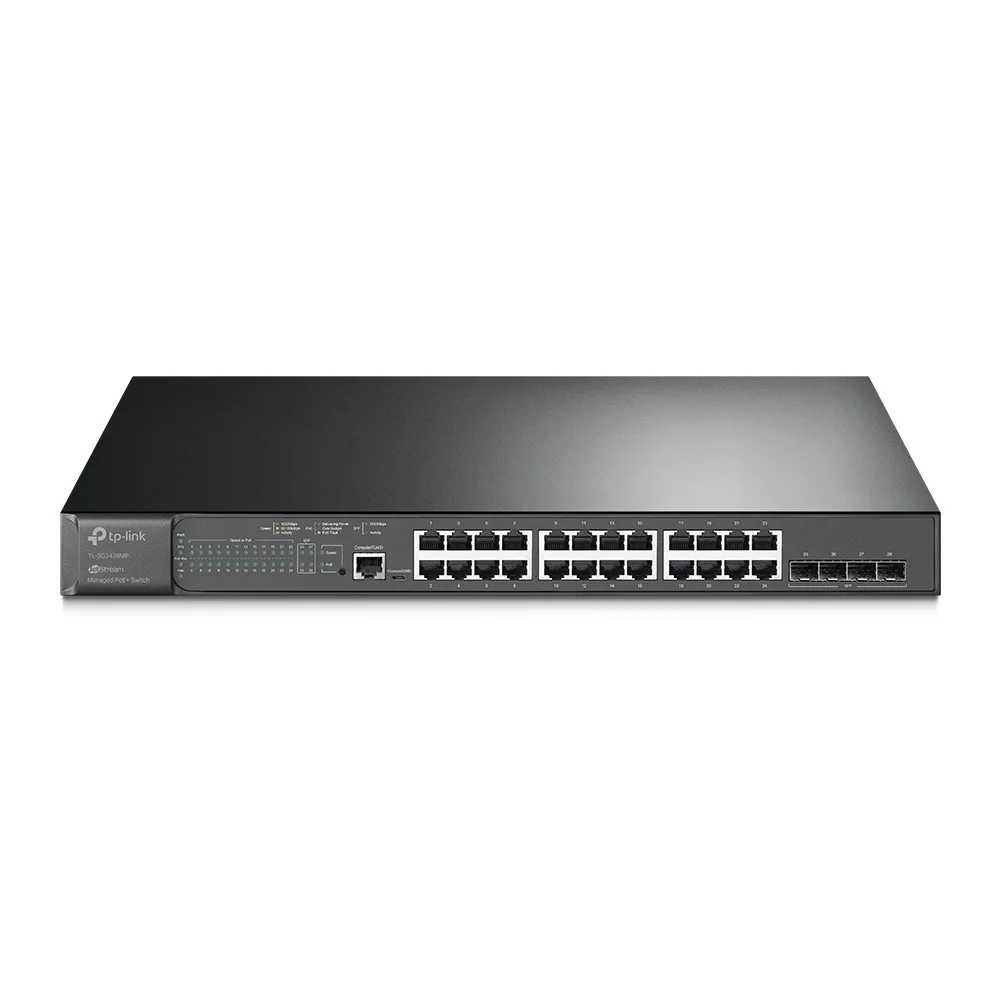

TP-Link JetStream TL-SG3428MP V6.6 - Switch - L2+ - Managed - 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - rack-mountable - PoE+ (384 W)

Other offers for this product

Save £88.87 against the highest current offer.

Description

Manufacturer Code: SG3428MP

Overview

TP-Link JetStream TL-SG3428MP V6.6 - Switch - L2+ - Managed - 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - rack-mountable - PoE+ (384 W) is available through DCS Components. It sits within the Managed Switches category.

Key product details

• Switch
• L2+
• Managed
• 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
• rack-mountable

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 6935364010744

Specifications

Management features

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
SFP module slots quantity	4
Console port	RJ-45/Micro-USB
Power connector	AC-in jack

Network

Networking standards	IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 1000BASE-T
Port mirroring	Yes
IP routing	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
Head-of-line (HOL) blocking	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Active link detection	Yes
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4000

Data transmission

Switching capacity	56 Gbit/s
Forwarding rate	41.66 Mpps
MAC address table	16000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	12 MB

Security

DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	SSH, SSL/TLS
MAC address filtering	Yes
Static port security	Yes
SSH/SSL support	Yes
Loop protection	Yes
BPDU filtering/protection	Yes
IP-MAC-Port binding	Yes
Authentication	MAC-based authentication, Port-based authentication

Multicast features

Multicast support	Yes

Protocols

Management protocols	SNMPv1/v2c/v3, LLDP/LLDP-MED
GARP VLAN Registration Protocol (GVRP)	Yes

Design

Rack mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	Yes
Number of fans	2 fan(s)

Power

Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	463.8 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	384 W

Operational conditions

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Width	440 mm
Depth	330 mm
Height	44 mm

Packaging content

Quick start guide	Yes
User guide	Yes

Packaging data

Package width	440 mm
Package depth	528 mm
Package height	100 mm
Package weight	6.08 kg

Certificates

Certification	CE, FCC, RoHS

Logistics data

Harmonized System (HS) code	85176990
