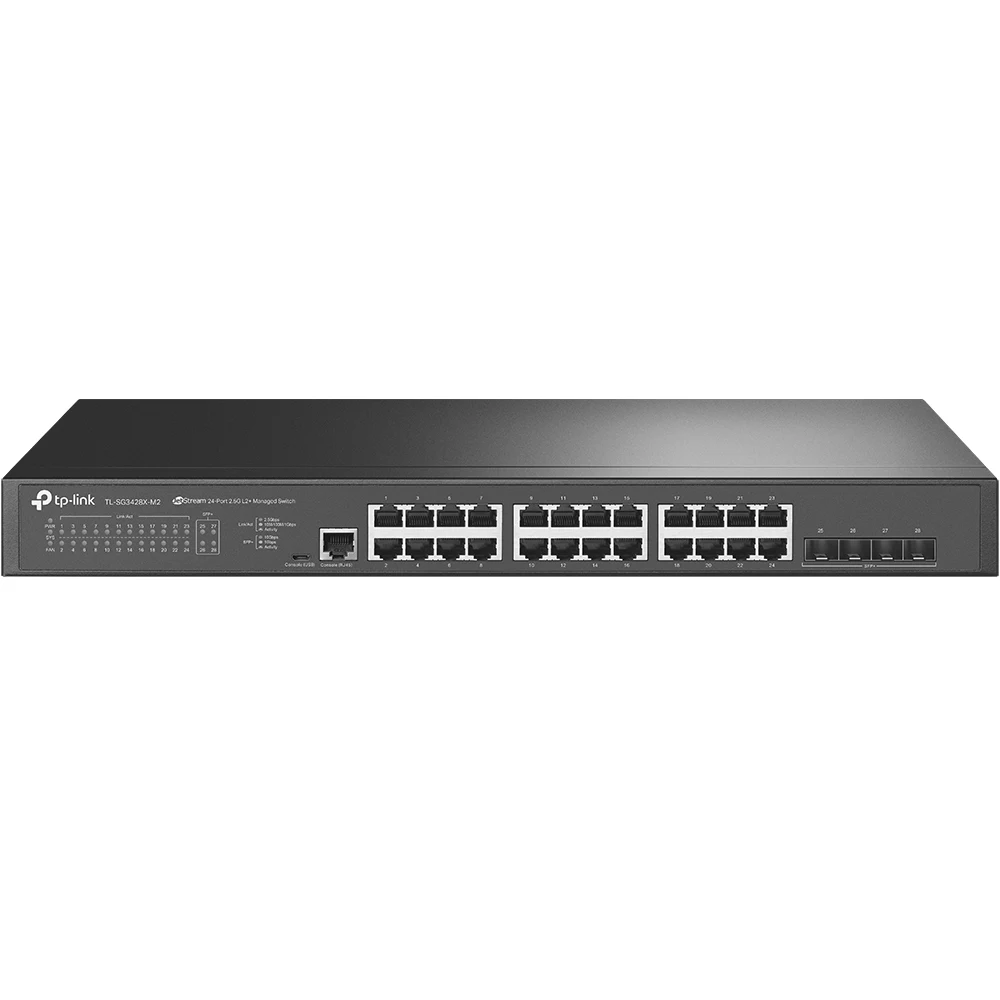

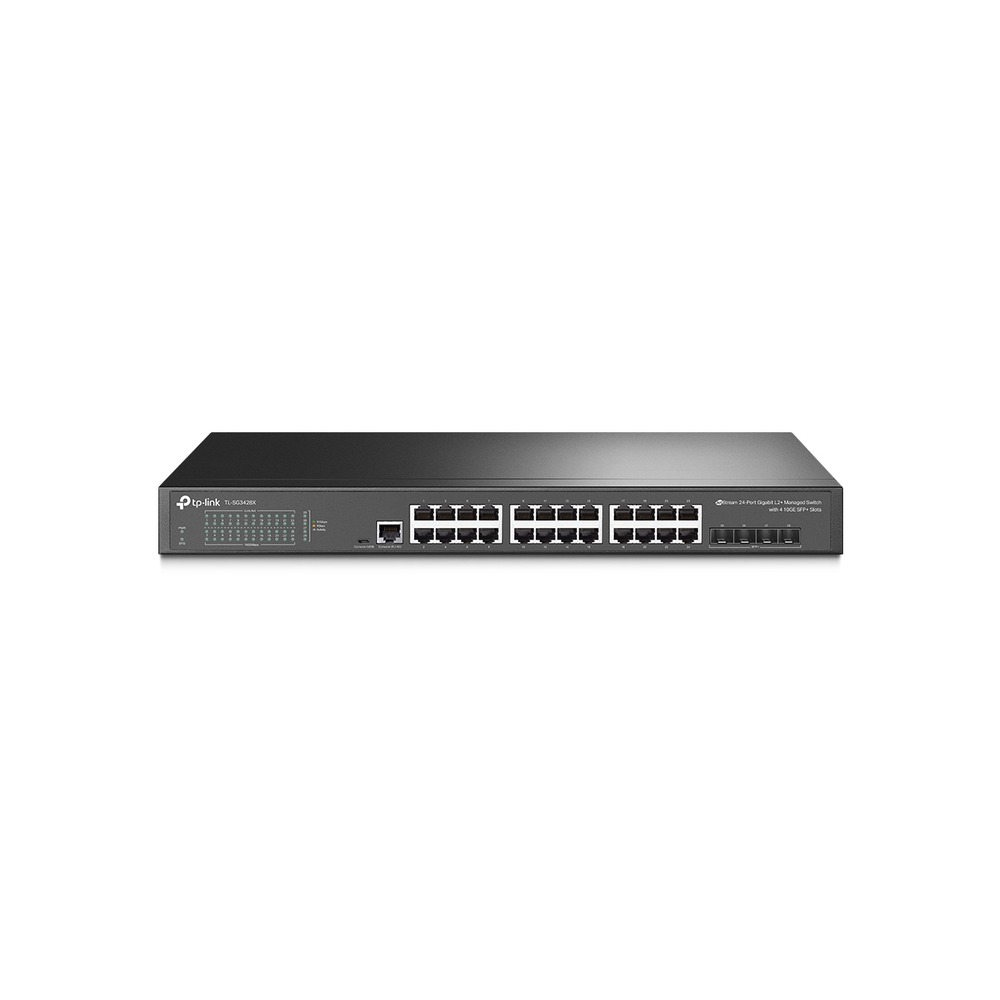

TP-Link JetStream TL-SG3428X-M2 V1.6 - Switch - L2+ - Managed - 24 x 10/100/1000/2.5G + 4 x 10 Gigabit SFP+ - rack-mountable

Description

Manufacturer Code: SG3428X-M2

Overview

TP-Link JetStream TL-SG3428X-M2 V1.6 - Switch - L2+ - Managed - 24 x 10/100/1000/2.5G + 4 x 10 Gigabit SFP+ - rack-mountable is available through DCS Components. It sits within the Managed Switches category.

Key product details

• Switch
• L2+
• Managed
• 24 x 10/100/1000/2.5G + 4 x 10 Gigabit SFP+
• rack-mountable

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 4897098689776

Specifications

Management features

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
MIB support	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity	24
SFP+ module slots quantity	4
Console port	RJ-45/Micro-USB
Power connector	AC-in jack

Network

Networking standards	IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
10G support	Yes
Port mirroring	Yes
Policy-based routing	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
Head-of-line (HOL) blocking	Yes
Active link detection	Yes
IPv4 routes	48
IPv6 routes	48
VLAN support	Yes
Virtual LAN features	Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

Data transmission

Switching capacity	200 Gbit/s
Forwarding rate	148.8 Mpps
MAC address table	32000 entries
Store-and-forward	Yes
Static route	Yes
Number of static routes	48
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	16 MB

Security

DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
SSH/SSL support	Yes
Loop protection	Yes
BPDU filtering/protection	Yes
IP-MAC-Port binding	Yes
Authentication	Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
Authentication type	AAA, RADIUS, TACACS+

Multicast features

Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Y

Protocols

Management protocols	SNMP v1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)	Yes
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
IPv4 FIB entries	100
IPv6 FIB entries	100

Design

Rack mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	Yes
Number of fans	1 fan(s)

Power

Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	45.1 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	No

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	154.38 BTU/h

Weight & dimensions

Width	440 mm
Depth	180 mm
Height	44 mm

Packaging content

Cables included	LAN (RJ-45)
Quick start guide	Yes

Packaging data

Package width	528 mm
Package depth	250 mm
Package height	80 mm
Package weight	3 kg

Certificates

Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certification	CE, FCC, RoHS
