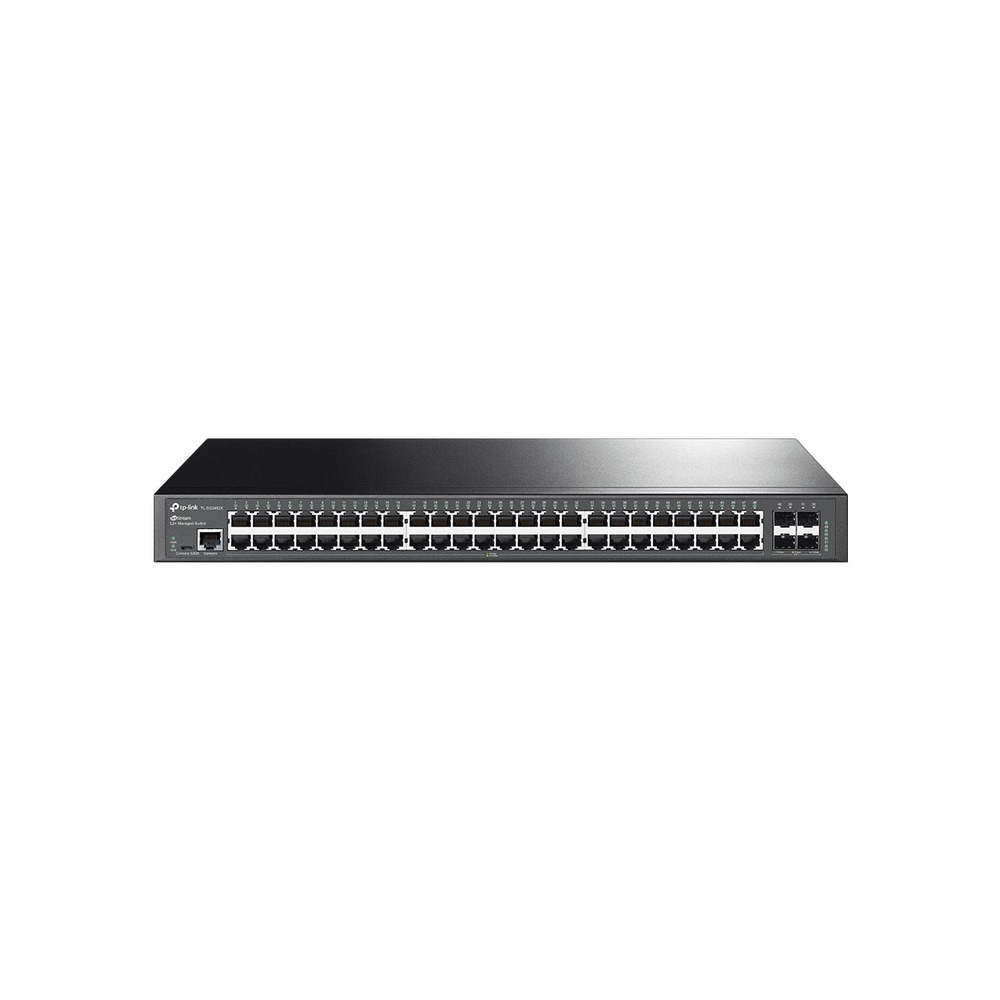

TP-Link JetStream TL-SG3452X V1.6 - Switch - L2+ - Managed - 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ - rack-mountable

Description

Manufacturer Code: SG3452X

Overview

TP-Link JetStream TL-SG3452X V1.6 - Switch - L2+ - Managed - 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ - rack-mountable is available through DCS Components. It sits within the Managed Switches category.

Key product details

• Switch
• L2+
• Managed
• 48 x 10/100/1000 + 4 x 10 Gigabit SFP+
• rack-mountable

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 6935364006488

Specifications

Management features

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
MIB support	RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618,

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
Console port	RJ-45/Micro-USB
Power connector	AC-in jack

Network

Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
10G support	Yes
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
Head-of-line (HOL) blocking	Yes
IPv4 routes	48
IPv6 routes	48
VLAN support	Yes
Virtual LAN features	Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Number of VLANs	4000

Data transmission

Switching capacity	176 Gbit/s
Forwarding rate	130.9 Mpps
MAC address table	16000 entries
Static route	Yes
Number of static routes	48
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	12 MB

Security

DHCP features	DHCP client, DHCP relay, DHCP server
Access Control List (ACL)	Yes
IGMP snooping	Yes
IGMP proxy	Yes
MAC address filtering	Yes
Static port security	Yes
SSH/SSL support	Yes
Loop protection	Yes
BPDU filtering/protection	Yes
IP-MAC-Port binding	Yes
Authentication	Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
Password protection	Yes
Authentication type	AAA, RADIUS, TACACS+
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)

Multicast features

Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Y

Protocols

Management protocols	SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)	Yes
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert

Design

Rack mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	Yes
Number of fans	0 fan(s)

Power

Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	32.72 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	No

Operational conditions

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	111.65 BTU/h

Weight & dimensions

Width	440 mm
Depth	220 mm
Height	44 mm

Packaging content

Cables included	AC
Quick start guide	Yes

Packaging data

Rack rails	Yes
Package width	528 mm
Package depth	336 mm
Package height	100 mm
Package weight	4 kg

Certificates

Certification	CE, FCC, RoHS

Logistics data

Harmonized System (HS) code	85176990
