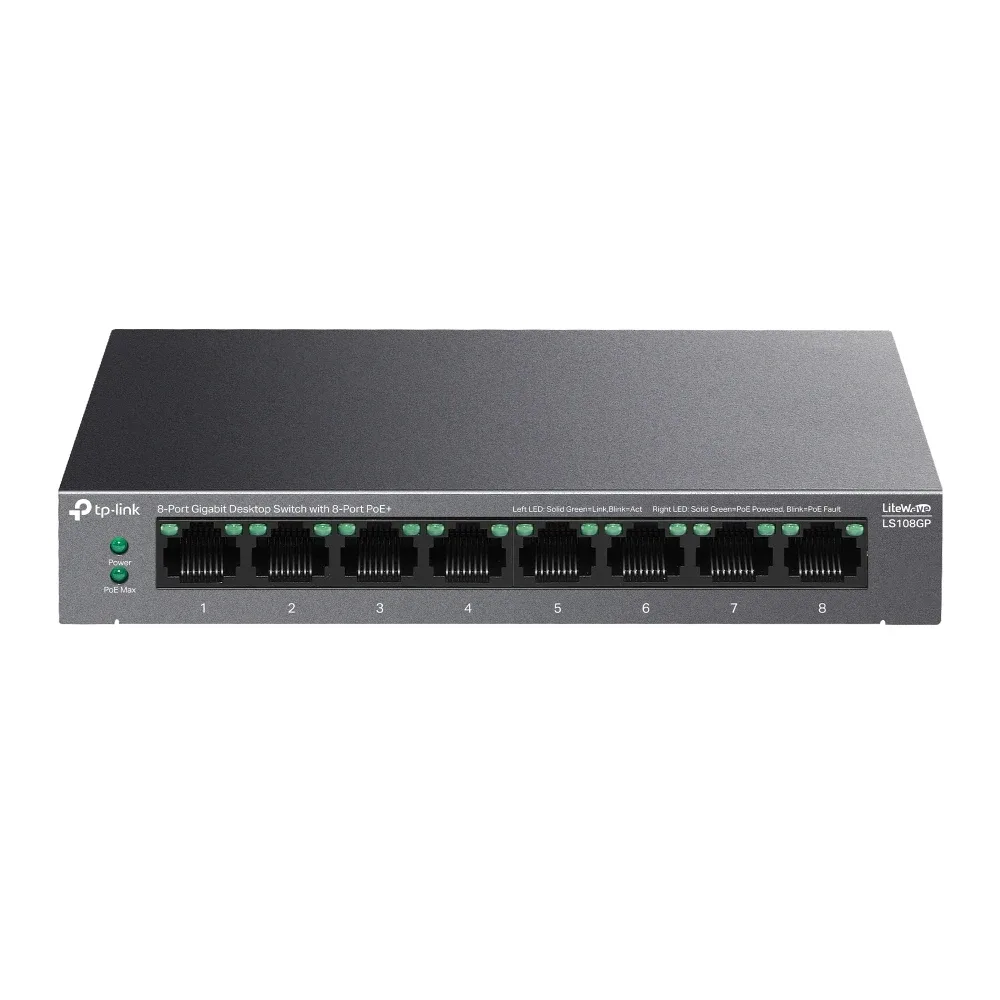

TP-Link LiteWave LS108GP V1 - Switch - 8 x 10/100/1000 (PoE+) - desktop, wall-mountable - PoE+ (62 W)

Description

Manufacturer Code: LS108GP

Overview

TP-Link LiteWave LS108GP V1 - Switch - 8 x 10/100/1000 (PoE+) - desktop, wall-mountable - PoE+ (62 W) is available through DCS Components. It sits within the Hubs & Switches category.

Key product details

• Switch
• 8 x 10/100/1000 (PoE+)
• desktop, wall-mountable
• PoE+ (62 W)

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 4895252505993

Specifications

Management features

Switch type	Unmanaged
Quality of Service (QoS) support	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack

Network

Networking standards	IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes

Data transmission

Switching capacity	16 Gbit/s
Forwarding rate	11.9 Mpps
MAC address table	4000 entries
Jumbo frames	16000

Design

Product colour	Black
LED indicators	Yes

Power

Power source	DC/PoE
Power supply included	Yes
AC input voltage	220 V
AC input frequency	50 Hz
DC input voltage	53.5 V
Input current	1.31 A
Power consumption (max)	71.61 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	62 W

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	243.47 BTU/h

Weight & dimensions

Width	158 mm
Depth	99 mm
Height	25 mm

Packaging content

User guide	Yes

Packaging data

Package type	Box

Certificates

Certification	CE, FCC, RoHS
